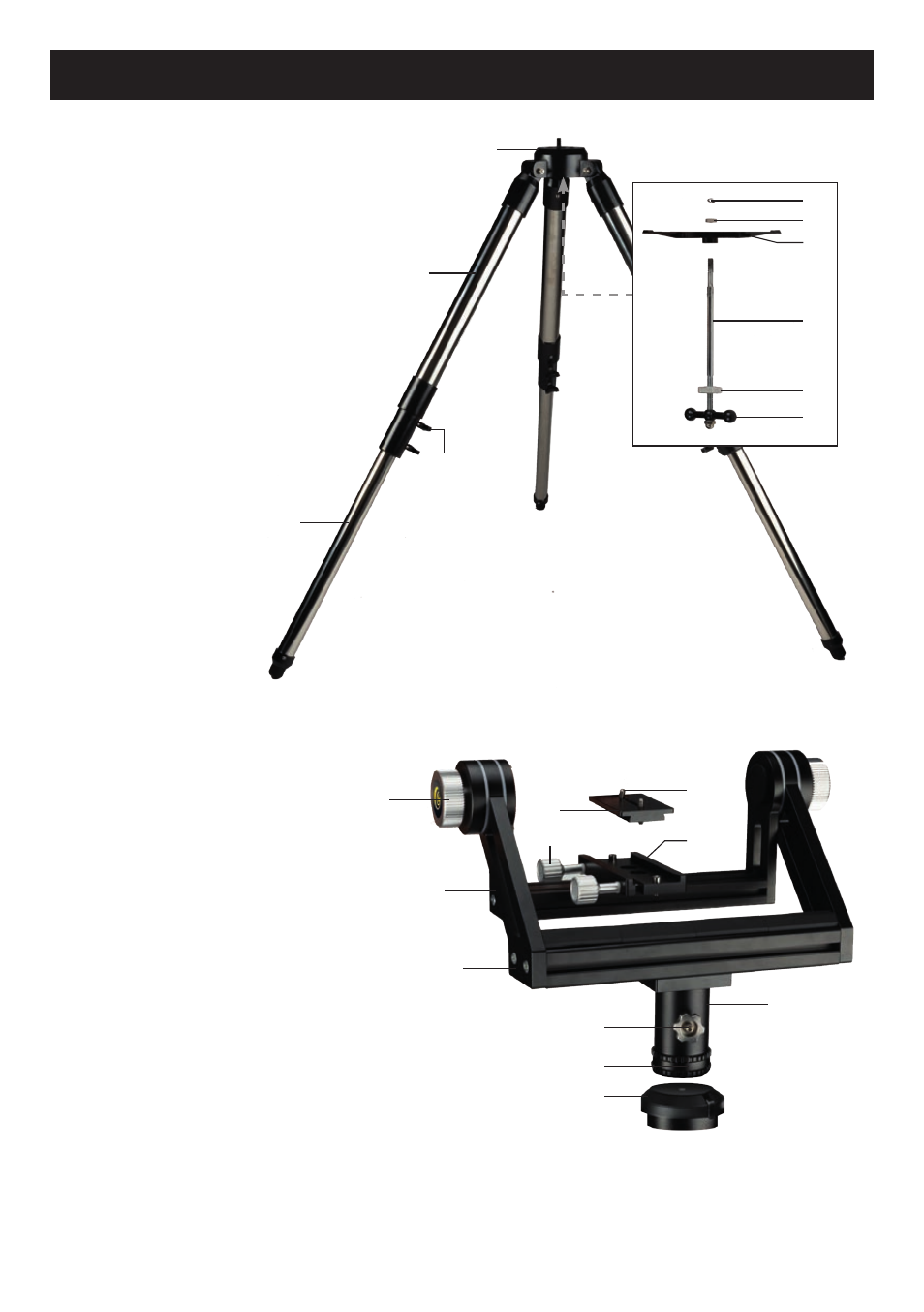

Parts overview
Tripod
U-Mount
11. Friction wheels
for height adjustment
12. Movable height cradle
13. Fork arm
14. Adapter plate for 15.
15. 1/4" threaded screws
16. Dovetail rail
17. Fixing screws for 16.
18. Turnable azimuthal axis
19. Fixing screw for 18.
20. Mounting head
21. Tripod head adapter
1. Tripod head
2. Tripod leg (upper part)
3. Fixing screws for tripod leg
4. Tripod leg (lower part)
5. Spindle crank
6. Knurled screw
7. Central screw
8. Spacing plate
9. Washer
10. C-Clip





















