Setting the data trader rate

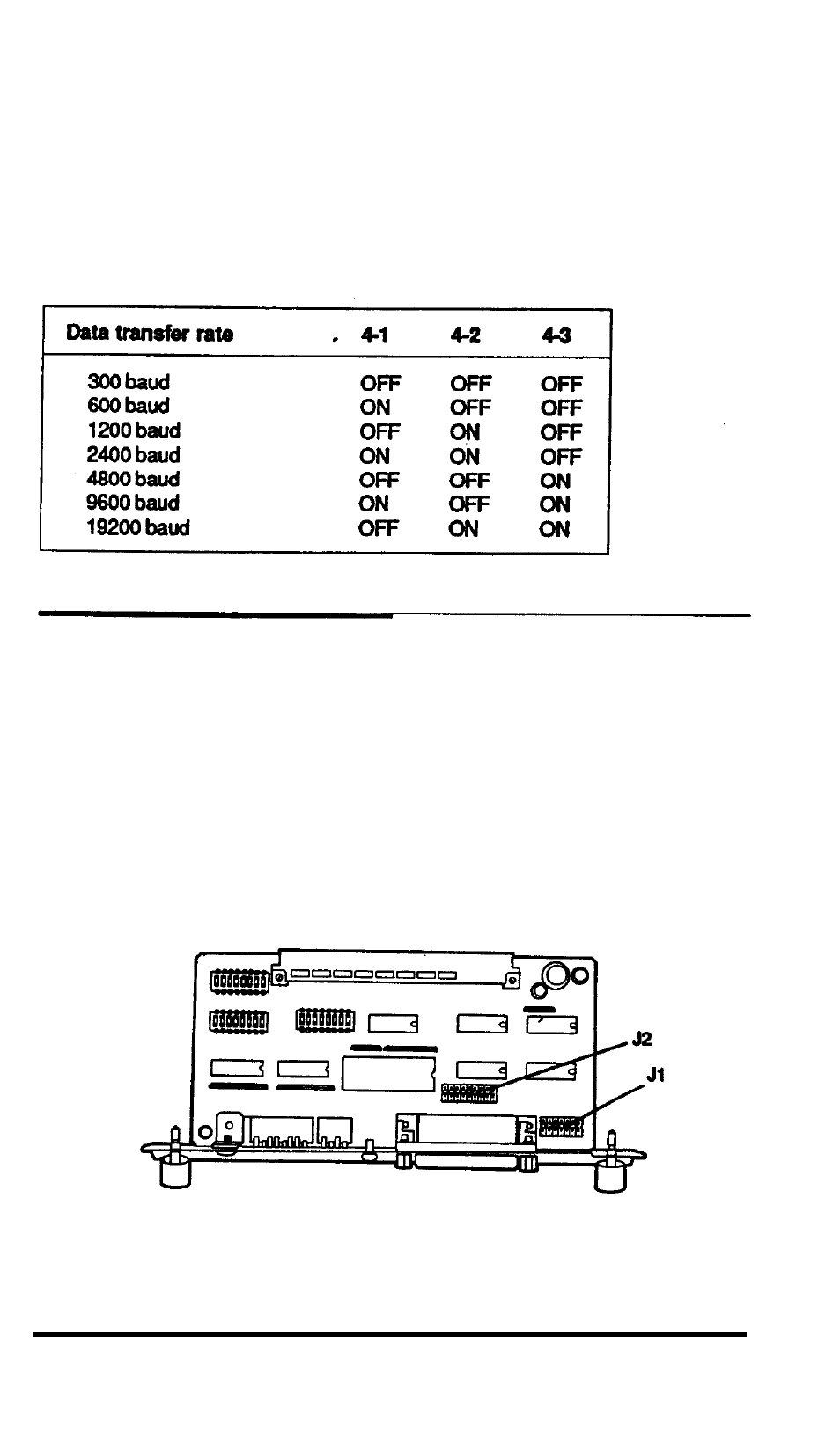

The following table shows the DIP switch settings for the various
possible data transfer (baud) rates
Table2. Baud rate settings
The Serial Interface Jumpers
The following tables describe the functions of the jumpers on the
serialinterface. The main function of these jumpers is to switch
between RS-232 C and RS-422 operation, but some of the jumpers allow
you to customize the interface.
The jumpers are located on the interface card as shown in Figure 3.
Figure3. The serial interface jumpers
I
6
serial Interface
