Installing and connecting
35

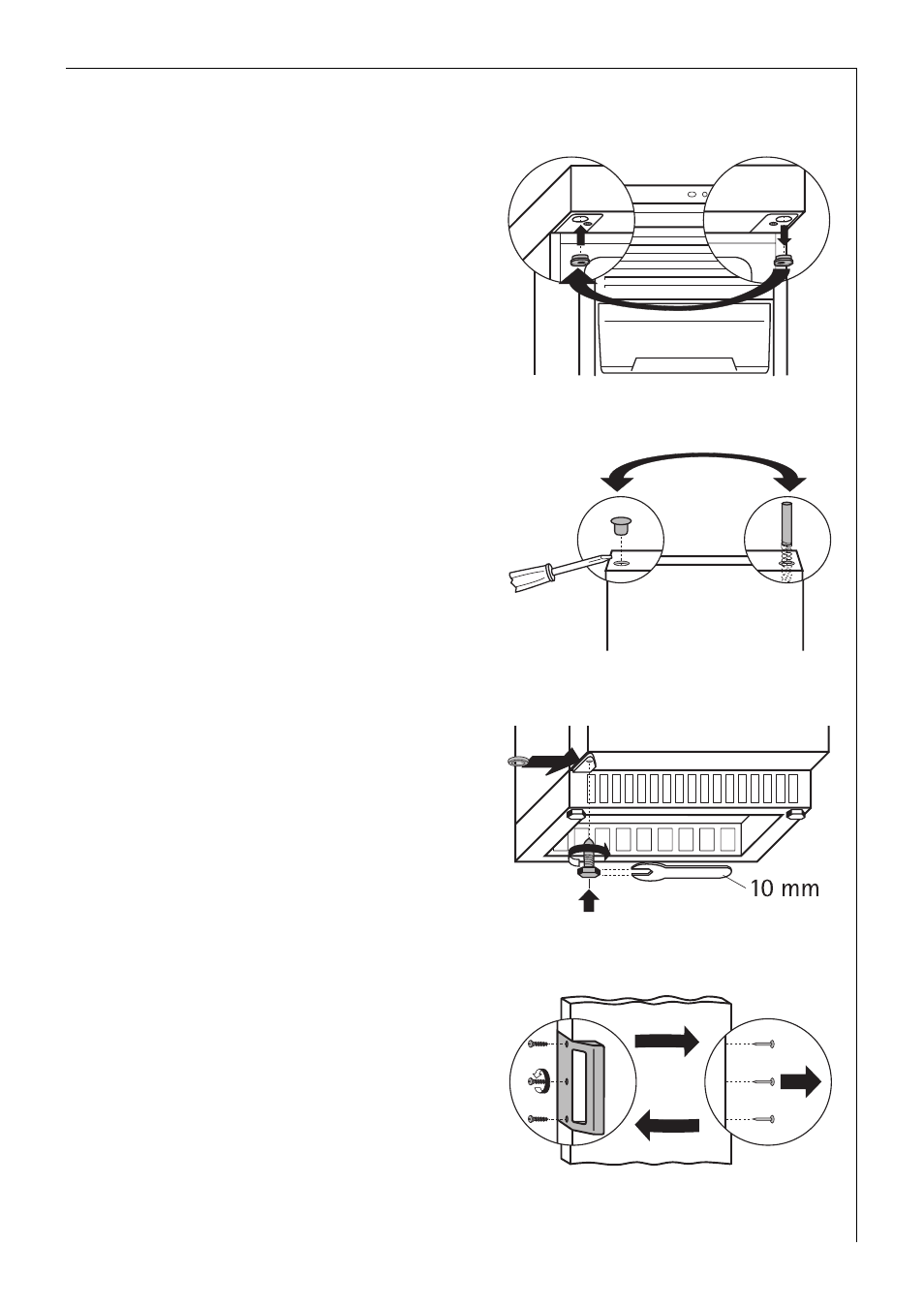

0 Refit the plinth and stand the
appliance upright.
0 Put the top eccentric bush on
the left.
0 Put the cover cap and bearing
pin with the spiral spring on the
top of the door.
0 Insert and close the door with
the bearing pin carefully in the
upper eccentric bush.
0 Fit the washer down between
the door and bearing and screw
in the bearing bolt into the
lower door bearing.
0 Remove the 3 hole covering pins.
0 Loosen the 3 screws on the door
handle and move the door
handle towards the right.
0 Insert the hole covering pins on
the left.
