V1.1 ZSME300000011 23
EXCELL PRECISION CO., LTD.
2. RELAY OUTPUT
(1) Relay Output
Relay’s function acts as signal output in the check-weighing mode. When an object’s
weight value reaches one of the setting points (HI, OK, LOW), the relay outputs a signal
through PIN 1, PIN2, or PIN 3. To set the check-weighing configuration by pressing the
key (in TW & AW models) or enter F4 (please refer to page 12 or 16 for operations).
(2) Relay Pin Description
PIN 1 Þ OK output
PIN 2 Þ High output
PIN 3 Þ Low output
PIN 4 Þ VDD
PIN 5 Þ GND
PIN 6 Þ COMMON

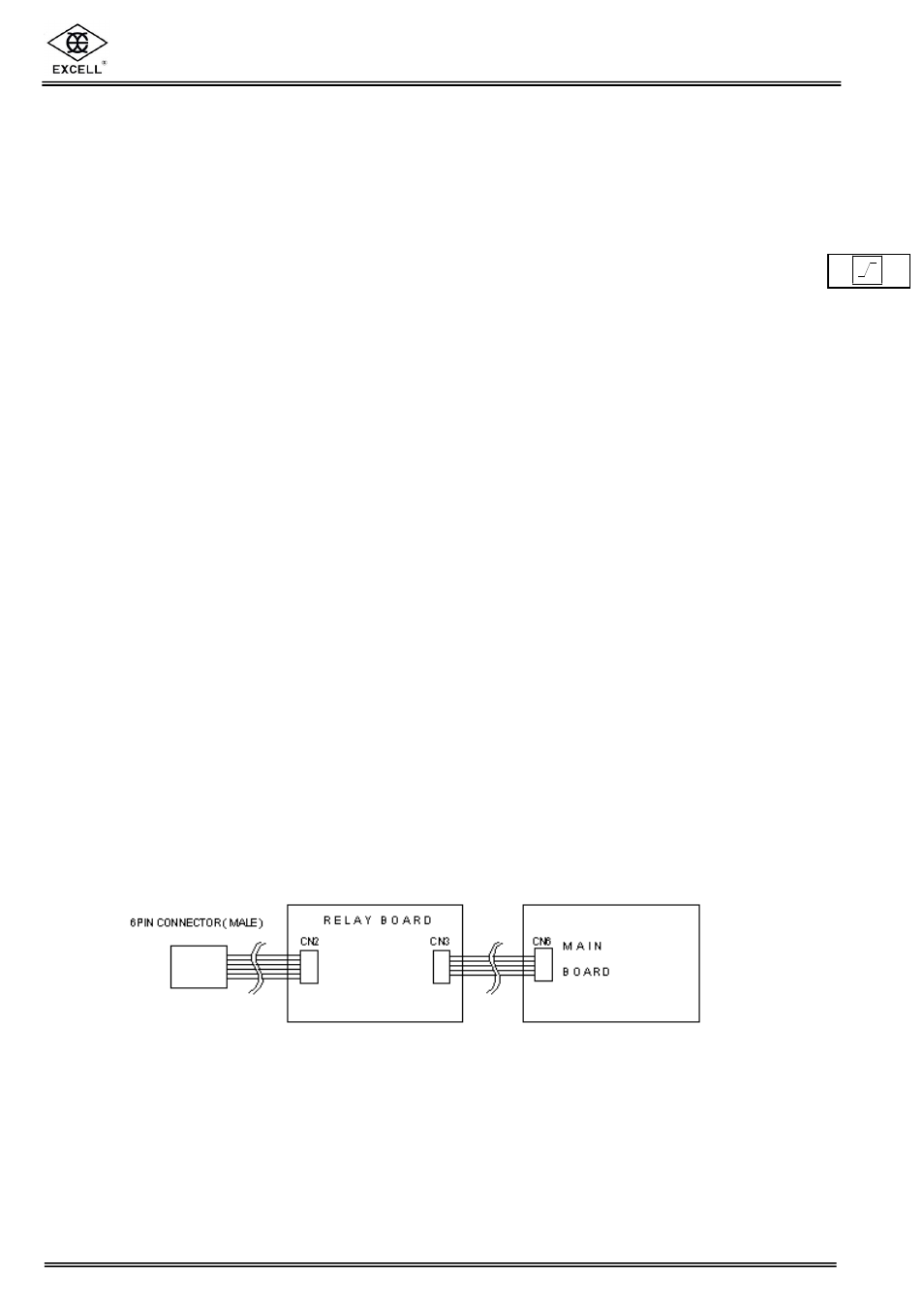

(3) Connection Illustration
