APOLLO 1U ICE

Connectors

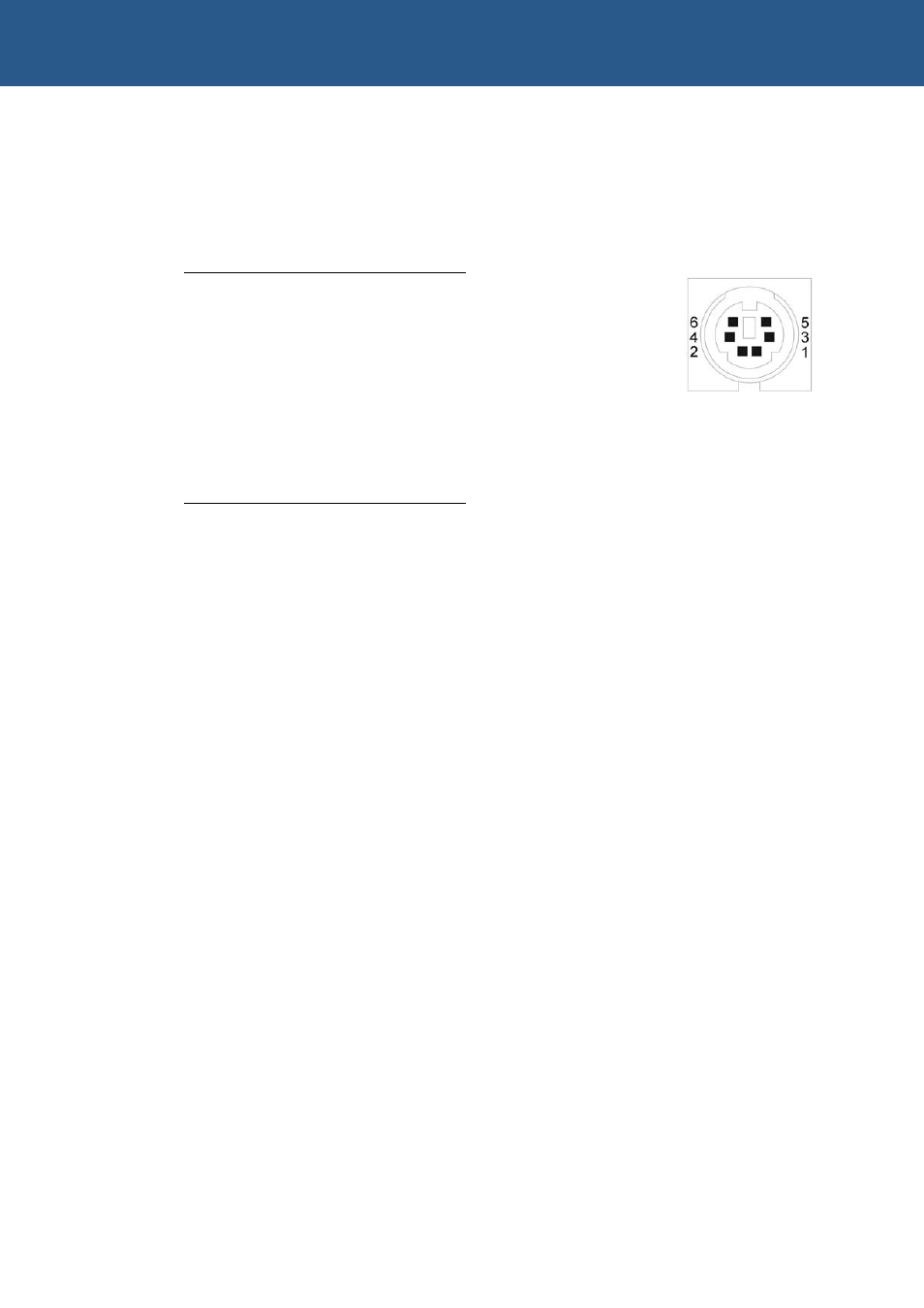

J6C – PS/2 mouse

Connector: 6-pin Mini-DIN.
PC99 Color: Green

Pin Signal

name

1 MS

DATA

2 No

Connect

3 Ground

4 +5V

5 MS

CLOCK

6 No

Connect
