APOLLO 1U ICE Connectors
Connectors
The connectors on the APOLLO let you connect external devices such as keyboards,
mouse devices, printers etc.
Connector Function See …
J1 Audio Line Out. Page 13 .
J2 Audio Line In. Page 13 .
J3 Audio Mic In. Page 14 .
J4A IEEE1394 port 0. Page 14 .
J4B, J4C USB ports 1 to 2. Page 14 .
J5A Primary LAN. Page 15 .
J5B Secondary LAN. Page 15 .
J6A VGA connector. Page 16 .
J6B Keyboard. Page 16 .
J6C Mouse. Page 17 .
J7A Parallel port (LPT1). Page 18 .
J7B, J7C Serial ports 1 to 2. Page 19 .

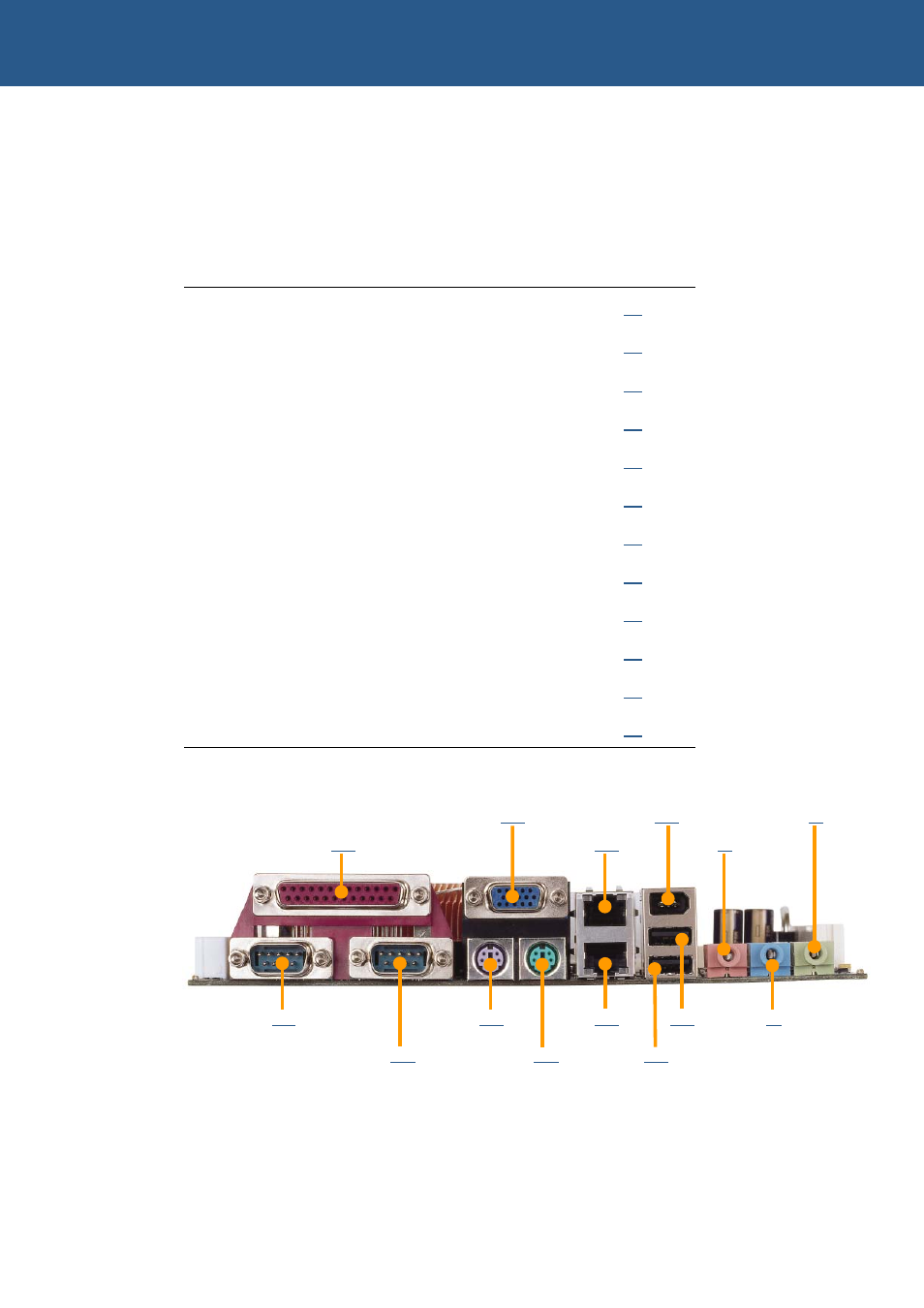

The connectors are illustrated in the following diagram.
J6A J4A J1
J7A J5A J3
J7B J6B J5B J4B J2
J7C J6C J4C
Further details about these connectors are provided in the following sections.
