APOLLO 1U ICE

Connectors

J3 - 3.5mm audio jack

PC99 Color: pink.

Signal name

Pin

2.1 mode

5.1 mode

Tip

Microphone In

Surround centre

Ring

No Connect

Low frequency effects

Sleeve Ground

Ground

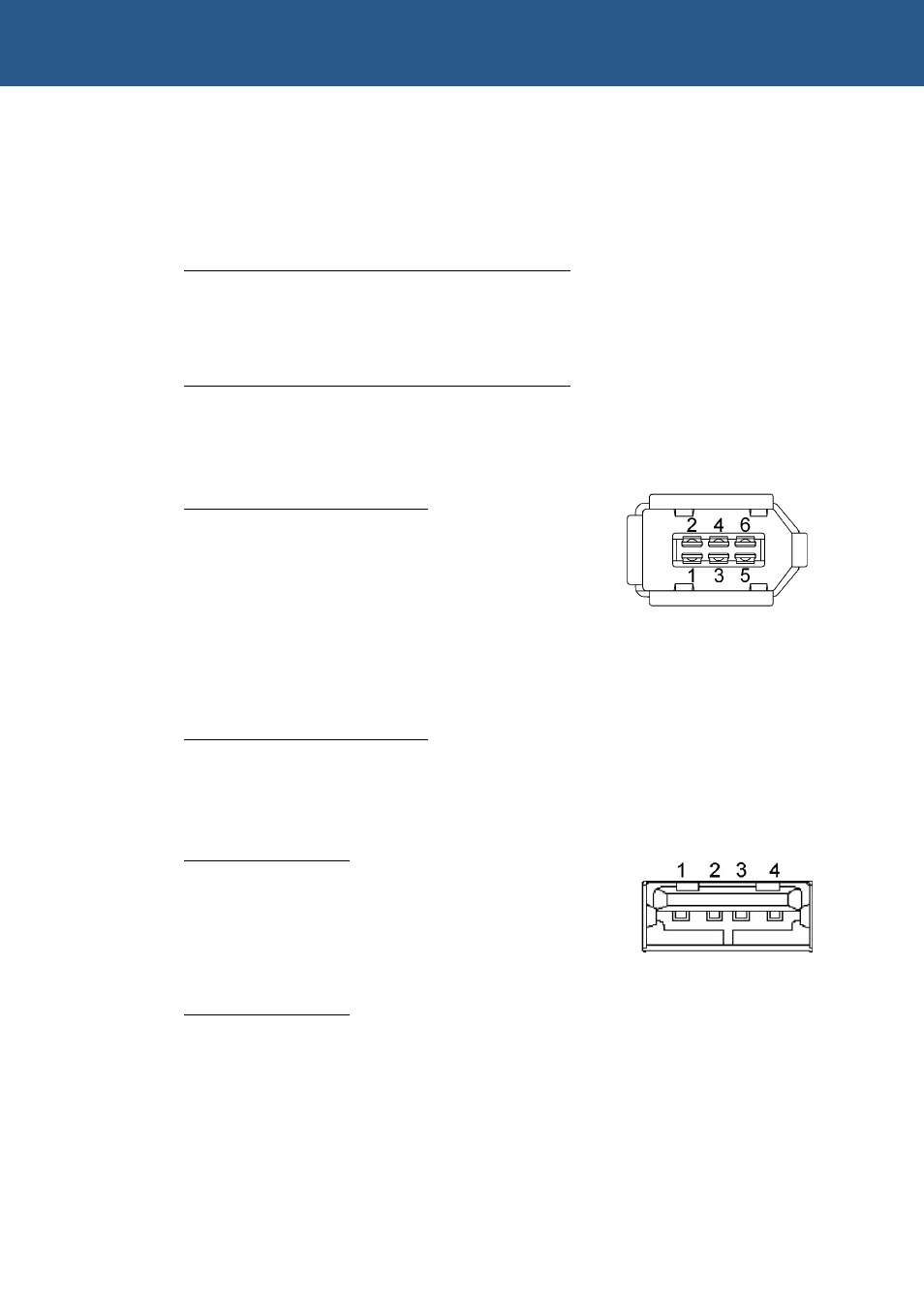

J4A – IEEE1394 connector port 0

6-pin IEEE1394 connector.

Pin Signal

name

1 +12V

(Fused)

2 Ground

3 TPB0-

4 TPB0+

5 TPA0-

6 TPA0+

J4B and J4C – USB ports 1 and 2

USB type A connector.

Pin Signal

name

1 VBUS

2 Data-

3 Data+

4 Ground
