9
Menu Displays and
Detailed Settings

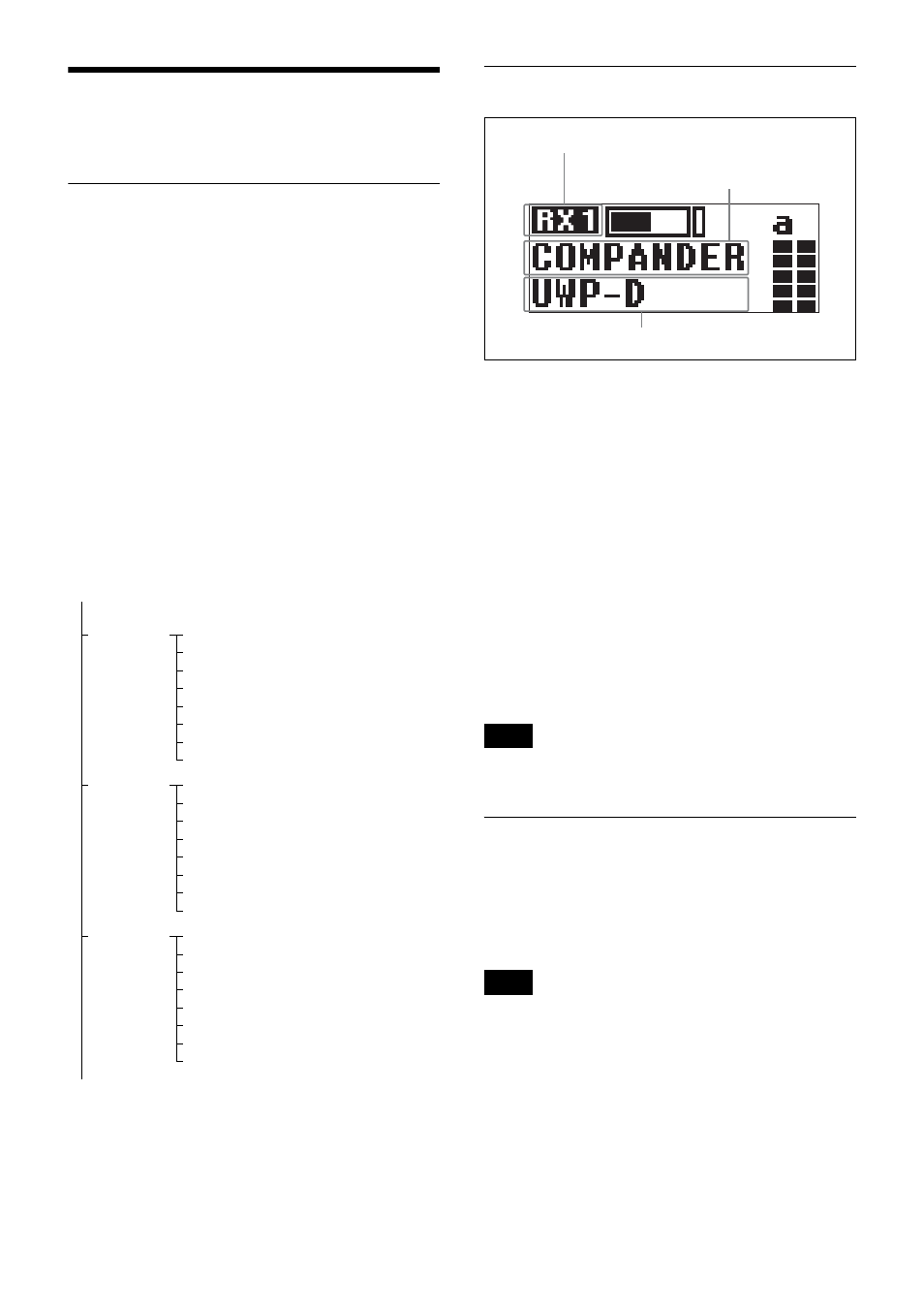

Menu Structure and Hierarchy
Menu structure
UTILITY menu
You can display the UTILITY menu from the meter
screen which displays information on tuners 1 and 2. This
menu allows you to configure basic settings for the unit
and settings for when the unit is used in conjunction with
a wireless adapter.
RX1 (tuner 1) menu
This menu allows you to configure settings for RX1
(tuner 1).
RX2 (tuner 2) menu
This menu allows you to configure settings for RX2
(tuner 2).
Menu hierarchy
Basic Menu Operations
1
Press the MENU button repeatedly to select the
menu.
Each time you press the MENU button, the menu
changes in the following order:
meter screen, RX1, RX2, meter screen
If you want to configure settings in the UTILITY
menu, display the meter screen.
2
Press the + or – button repeatedly until the function to
be set appears.
3
Hold down the SET button until the item to be set
flashes.
4
Press the + or – button to change the setting.
5
Press the SET button to apply the setting.
When the tuner is turned off, the menus corresponding to
that tuner are not displayed.
UTILITY Menu
The UTILITY menu includes basic settings for the unit
and settings for when the unit is used in conjunction with
a wireless adapter.
These functions and parameters are explained here.
Underlined items are the factory setting.
The functions indicated by “ADAPTER” in the upper-
right corner are related to the AES/EBU output when the
receiver is used in conjunction with an optional wireless
adapter. The function does not operate even when used
with a compatible Sony slot-in type camcorder.
Selecting output 1
(ANALOG OUT1)
Select the output signal for when a camcorder with only
one channel of analog input (e.g., HDCAM) is connected.
In addition, when the unit is attached to a DWA-01D
MENU
Meter screen ANALOG OUT 1
AES LEVEL
SYNC SOURCE
75ohm
TIME
CONTRAST
RESET
VERSION
RX1 GP/CH
AUTO SET
BAND
CLR SCAN
SYNC
COMPANDER
ACT SCAN
SQUELCH
RX2 GP/CH
AUTO SET
BAND
CLR SCAN
SYNC
COMPANDER
ACT SCAN
SQUELCH
To meter screen
Note
Note
Function name
Menu name
Item to be set
