The CR288 receiver can be installed into a standard 19” rack for transport or
permanent installation using the included rack ears. Follow the simple steps below to
mount the CR288:

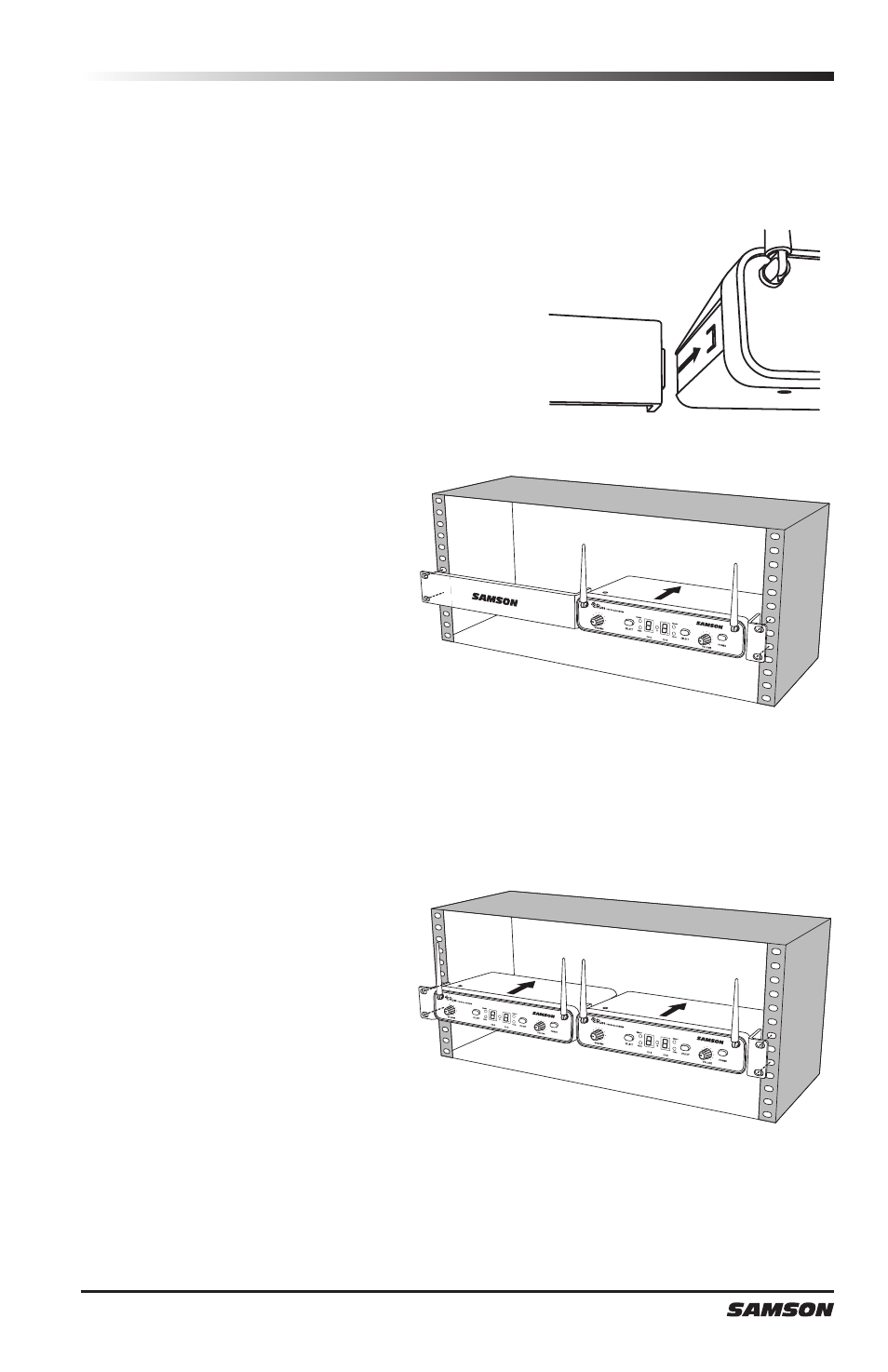

Attach the included rack ears by sliding each rack
ear into the groove on either side of the CR288
until they lock into place, and the receiver flush
with the front panel.
Position the CR288 receiver into
an available rack space and slide in
until the rack ears are touching the
rails of the rack case and are aligned
with the rack rail holes.
Mount the receiver into the rack using the appropriate size rack screws (not
included). To ensure equal tension and balance when installing the receiver, you
should secure screws in a crisscross pattern of opposite corners: top left -> bottom
right -> top right -> bottom left.
In order to mount two CR288
receivers in one rack space, the
system includes a center connection
piece. Slide the center connection
piece into the groove of each
receiver, secure using the included
screws, and attach the short rack
ears to each receiver. Mount the
receivers into the rack using the
crisscross pattern described above.
Rack Mounting
