06 USING A WIRED CONNECTION TO THE TV

Connecting using an Optical Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on
your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on
the TV is changed, you will experience better sound quality. (The TV menu may use different words for
Dolby Digital and PCM depending on the TV manufacturer.)

Pre-connection Checklist

When using the Soundbar outdoors, it is recommended to connect an Optical cable for smooth
sound output.

Be sure to use the optical cable provided with the product.

To purchase any optical cable separately, contact the nearest dealer or Samsung Service Center.

• The optical cable provided with the product is designed to meet the specification (0.16 inches (4 mm))

for Water Resistance. When using an optical cable purchased from other site, the Water Resistance
function may not work properly.

When you use an optical cable and the terminals have covers, be sure to remove the covers.

SERVICE

DC 23V

DIGITAL

AUDIO IN

(OPTICAL)

OPTICAL OUT

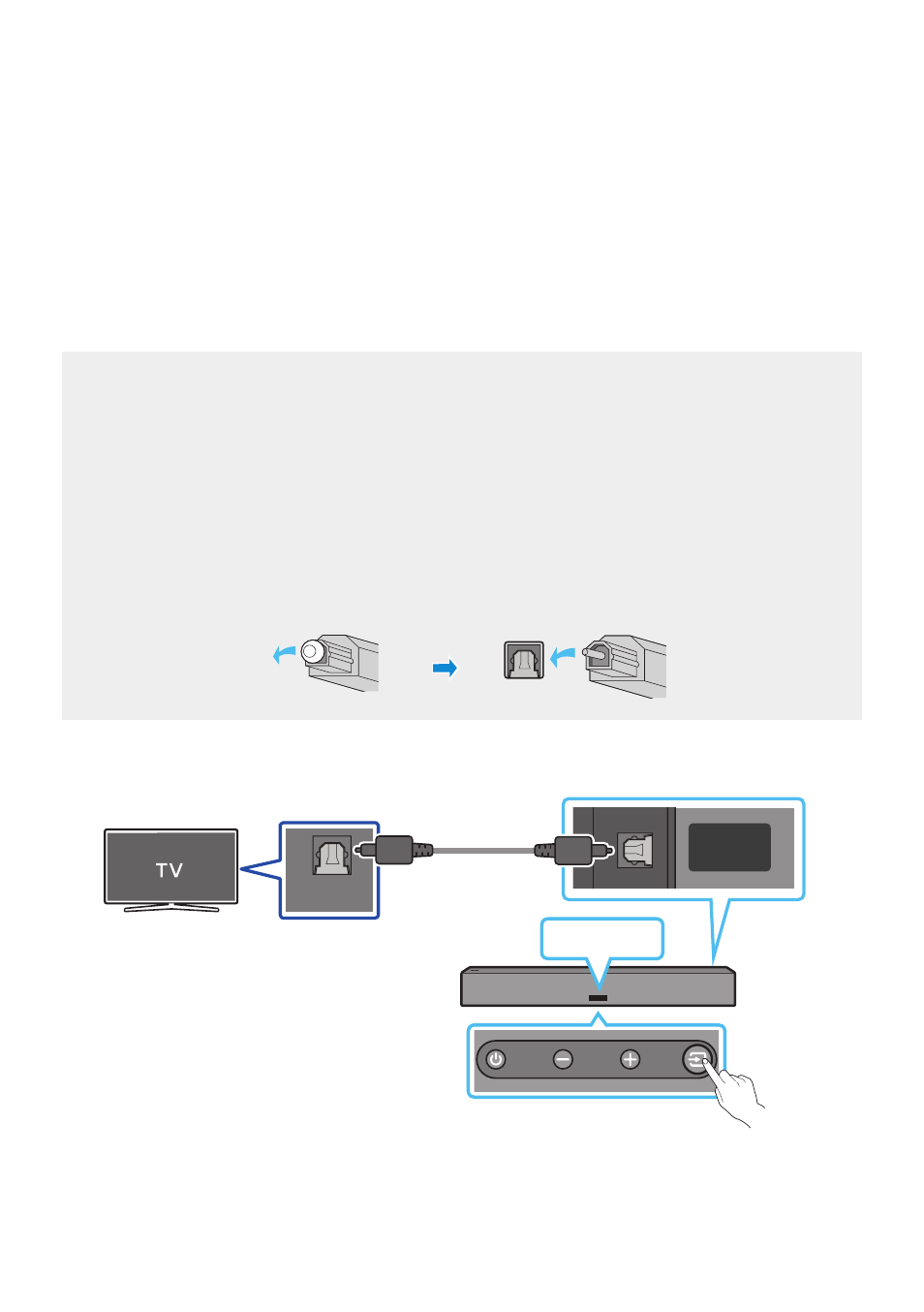

Optical Cable

Rear of the Soundbar

D.IN

Bottom of the Soundbar
