Page 42
E
42
MULTI menu
Function
Command Direction
Parameter
Reply
Control/Response contents
*1
*2
(A) (B)
ENLARGE
ENLG
WR
0-1
0-1 0: OFF, 1: ON
-
○ ○
ENLARGE MODE
EMAG
WR
0-4
0-4 0: OFF, 1: 2 x 2, 2: 3 x 3, 3: 4 x 4, 4: 5 x 5
EMHV
WR
11-55
11-55 1 x 1 (OFF) to 5 x 5 (“m x n” is expressed as “mn”, where m and n are
the numbers of monitors specified for the longest direction and the
shortest direction respectively.)
IMAGE POSITION (M x N)
EPHV
WR
11-55
11-55 Specifies values in the order of IMAGE POSITION IN LONGEST/
SHORTEST DIRECTION.
IMAGE POSITION (2 x 2)
EPOS
WR
0-3
0-3 See the description below.
IMAGE POSITION (3 x 3)
EPOS
WR
0-8
0-8
IMAGE POSITION (4 x 4)
EPOS
WR
0-15
0-15
IMAGE POSITION (5 x 5)
EPOS
WR
0-24
0-24
ENLARGED
SCREEN
POSITIONING
THE LONGEST
DIRECTION
EPSH
WR
-999-999
-999-999 The setting range depends on the ENLARGE MODE setting and the
IMAGE POSITION.
THE SHORTEST
DIRECTION
EPSV
WR
-999-999
-999-999
BEZEL ADJUST
BZCO
WR
0-1
0-1 0: OFF, 1: ON
BEZEL ADJUST
TOP
BZCT
WR
0-1
0-1 0: OFF, 1: ON
BOTTOM
BZCB
WR
0-1
0-1 0: OFF, 1: ON
RIGHT
BZCR
WR
0-1
0-1 0: OFF, 1: ON
LEFT
BZCL
WR
0-1
0-1 0: OFF, 1: ON
BEZEL WIDTH
TOP
BZWT
WR
0-100
0-100
BOTTOM
BZWB
WR
0-100
0-100
RIGHT
BZWR
WR
0-100
0-100
LEFT
BZWL
WR
0-100
0-100
ENLARGE/IMAGE POSITION SETTING ESTG
WR
XXYY
XXYY XX: ENLARGE MODE (Same as EMAG), YY: IMAGE POSITION (Same
as EPOS)
ESHV
WR
XXYY
XXYY XX: ENLARGE MODE (Same as EMHV), YY: IMAGE POSITION (Same
as EPHV)

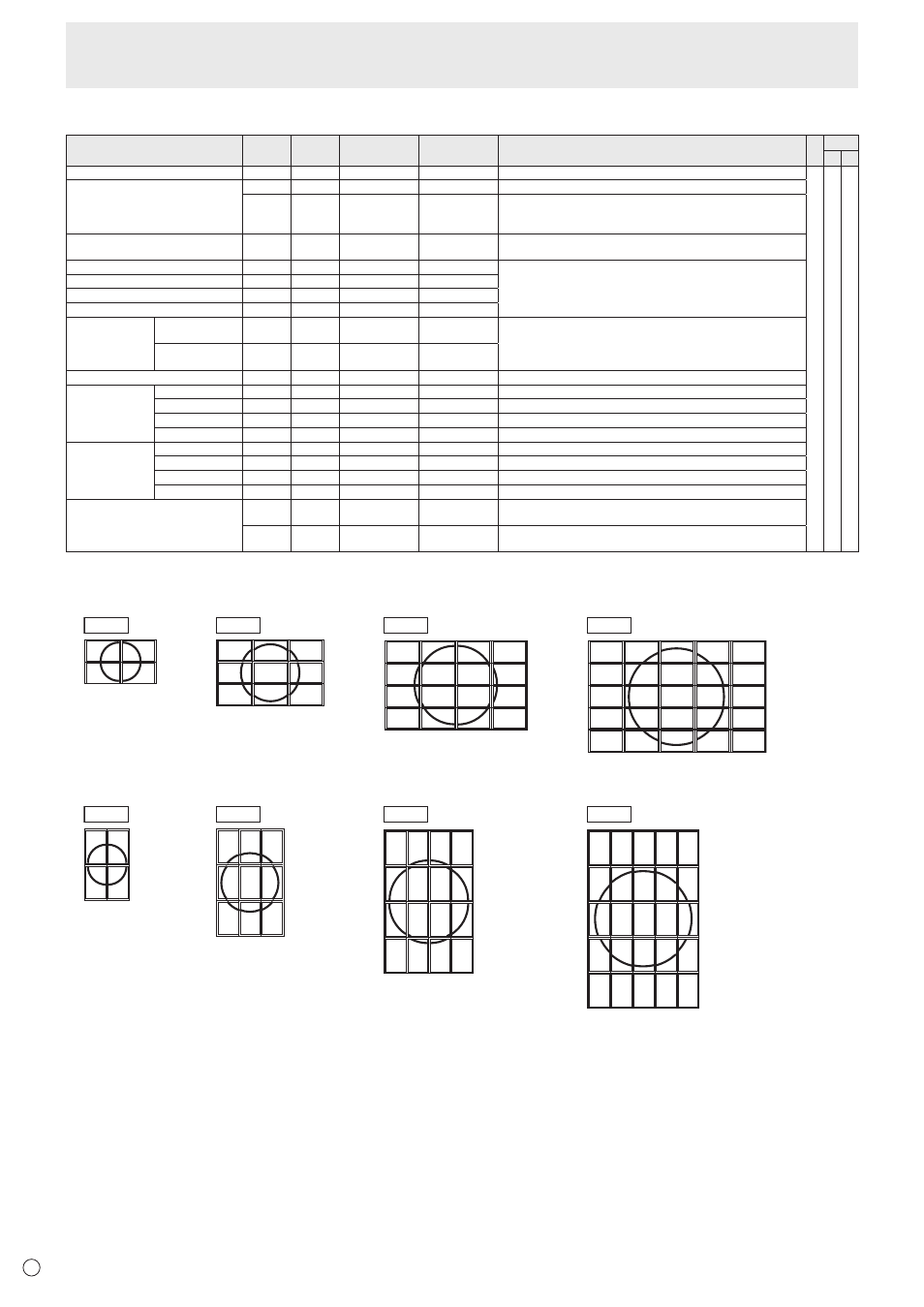

• IMAGE POSITION (EPOS) setting
In horizontal orientation
2 x 2
4 x 4
5 x 5
3 x 3
1
3
0
2
0
1
2
3
4
5
6
7
8
2
6
10
3
7
11
0
1
4
5
8
9
12
13
14
15
0
5
10
15
20
1
6
11
16
21
2
7
12
17
22
3
8
13
18
23
4
9
14
19
24
In vertical orientation
2 x 2
4 x 4
5 x 5
3 x 3
1
3
0
2
0
1
2
4
5
6
8
9
10
3
7
11
12
13
14
15
0
1
2
5
6
7
10
11
12
3
8
13
15
16
17
18
20
21
22
23
4
9
14
19
24
0
1
2
3
4
5
6
7
8
Controlling the Monitor with a PC (RS-232C)
