Fixture overview – Elation Professional 60TM User Manual
Page 9
Design Wash LED 60™
©Elation Professional, Los Angeles Ca.
9
www.ElationLighting.com

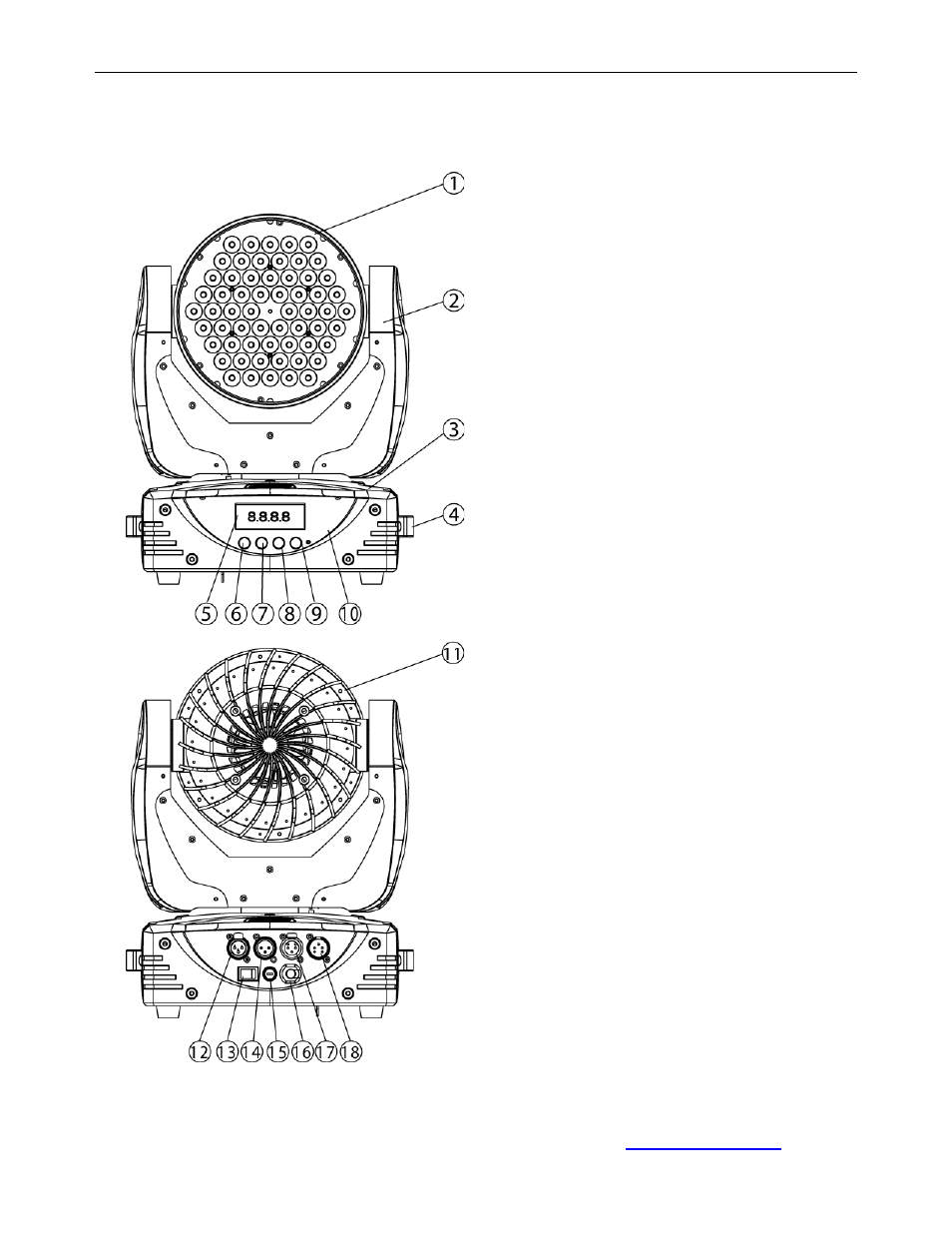

5. FIXTURE OVERVIEW
1. LED Assembly
2. Yoke Assembly
3. Base
4. Carrying Handle
5. LCD Menu Display
6. Menu Button
7. Up Button
8. Down Button
9. Enter Button
10. Control Board Assembly
11. Cooling/Fan Assembly
12. 3-Pin DMX Output
13. Battery On/Off Button
14. 3-Pin DMX Input
15. Fuse Holder
16. Power Cord
17. 5-Pin DMX Output
18. 15-Pin DMX Input
