Dmx channel traits – Elation Professional 60TM User Manual
Page 36
Design Wash LED 60™
©Elation Professional, Los Angeles Ca.
36
www.ElationLighting.com

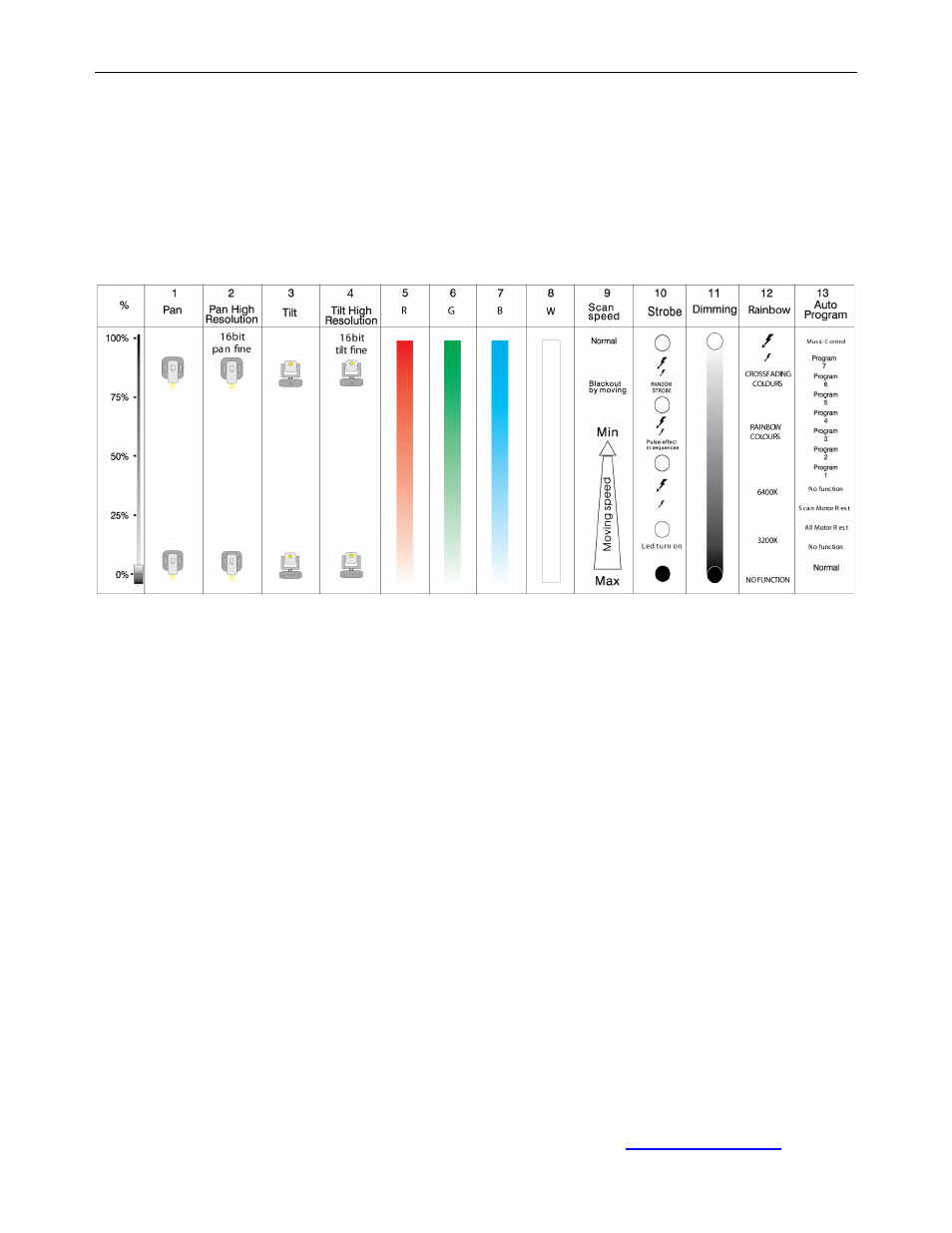

12. DMX CHANNEL TRAITS:
The chart below details the channel layout for 13 DMX channels (default).
In 8-bit mode the “Pan Fine” and “Tilt Fine” channels are not used, thus converting the fixture
into a 11-channel DMX fixture.
CHANNEL 1: Pan Movement (max. 540° or 630˚ User Selectable)
CHANNEL 2: 16bit Pan Movement (pan fine)
CHANNEL 3: Tilt Movement (max. 265°)
CHANNEL 4: 16bit Tilt Movement (tilt fine)
CHANNEL 5: Red LEDs
CHANNEL 6: Green LEDs
CHANNEL 7: Blue LEDs
CHANNEL 8: White LEDs
CHANNEL 9: Speed Control (Pan/Tilt movement, blackout selection)
CHANNEL 10: Strobe (0-13Hz), Shutter close/open function + random strobe
CHANNEL 11: Dimmer (Intensity) Control
CHANNEL 12: Color Macros
CHANNEL 13: Special (programs & motor reset)
