Preparation before beginning administration on IP PBX
Physical Installation
IPX-300: Internet Telephony PBX System
IPX-300W: Wi-Fi Internet Telephony PBX System

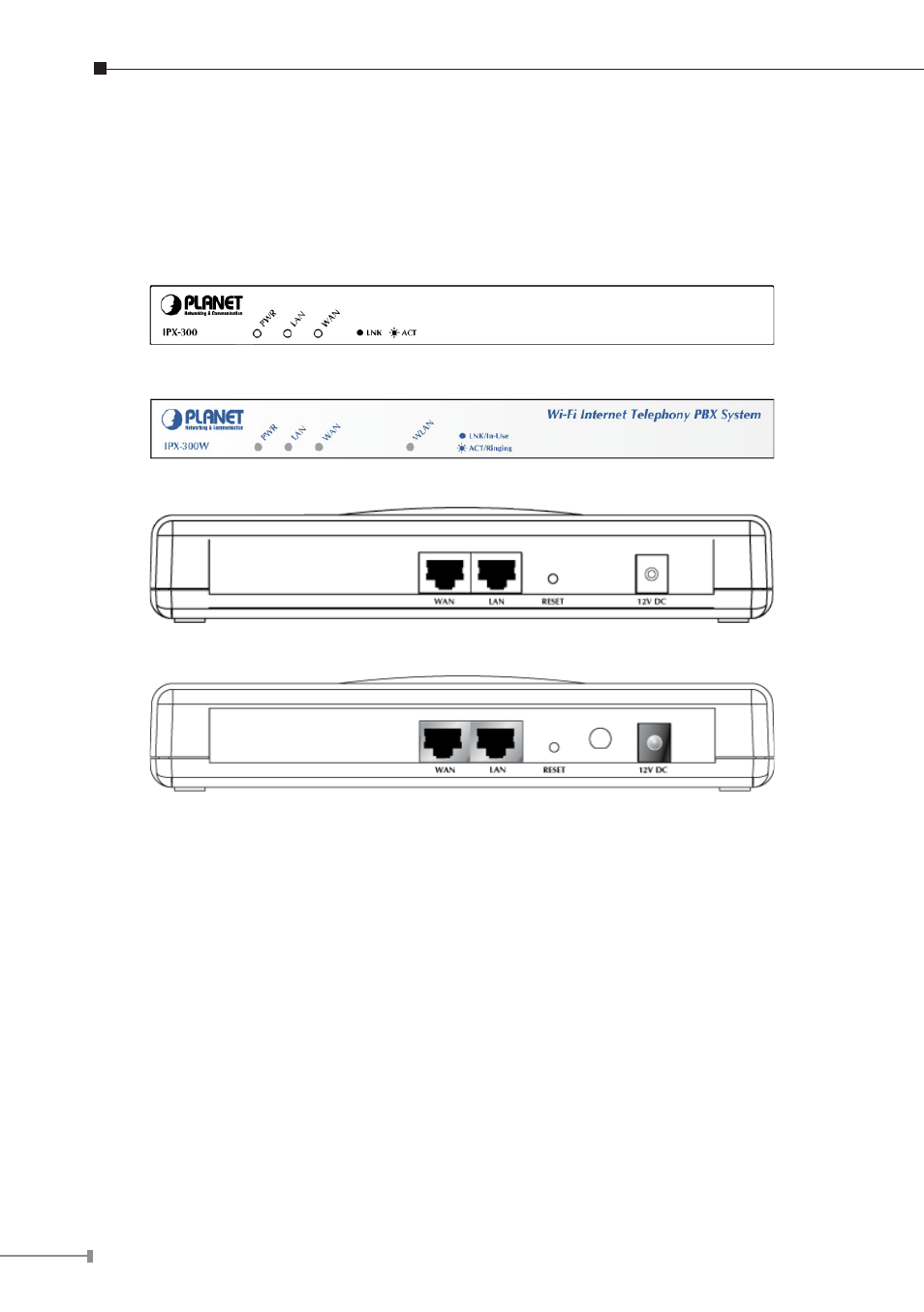

Figure 1. Front Panel of IPX-300
Figure 2. Front Panel of IPX-300W
Figure 3. Rear Panel of IPX-300
Figure 4. Rear Panel of IPX-300W
Administration Interface
IP PBX provides GUI (Web based, Graphical User Interface) for machine
management and administration.
Web configuration access:
To start IP PBX web configuration, you must have one of these web browsers
installed on computer for management
• Microsoft Internet Explorer 6.0.0 or higher with Java support
Default LAN interface IP address of IP PBX is 192.168.0.1. You may now open your
web browser, and insert 192.168.0.1 in the address bar of your web browser to
logon IP PBX web configuration page.
IP PBX will prompt for logon username/password, please enter: admin / 123 to
continue machine administration.
