P
ower
P
runer
TM
o
PeraTor
'
s
M
anual
9
1
2
8
7
3
4
5
6
9
10
11
12
13

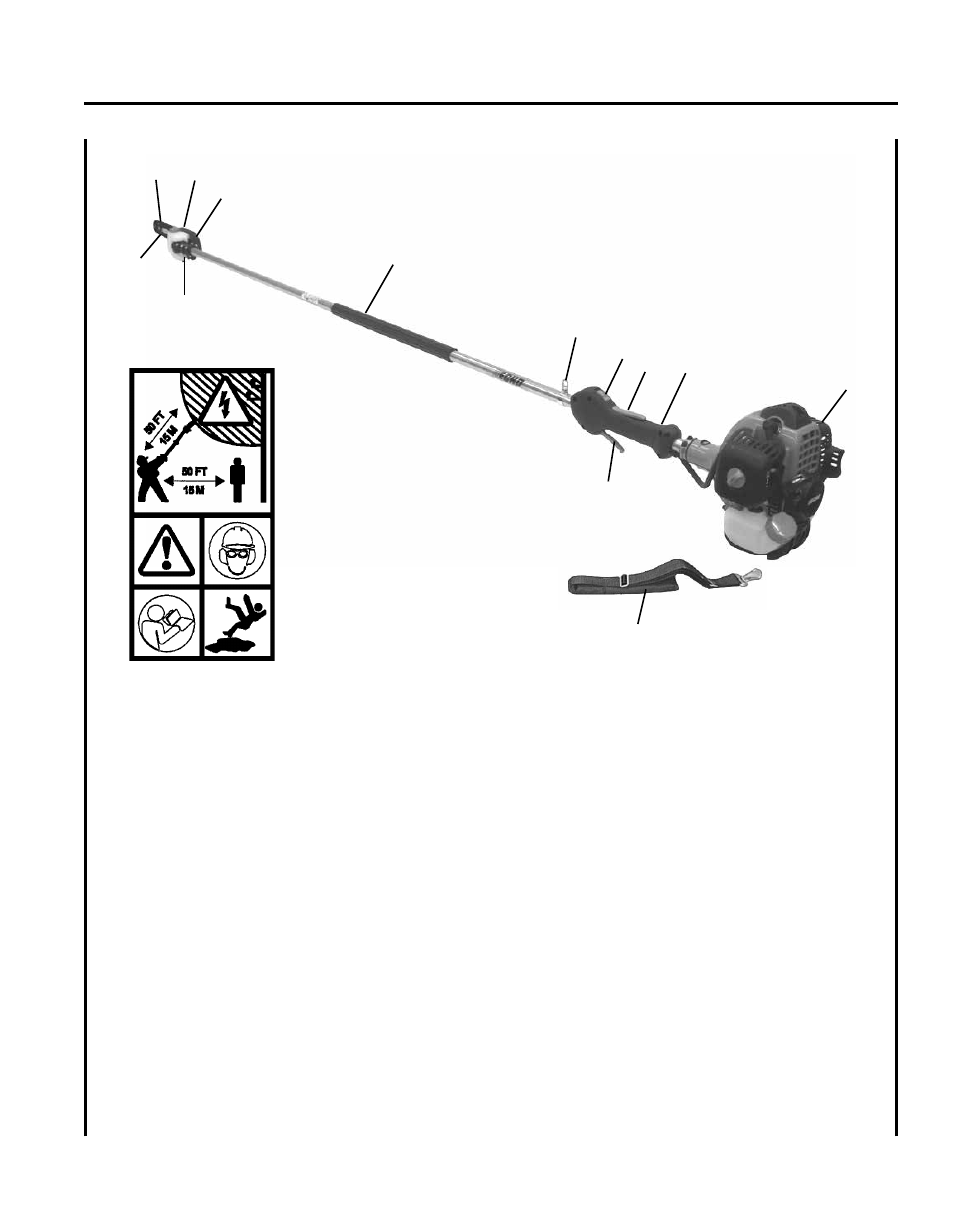

1. POWER hEAD - Includes the Engine, Clutch, Fuel System, Ignition System and Starter.
2. REAR hANDLE AssEMbLy - Rear (right hand) handle.
3. ThROTTLE TRIGGER LOCKOUT - This lever must be held during starting. Operation of the throttle trigger is
prevented unless throttle trigger lockout lever is engaged.
4. sTOP sWITCh - Mounted on top of rear handle assembly. Move switch forward to run, back to stop.
5. sTRAP hOOK - Used to secure unit to shoulder harness.
6. FRONT hANDLE - Cushioned grip for left hand.
7. CUTTING ATTAChMENT - Sealed, gear ratio is 1.5:1 reduction.
8. AUTOMATIC OILER AssEMbLy - Self oiling. Use high quality, low viscosity, non detergent bar and chain oil.
9. GUIDE bAR - 305 mm (12 in.) guide bar.
10. sAW ChAIN - Chain, serving as a cutting tool.
11. CUTTING shOE - Used to capture and stabilize branch while cutting. Place cutting shoe against branch, acceler-
ate and lower saw chain into branch.
