Echo PPF-280 User Manual
Page 27
P
ower
P
runer
TM
o
PeraTor
'
s
M
anual
27
guIde
bar
and
saw
ChaIn
replaCemenT
warning
Never try to replace or adjust guide bar and saw chain with engine running. Always disconnect spark plug wire
before servicing guide bar and saw chain. This saw chain is VERY sharp, wear heavy gloves to protect your hands
when handling it. Wear eye protection meeting CE or ANSI specification Z87.1.

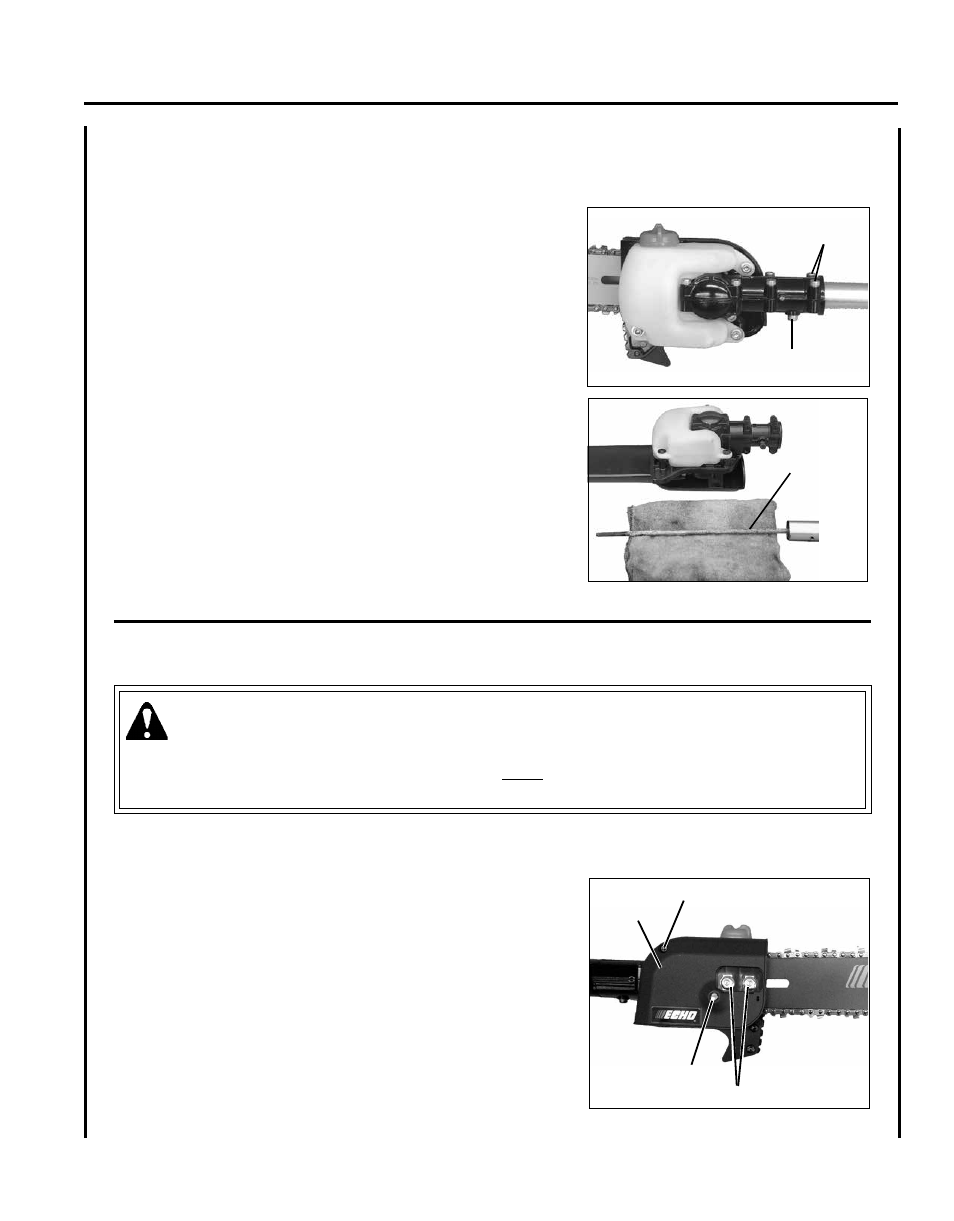

Guide Bar Replacement / Installation
Level 2
1. Remove guide bar nuts (A), and unscrew sprocket cover screw (B).
2. Remove sprocket cover (D).
3. Remove guide bar and saw chain from gear case and sprocket.
4. Remove chain from guide bar and check guide bar for damage and
excessive or uneven wear. Replace guide bar if necessary.
lubrICaTIon
Drive Shaft
Level 2
Parts Required: Lithium Base Grease.
1. Remove cutting attachment locator screw (A).
2. Loosen bolts (B).
3. Remove cutting attachment assembly.
4. Remove flex cable (C), wipe clean and apply a thin coating (15 ml)
of high temperature grease.
5. Slide the flexible cable back in the drive housing. DO NOT get
dirt on the flex cable.
6. Install and secure cutting attachment assembly.
B
a
a
C
D
B
C
