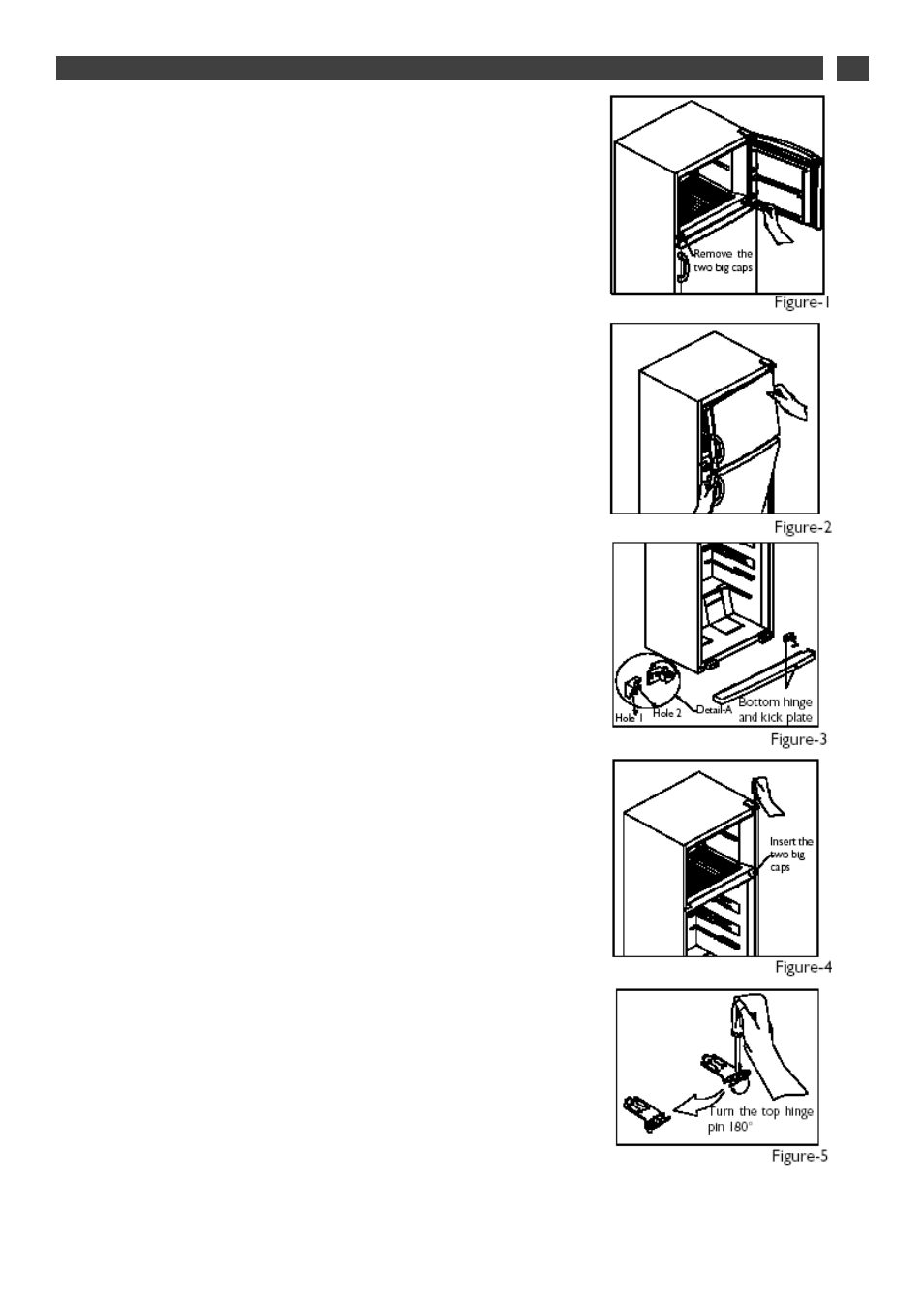

DOOR REVERSIBILITY
(Depending on models)
I. Unscrew the two screws which are fixing the middle hinge. Also remove the two big
caps on the Ieft. (FIG- 1)
2. Dismantle the refrigerator and frezeer doors from cabinet by pulling towards you
together with the middle hinge. (FIG-2)
3. Remove the kick plate by pulling forward.
Unscrew the bottom hinge fixing screws and remove it.
Unscrew the pin of hinge from Hole I, rotate the bottom hinge 90° and screw the pin to
Hole 2. (See Detail A)
Then screw the hinge to bottom Ieft side of refrigerator. (FIG-3)
4. Unscrew the screw fixing the top hinge cover and remove it. Unscrew the two
screws fixing the top hinge and remove it. Insert the two big caps that are put in the
user manuel bag to Ieft side cap holes. (FIG-4)
5. Unscrew the screw fixing the top hinge pin.
Turn the pin by 180° then fix it to Ieft side of the top hinge by screwing it. (FIG-5)
EN 3 INSTALLING YOUR APPLIANCE
