Controls and installation, cont’d, On 1 2 3 4, P/2 da2 wm f/ec f rear panel – Extron Electronics P-2 DA2 WM F, WM F AAP, EC F, D User Manual

Page 8: P/2 da2 d rear panel, P/2 da2 wm f/ec f rear connectors, Figure 2-5 — p/2 da2 d rear connectors, Switch function on (up) off (down), Audio output — 3.5 mm captive screw stereo output, Above)

Text mode
Original mode

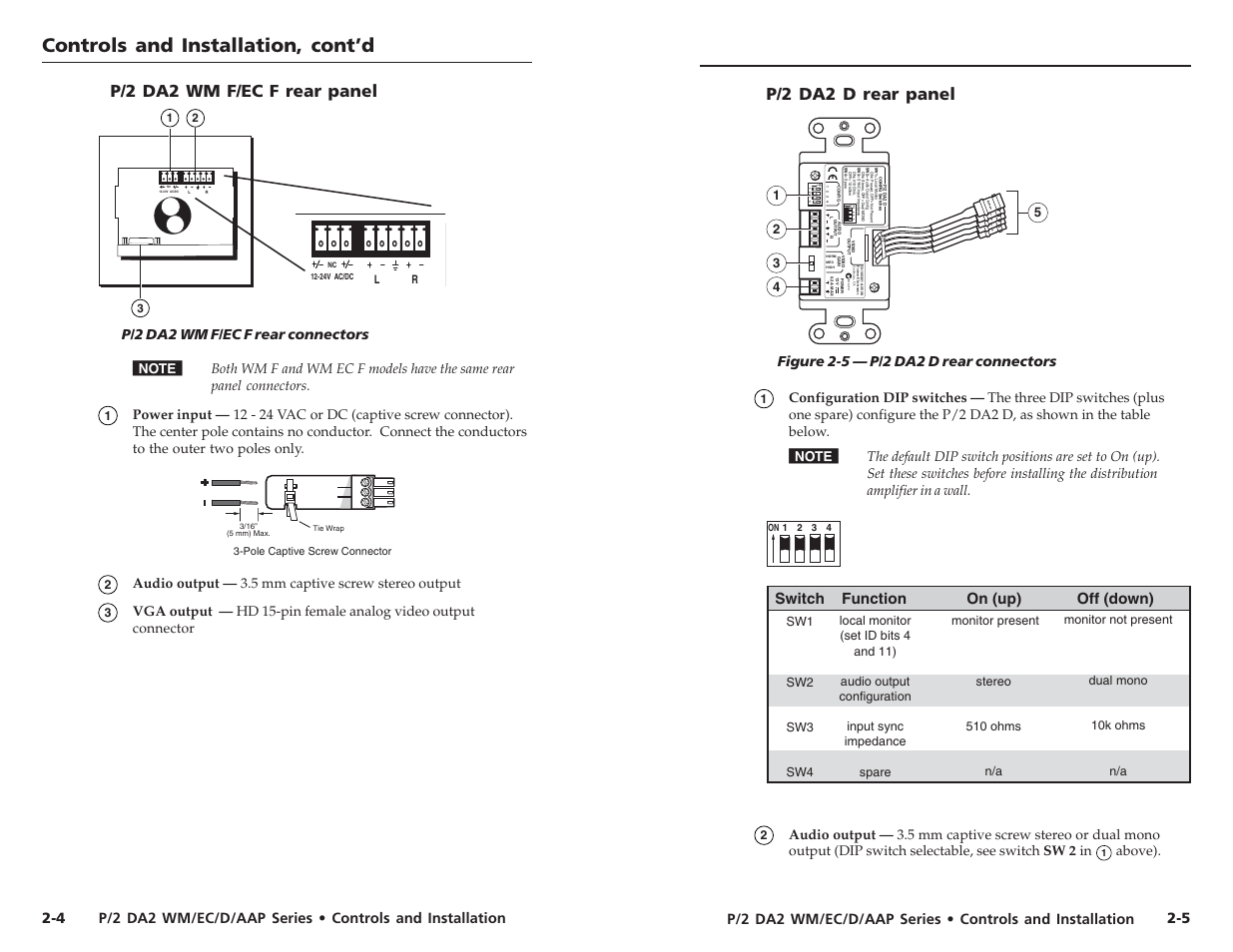

Controls and installation, cont’d, On 1 2 3 4, P/2 da2 wm f/ec f rear panel | P/2 da2 d rear panel, P/2 da2 wm f/ec f rear connectors, Figure 2-5 — p/2 da2 d rear connectors, Switch function on (up) off (down), Audio output — 3.5 mm captive screw stereo output, Above) | Extron Electronics P-2 DA2 WM F, WM F AAP, EC F, D User Manual | Page 8 / 25
