13 CS-352
PREPARATION FOR USE
(A)
(D)
(E)
(C)
(B)
(F)
WARNING
Saw chain is sharp! Always wear gloves when
handling assembly, otherwise serious personal
injury may result.

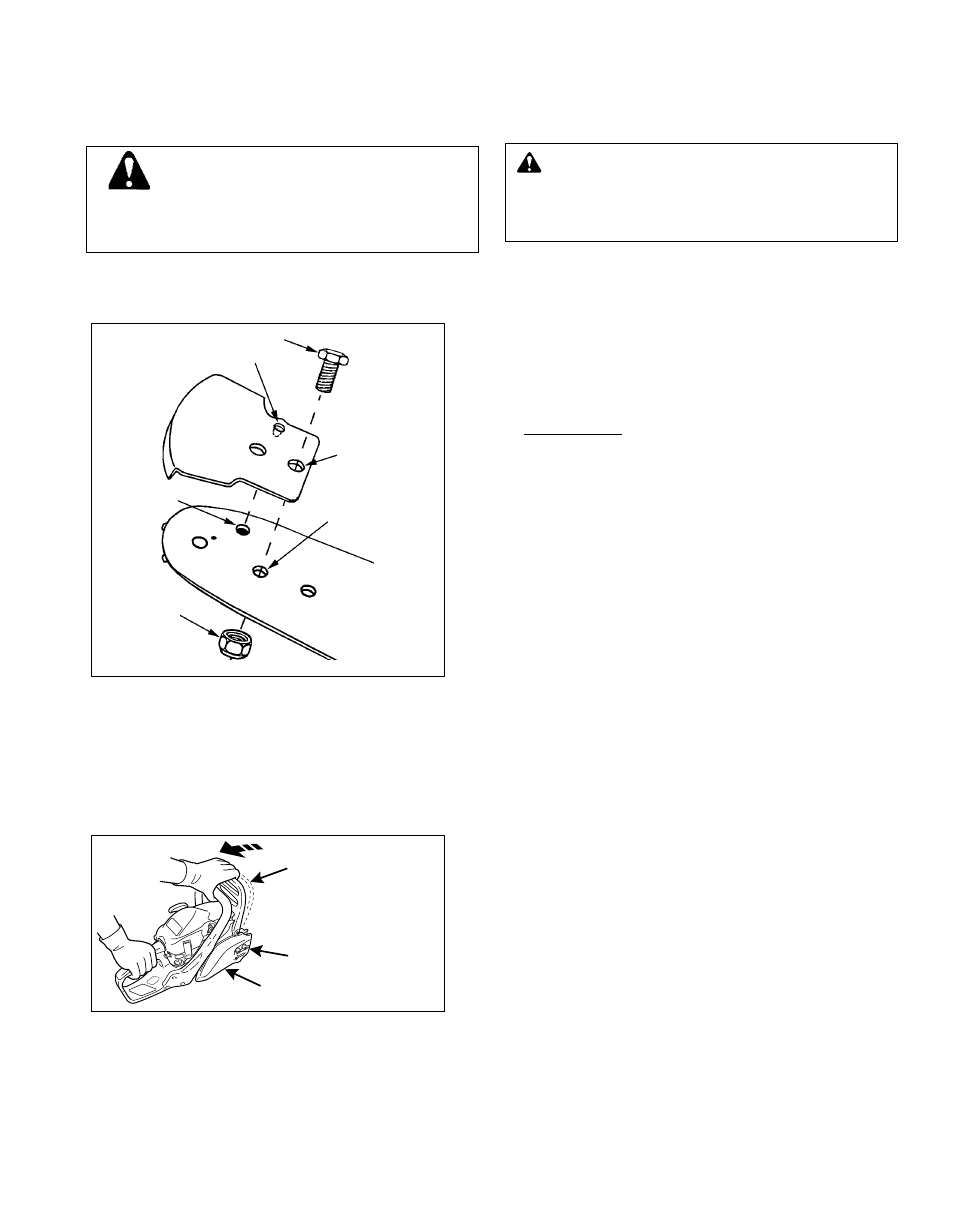

KICK GUARD ® TO BAR INSTRUC-
TIONS
1. Install bolt (A) in rear hole (B) of Kick Guard ® and
through front hole (C) in guide bar.
2. IMPORTANT: Dimple (D) in Kick Guard ® must en-
gage recess (E) in guide bar.
3. Tighten nut (F) and bolt (A) using 11 mm (7/16 in.)
wrenches until snug. Make certain Kick Guard ® is
flush against guide bar.
4. Tighten nut (F) 1/8 additional turn.
5. Check to make certain Kick Guard ® is tight on guide
bar.
GUIDE BAR AND SAW CHAIN IN-
STALLATION/REMOVAL
1. Release the cylinder cover latches, and remove the
cylinder cover.
2. Remove spark plug lead.
3. Remove two clutch cover nuts and remove clutch
cover.
4. Remove bar and saw chain if necessary. See “Main-
tenance and Care” section for guide bar/saw chain
maintenance procedures.
Clutch cover
Brake lever
(Front hand guard)
Two nuts
Unlock chain brake
warning
Using improper replacement components or remov-
ing safety devices may result in serious or fatal
injury.
