7

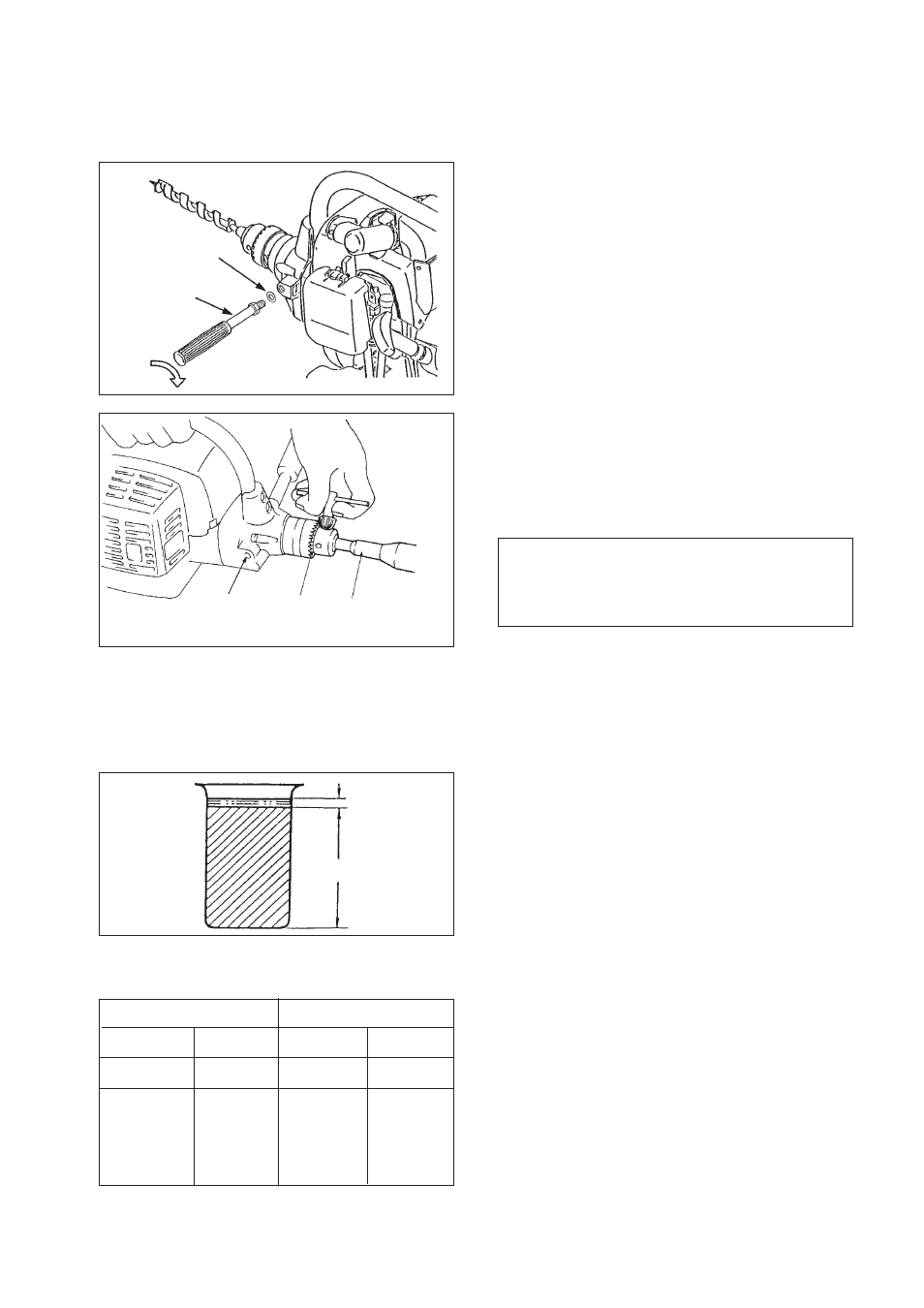

ASSEMBLING
• Insert the front handle to the machine, and turn
clockwise.
(TIGHTEN THE SCREW FIRMLY)
- To operate front handle with right hand,
remove right plug then reverse sides when
installing handle and plug.
FRONT HANDLE
Front handle
DRILL BIT
• Insert the drill bit (not provided with unit) until it
reaches the bottom of the chuck, then back it
out slightly; tighten the chuck laws evenly and
completely.
Drill bit
Chuck
(Tighten three points evenly)
IMPORTANT
Use drill bits suited for the material being
drilled and for the depth of hole required.
OPERATION
CHECK UP OF NUTS AND OTHER
HARDWARES
• Check up loose nuts, bolts and screws before
using the unit every day.
FUEL STATEMENT
Oil 1
50
GASOLINE - Use 89 Octane [(R+M) / 2] gasoline
or gasohol known to be good quality- Gasohol may
contain maximum 10% ethyl (grain) alcohol or 15%
MTBE (methyl tertiary- butyl ether). Gasohol
containing methyl (wood) alcohol is not approved.
OIL - ECHO brand premium two-strokes 50 : 1 oil
is preferred. Mix oil and gasoline/gasohol according
to Instructions on the oil container label.
MIXING - Follow directions on the container.
Gasoline
Fuel mix chart (50 : 1)
US METRIC
GAS OIL GAS OIL
GAL. FL.OZ. L mL
1 2.6 4 80
2 5.1 8 160
5 12.8 20 400
Washer
Plug
