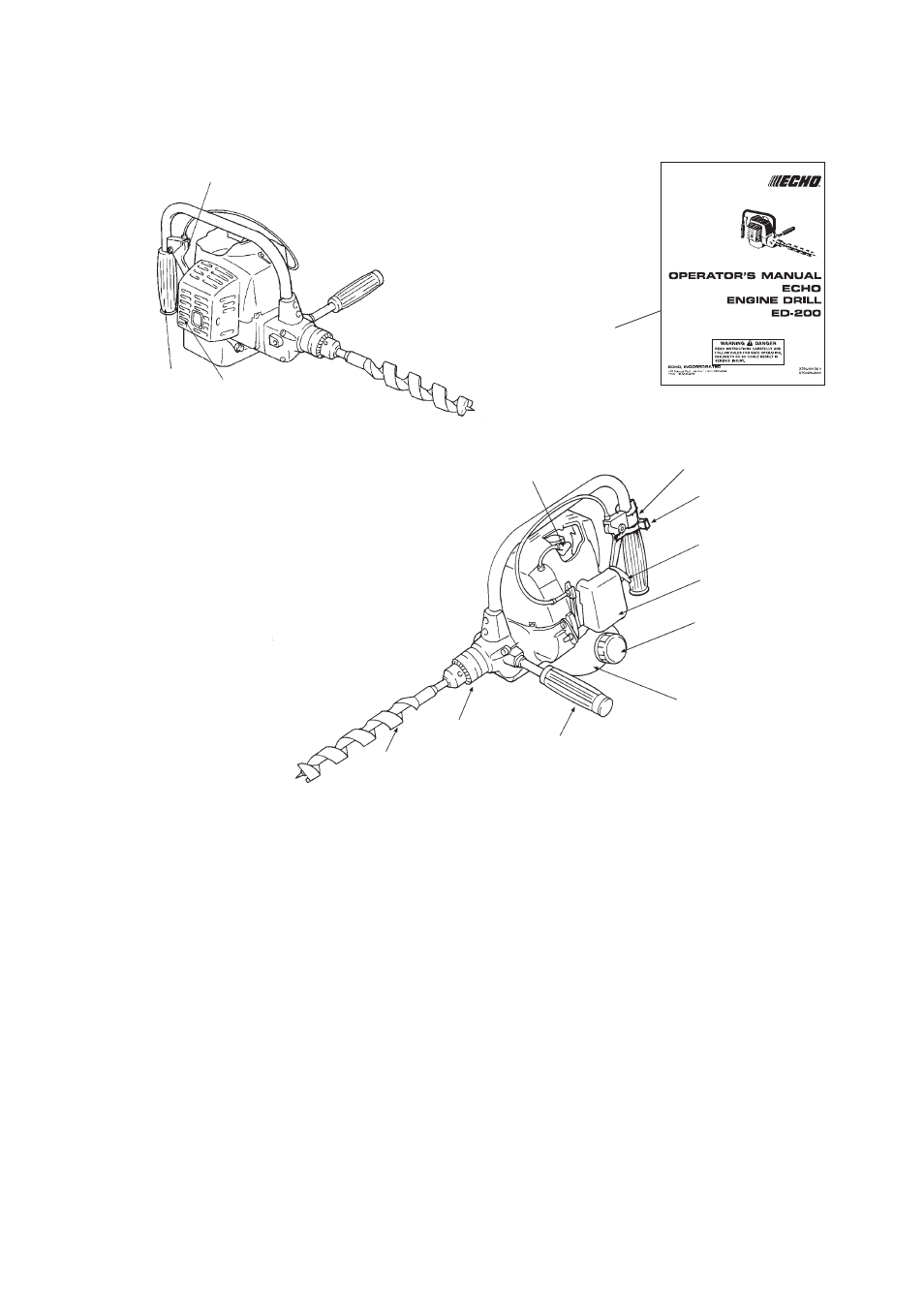

DESCRIPTION
1
11
10
5
8
13
14
12
2
3
4
9
7
6
1. Operator’s manual - Included with unit. Read
before operation and keep for future reference
to learn proper, safe operating techniques.
2. Throttle trigger - Device activated by the
operator’s finger, for controlling the engine
speed.
3. Rear handle - Handle located furthest from the
drill bit.
4. Silencer cover
5. Drill bit - Not included with unit.
6. Chuck
7. Front handle - Handle located on the front
gear case.
8. Fuel tank - Contains fuel and fuel filter.
9. Fuel tank cap - For closing the fuel tank.
10. Air cleaner cover - Covers air filter.
11. Starter handle - Pull handle to start the engine.
12. Throttle trigger lockout - Device that prevents
the accidental operation of the throttle trigger
until manually released.
13. Ignition switch - Device for allowing the
engine to be started and stopped.
14. Spark plug
