9

EN

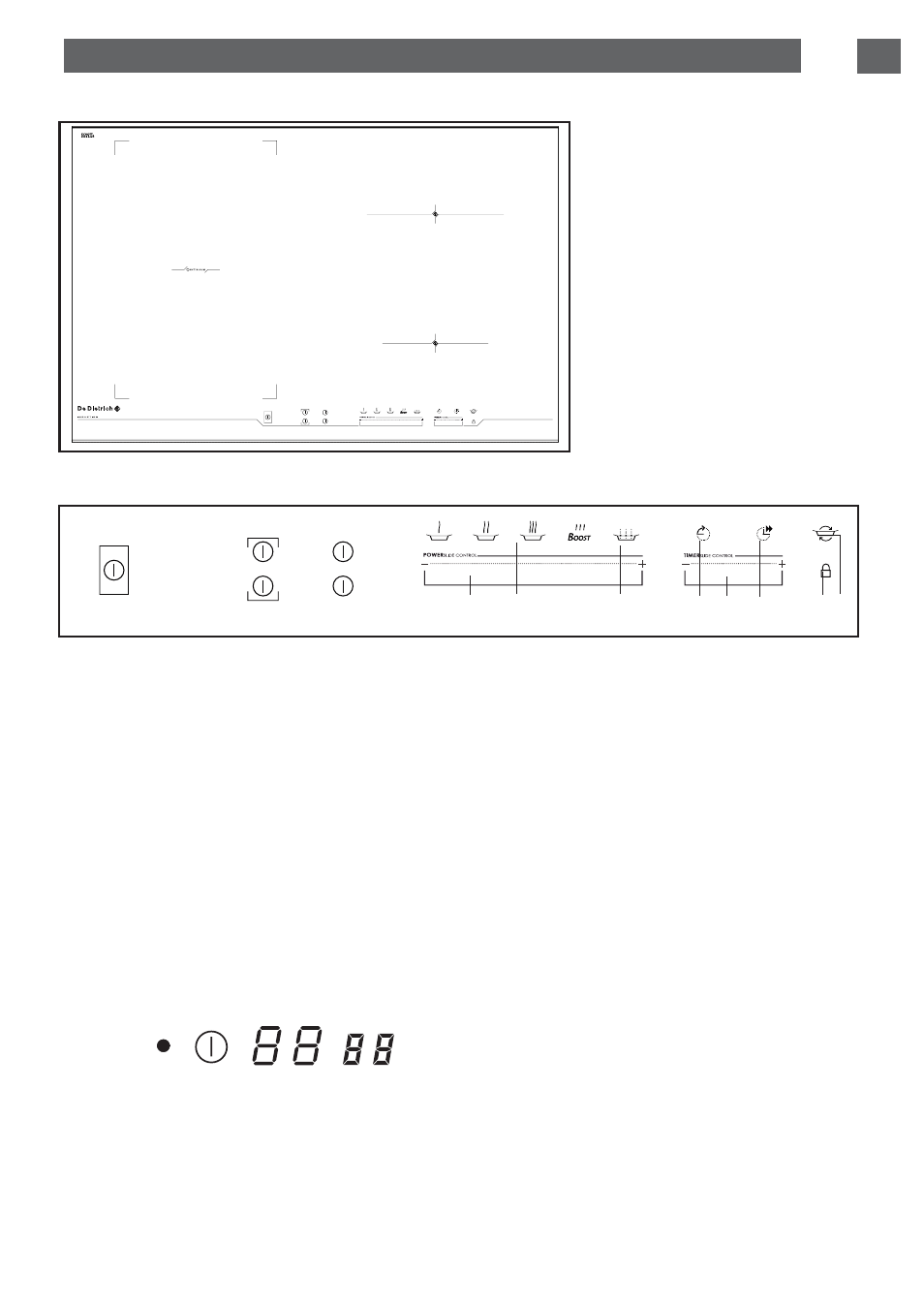

2 / USING YOUR APPLIANCE

DTI1047GC - DTI1167XE

Overall dimensions (L x l) -
DTI1047C - DTI1047GC : 65 x 51
DTI1167XE : 78.2 x 50.7
Cut-out Recess (L’ x l’)
DTI1047C - DTI1047GC : 56 x 49
DTI1167XE : 75x49.6

00325

For DTI1167XE

3600 W

23 cm

3100 W

16 cm

2200 W

For DTI1047C et GC

4600 W

If there is no cookware on the selected zone, your adjustments will delete automatically after a
few moments.

Adjustment buttons

These buttons allow you to adjust power,
timer, programmer... for each of the selected
zones.

H

B

OIL

function

I power preselection

J recommended timer

K

E

LAPSED

T

IME

function

L locking - unlocking - Clean lock

M

S

WITCH

function

N power slider

O timer slider

Selector buttons

Use these buttons to select, turn on and turn
off the cooking zones. When a zone is selec-
ted, you will see it light up, and you can adjust
its settings.

A front C

ONTINUUM

zone

B rear Continuum zone

C complete C

ONTINUUM

zone

E 16 cm zone.

F zone 23 cm.

Indicator for
selected zone

Power
display

Timer display

For a selected zone

B

A

C

F

E

H

I

J

K

L M

N

O
