2 / USING YOUR APPLIANCE
•
Adjustment buttons
These buttons allow you to adjust power,
timer, programmer... for each of the selected
zones.
H
B
OIL
function
I power preselection
J recommended timer
K
E
LAPSED
T
IME
function
L locking - unlocking - Clean lock
M
S
WITCH
function
N power slider
O timer slider
If there is no cookware on the selected zone, your adjustments will delete automatically after a
few moments.
DTI1177X
Overall dimensions (L x l) -
DTI1117X : 93 x 51
Cut-out Recess (L’ x l’)
DTI1117X : 90 x 49
00327
4600 W
23 cm
3100 W
16 cm
2200 W
28 cm
4600 W
B
A
C
F
E
D
•

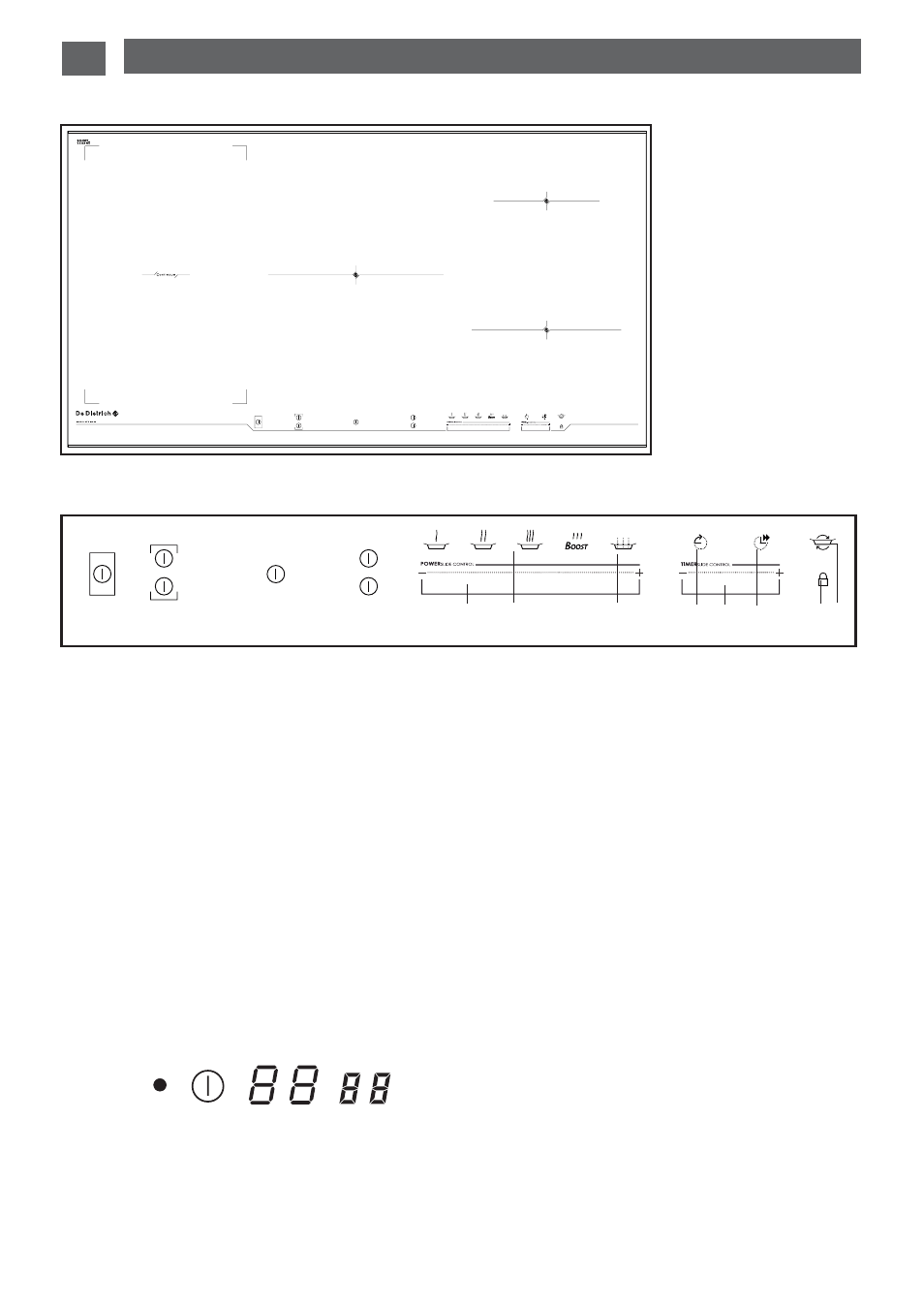

Selector buttons
Use these buttons to select, turn on and turn
off the cooking zones. When a zone is selec-
ted, you will see it light up, and you can adjust
its settings.
A front C
ONTINUUM
zone
B rear C
ONTINUUM
zone
C complete C
ONTINUUM
zone
D 28 cm zone.
E 23 cm zone.
F 16 cm zone.
Indicator for
selected zone
Power
display
Timer display
For a selected zone
H
I
J
K
L M
N
O
