Model NGA2000 HFID
Electronics Assembly
656943
Hex Nut
Screw
e. Electronics Assembly
The electronics assembly must be re-
moved from the chassis if replacement of
any of the following components is nec-
essary:
Power Supply Board
Safety Board
Computer Analysis Board
Preamp Assembly
Sensor Board
Case Temperature Sensor
Case Pressure Switch
1. Remove the hex nut and screw as
shown in Figure 4-11 below.
2. Lay electronics assembly on bench,
do not disconnect cables or tubing.

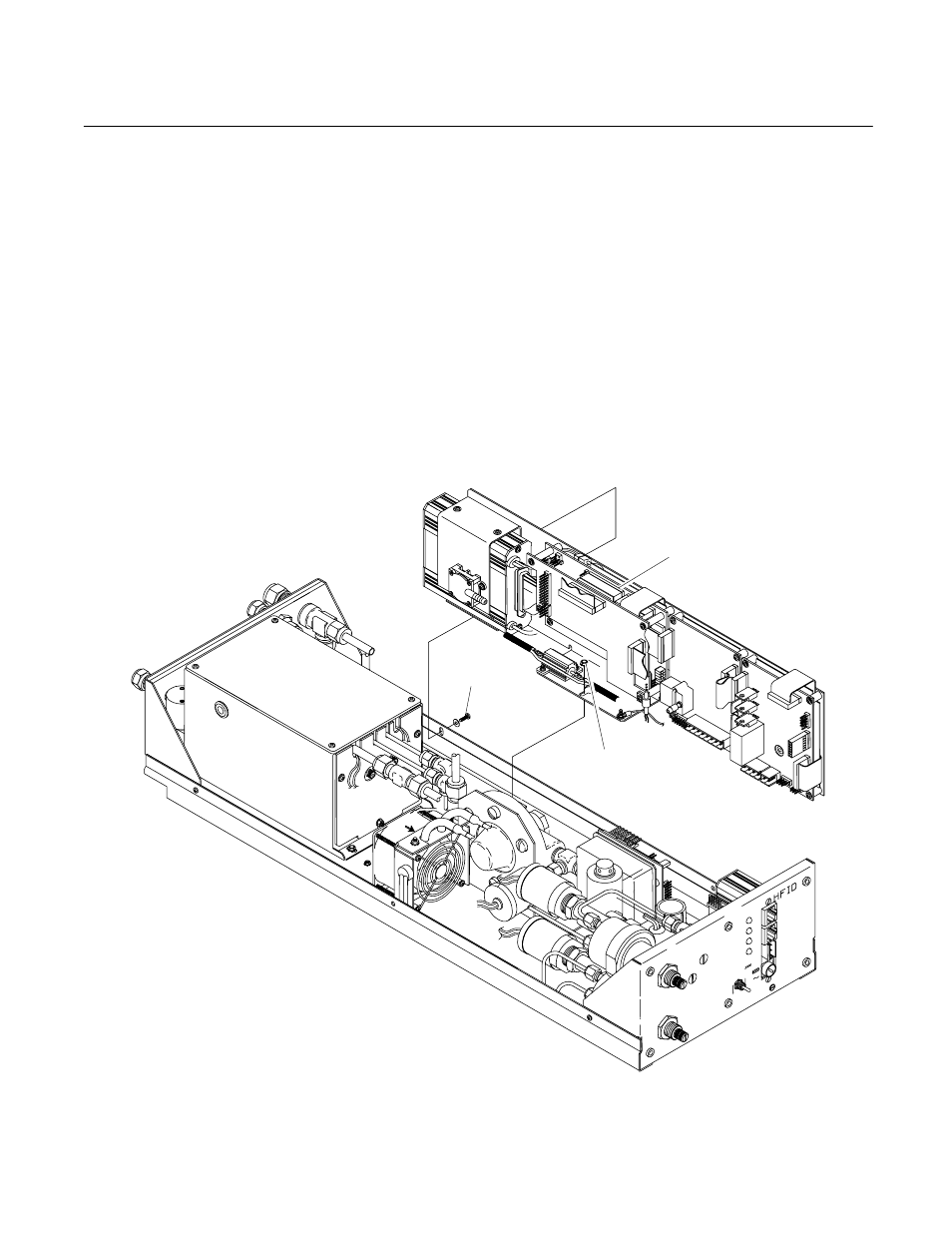

Figure 4-11. Removing Electronics Assembly from Chassis
