Package Contents
• 1 ENKVM-PS2 KVM Switch with Attached Cables
• 1 User Guide
Requirements
Console
• A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be
using on any computer in the installation
• A PS/2 Mouse
• A PS/2 Keyboard
Computers
The following equipment must be installed on each computer that is to be connected to the
system:
• A VGA, SVGA or Multisync video port
• A 6-pin Mini-DIN (PS/2 style) mouse port
• A 6-pin Mini-DIN (PS/2 Style) keyboard port

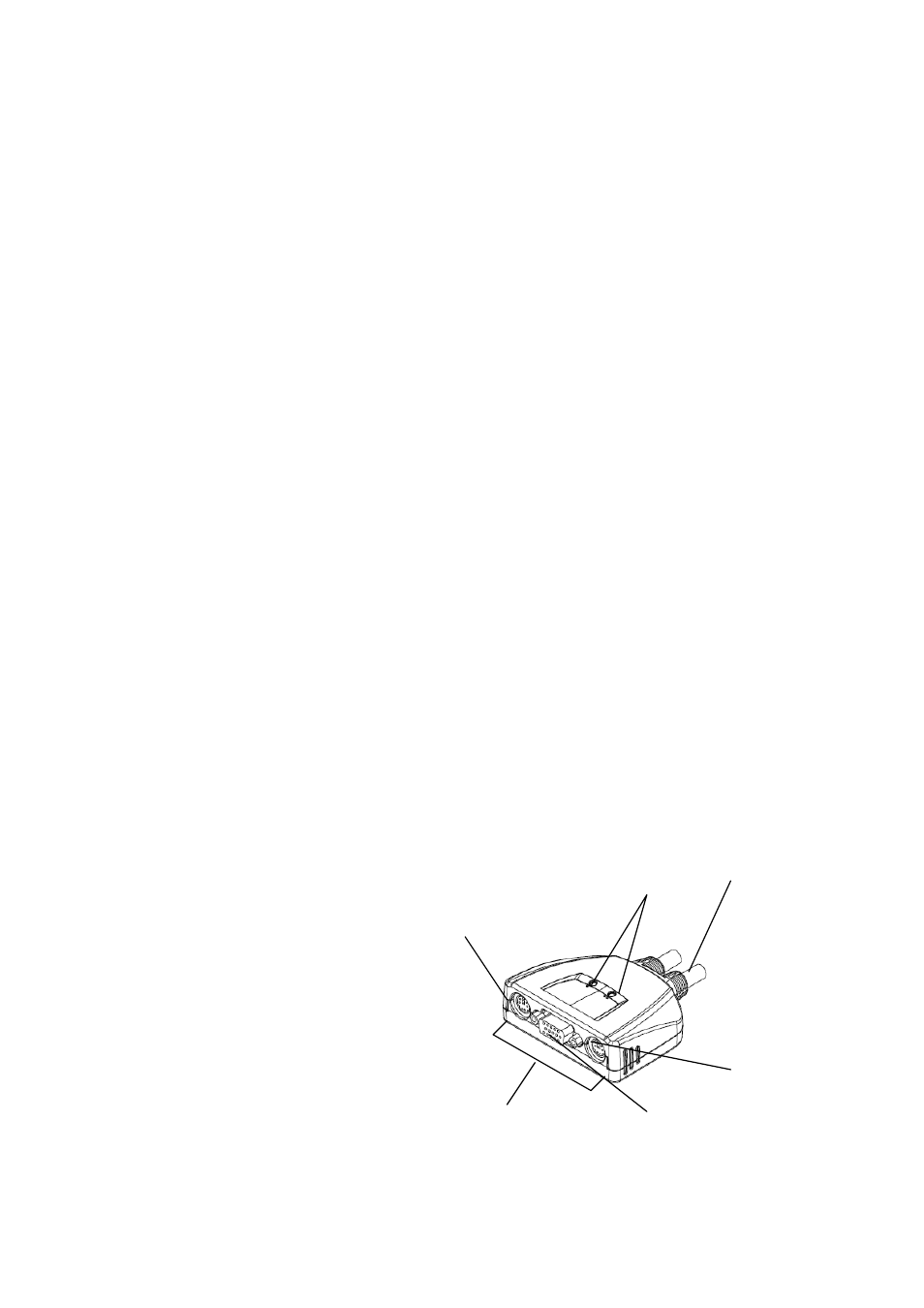

Overview
1. Port LEDs
2. KVM Cables
3. Console Ports
4. PS/2 mouse connector
5. PS/2 keyboard connector
6. Video Connector
1
2
3
4
6
5
