SAF-HOLLAND XL-LG315-01 Formula 150 Landing Gear (Manufactured after March 1, 2000) User Manual
Page 4
5
6
5
7
13
14
15
38
10 12
11
9 20
8
4
17
18
1
1
19
14
5
6
5
7
13
15
OPTIONAL
46
48
49
50
47
34
10
12 8
32
9
8
19
28
30
31
35
5
27
29
33 9
16
26
23
(5 req.)
25
24
(5 req.)
34
35
37
38
4
20
21
19
22
44
45
39
41
36
42 43
38
40
2
3

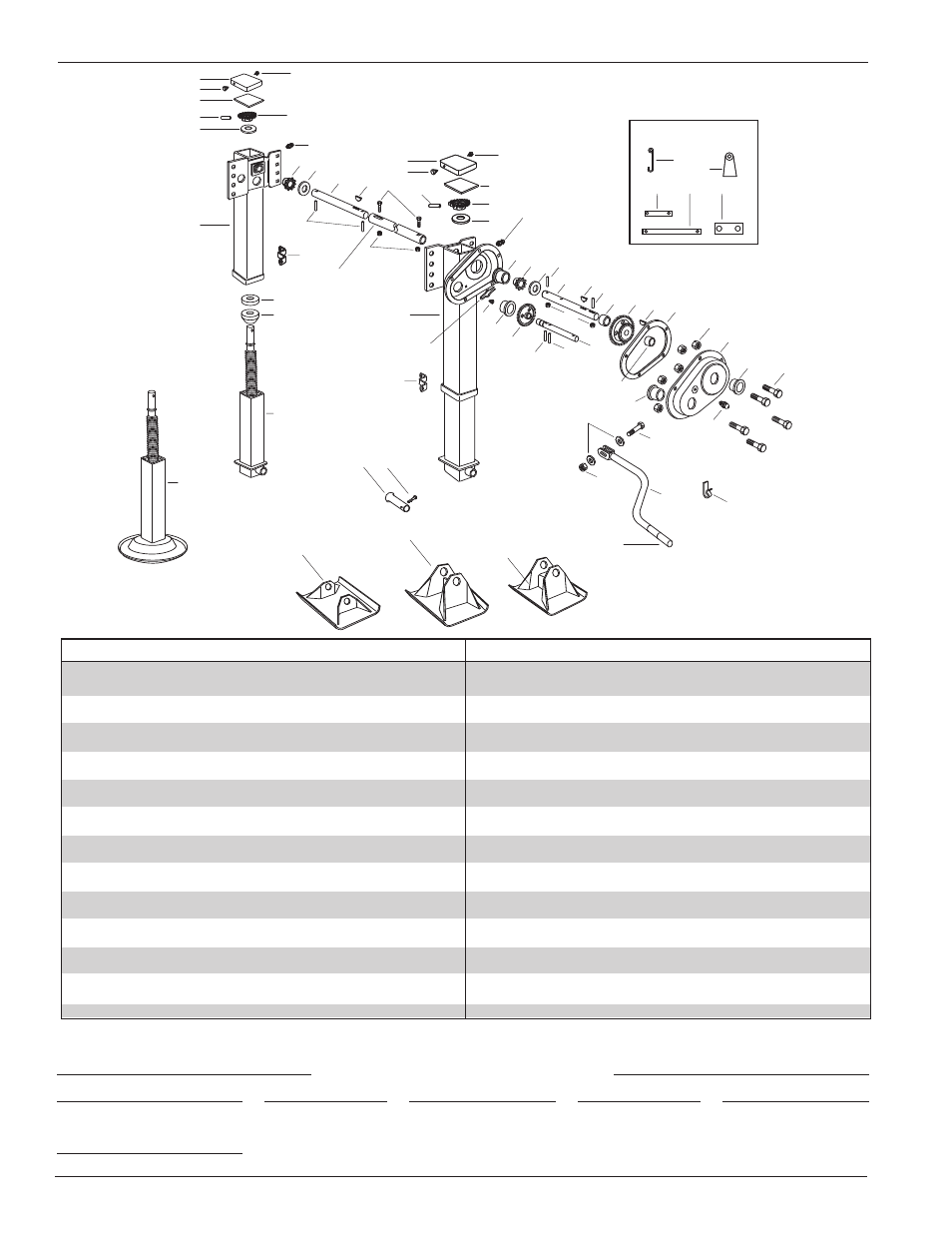

F150 EXPLODED VIEW for Parts Manufactured AFTER March 1, 2000
4
1
See chart 2 (over)
2
Inner leg and screw assembly
2
See chart 1 (over)
1
Single speed outer leg
3
See chart 1 (over)
1
2-speed outer leg
4
LG0266
2
Brace ear
5
XB-STS-008-11
5
Self-tapping screws
6
XA-06218
2
Upper leg cover
7
XB-LG0893
2
Leg cover gasket
8
XB-SP-014-27
4
.25˝ x 1.50 spring pin
9
XB-KEY-018-02
3
Woodruff key
10
XB-LG1823-01
2
Pinion gear
11
See chart 1 (over)
1
Single speed drive shaft
12
XB-PW-016-19
2
Washer
13
XA-LG0570
2
Bevel gear
14
XB-GP-052-21
2
.38˝ x 2˝ groove pin
15
XB-PW-016-62
2
Washer
16
LG2126
1
Spacer
17
XB-BRG-013-77
2
Thrust bearing
18
XB-LG0544
2
Collar
19
XB-SLN-012-04
5
.38˝-16 locknut
20
XB-HHC-050-42
3
.38˝-16 x 2.25 hex bolt
21
XB-PW-016-03
2
.38˝ flat washer
22
XA-01918
1
Crank handle assy.
23
XB-3103
5
.25˝-28 locknut
24
XB-CX-14-28-F-58
5
.25˝-28 x .62˝ hex bolts
25
XA-06224-A
1
Gearbox cover
26
XB-01791
1
Gearbox cover gasket
27
See chart 1 (over)
1
Crank shaft
28
XA-0306-1
1
Drive cluster gear .88˝ bore
29
XB-03370-1
1
Shifter spring
30
XB-21-S-187-1000
1
Roll pin .19˝ x 1˝
31
XA-01792
1
Pin
32
See chart 1 (over)
1
2-speed drive shaft
33
LG2131-02
1
Driven cluster gear (1˝ bore)
34
XB-0307-PM
2
Bearing (1˝ diameter)
35
XB-0308-PM
2
Bearing (.88˝ diameter)
36
LG0094-6825
1
Cross shaft
37
LG2125
1
Tube spacer
38
XB-GRF-022-16
5
Lube fitting
39
LG0056
2
Skid foot (2.00˝ high)
40
LG0055
2
Skid foot (4.5˝ high) standard
41
LG0055-01
2
Skid foot (4.5˝ high) hvy. duty
42
LG0070-02
2
Axle
43
XB-HHC-050-69
2
.38˝-16 x .75˝ hex bolt
44
XB-LG0085
1
Crank holder
45
XA-01918-1
1
Extra long crank (optional)
46
LG0086-01
1
Crank hanger (optional)
47
XA-02195
1
Extension bracket (optional)
48
XA-02198-2
1
Short ext. shaft (optional)
49
XA-02198-1
1
Long ext. shaft (optional)
50
XA-02197
1
Coupling
ITEM
PART NUMBER
NO.
PART NAME
ITEM
PART NUMBER
NO.
PART NAME
