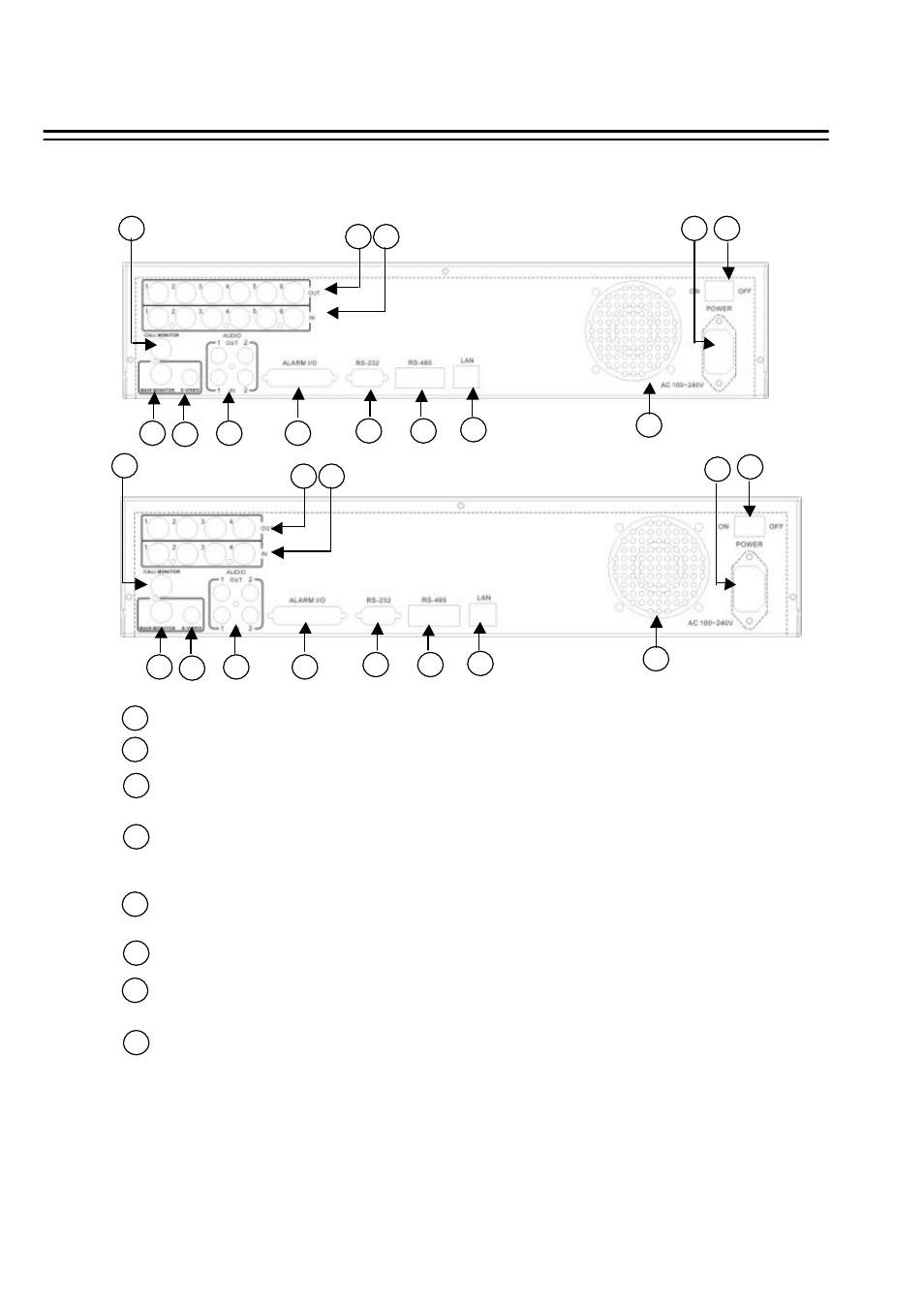

Back Panel Connections
2. Back Panel Connections
1
ON/OFF:
Main on/off switch.
2
AC100~240V
power socket
.
3
VIDEO IN:
BNC-sockets for composite signal video inputs, automatic 75 Ohm
termination. (EDSR400:1~4, EDSR600: 1~6)
4
VIDEO OUT: Loop through video outputs for each input channel.
(EDSR400:1~4, EDSR600: 1~6)
5
6
CALL MONITOR: BNC-socket Call (Spot) Monitor, composite signal. (Full screen display only)
7
8
MAIN MONITOR: BNC-socket main monitor, composite signal. Main monitor provides
Full screen, Multi-screen, Setup.
S-VIDEO:
Mini-DIN socket main monitor, S-Video signal. Main monitor provides
Full screen, Multi-screen, Setup.
3
AUDIO IN :
2 x Cinch socket audio input 500 mV max., 10 KOhm impedance.
AUDIO OUT: 2 x Cinch socket audio output 500 mV max. at 10 KOhm
EDSR-600
1
2
4
3
5
6
7
8
9
10
11
12
13
1
2
4
3
5
6
7
8
9
10
11
12
13
EDSR-400
