Reliability Test
No Test Items Conditions
1 High temperature storage test Ta = 80 ºC, 240 hrs
2 Low temperature storage test Ta = -20 ºC, 240 hrs
3 High temperature & high humidity operation test Ta = 50 ºC, 80% RH, 240 hrs
4 High temperature operation test Ta = 70 ºC, 240 hrs
5 Low temperature operation test Ta = 0 ºC, 240 hrs
6 Thermal shock Ta = -20 ºC ~ 80 ºC (0.5 H), 100 cycle
7 Vibration test (non-operating) Frequency: 10~500Hz; Gravity/AMP: 1.5G; Period: X,Y,Z 30 min
8 Shock test (non-operating) Gravity: 220G; Pulse width: 2ms, half sine wave ±X, ±Y, ±Z Once for each direction
9 Electro-Static discharge test (non-operating) Air: 150pF, 300 ohm, 15KV; Contact: 150pF, 330ohm, 8KV
.

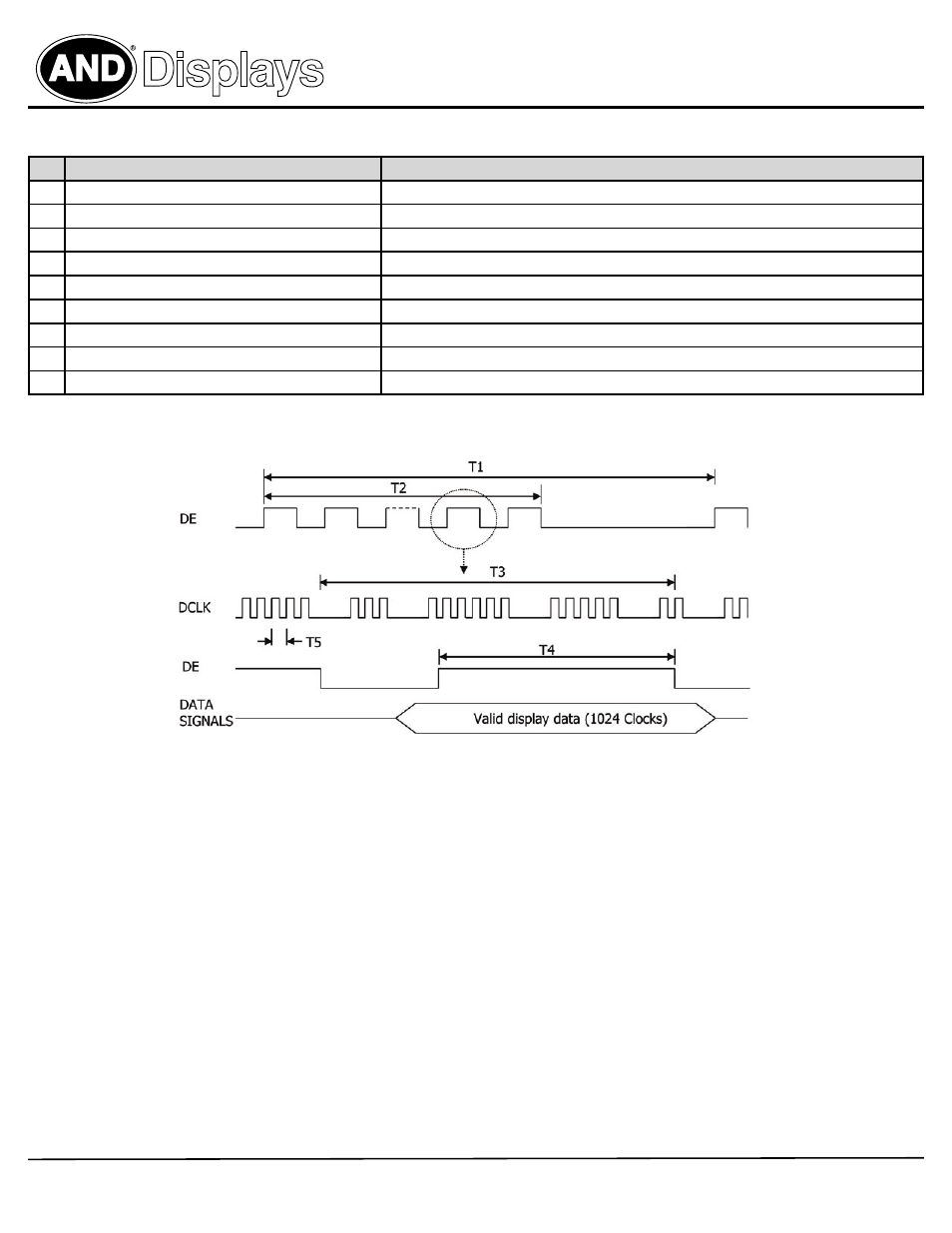

Signal Timing Waveforms of Interface Signal (De Mode)
