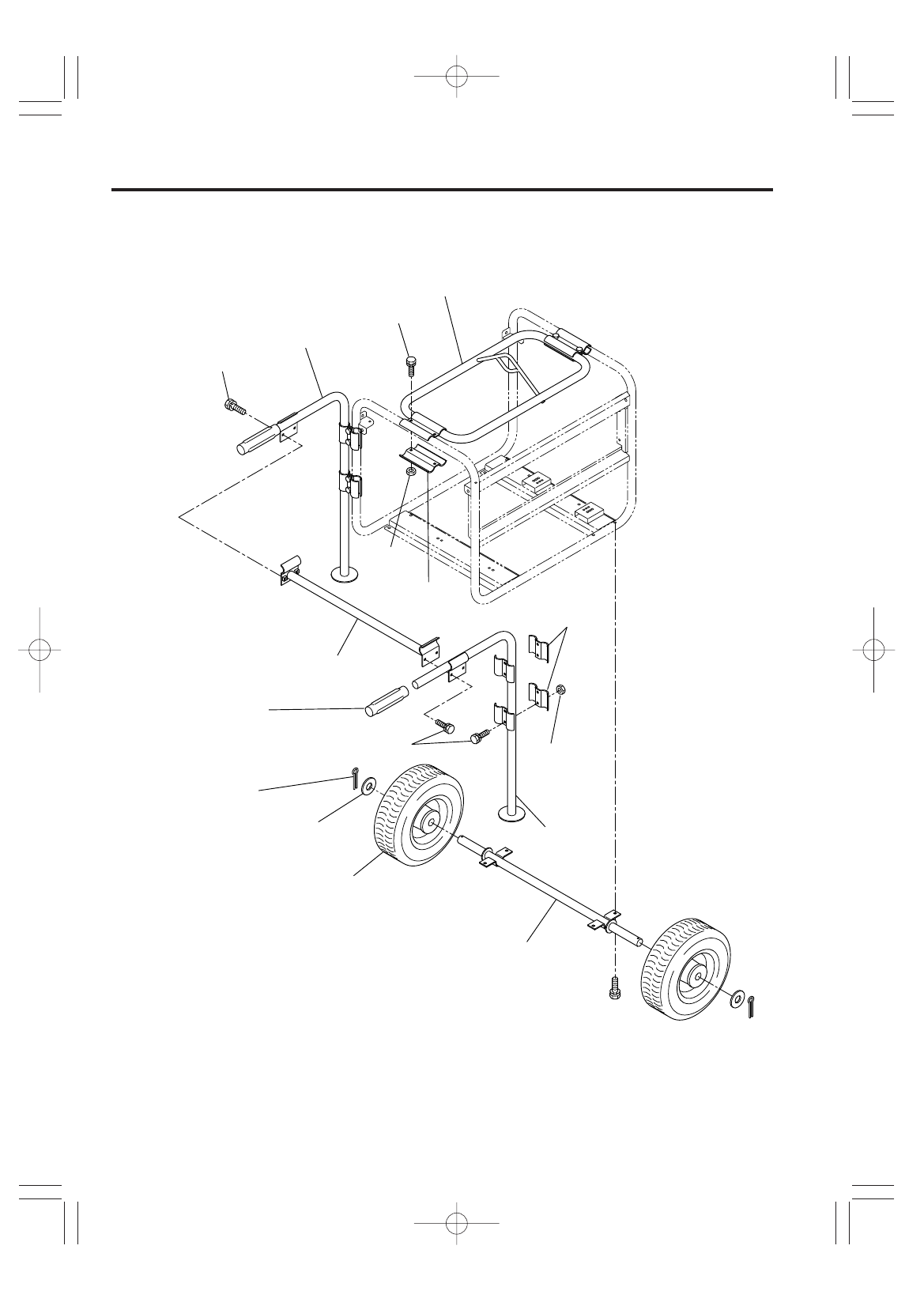

13. OPTIONAL PARTS

34

HANDLE GUIDE

M8 BOLT and WASHER

M8 BOLT and WASHER

HANDLE (R)

HANDLE (L)

WHEEL SHAFT

HANDLE
BRACKET

BRACKET

M8 NUT

M8 NUT

ROOF PIPE

WHEEL

WASHER

PIN

GRIP

M8 BOLT and WASHER

HOW TO INSTALL THE WHEEL, HANDLE AND ROOF PIPE
