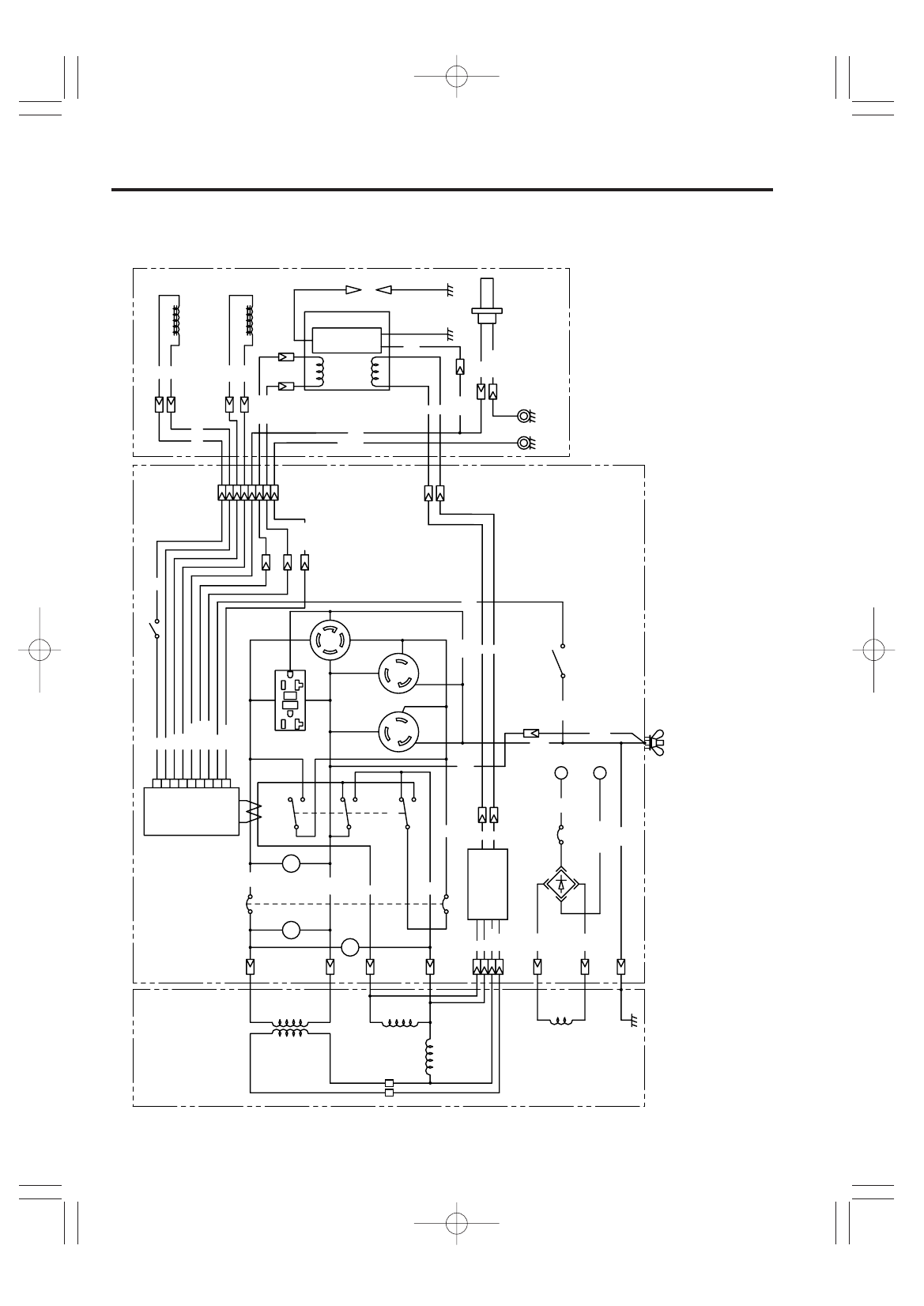

12. WIRING DIAGRAM
32
Wiring color cord Blk
Black
Brn/W
Brown/White
R
Red
Blk/W
Black/White
Grn
Green
W
White
Blu
Blue
Grn/W
Green/White
Y
Yellow
LBlu
Light blue
Org
Orange
Brn
Brown
Gry
Gray
: : : : :
: : : : :
: : :
P
Hr
V
+ -
120V 120V
120/240V
8 9 1 5 3 6 7 4
REC1
REC3
REC2
GENERATOR
CONTROL BOX
Field Winding
AC Winding 2 AC Winding 1
DC Winding
2W
W
W Blu Blu Blk/W Grn/W Grn/W Blk Grn/Y
Sub coil
Blu
Blk
No-fuse breaker
Pilot lamp
Hour meter
R
W
Voltmeter
LGrn Brn R W Brn Brn
W
Or
Brn/W
Grn
DC output terminal
Engine switch
Circuit breaker
Diode stack Assy
AVR
Earth (Ground) terminal
Grn
Grn
Grn
Grn
Full power switch 120/240V
Idle
control
unit and Fuel
cut unit
AC output
receptacle
(120/240V )
AC output
receptacle
(120V )
REC2
AC output
receptacle
(120V )
AC output
receptacle (120V )
Idle control switch
ENGINE
Blk
Blk
Blk Blk/W
Y Y
Y Y
Y Y
Oil sensor
Grn/Y
Blk
Grn/W
Spark plug
Grn
Grn
/ Y
Blk
W W
W
W
Solenoid
Blu Blu
Fuel cut solenoid
Grn/W
Charge
coil
Exciter
coil
Ignition coil
Brush (+)
Brush (- )
Recoil starter model
