BATTERY INSTALLTION (Electric starter model)
Recommended Battery: A capacity of 12V-24AH or larger.
Death, personal injury and/or property damage may occur unless
instructions are followed carefully.
Use battery of recommended capacity.
Turn the starter switch to the "STOP" position when mounting or
dismounting battery. When mounting battery, connect the positive (+)
cable first and then the negative (-) cable to the battery. Be careful not to
short battery cables. When dismounting battery, disconnect negative (-)
cable first.
RED CABLE : To positive (+) terminal
BLACK CABLE : To negative (-) terminal
Should the connection be made in incorrect manner, the generator will
be broken.
Tighten bolts and nuts on terminals securely so they will not be
loosened by vibration.
Disconnect battery cables when charging battery.
WARNING
RED CABEL
+
RED CABEL
+
-
+

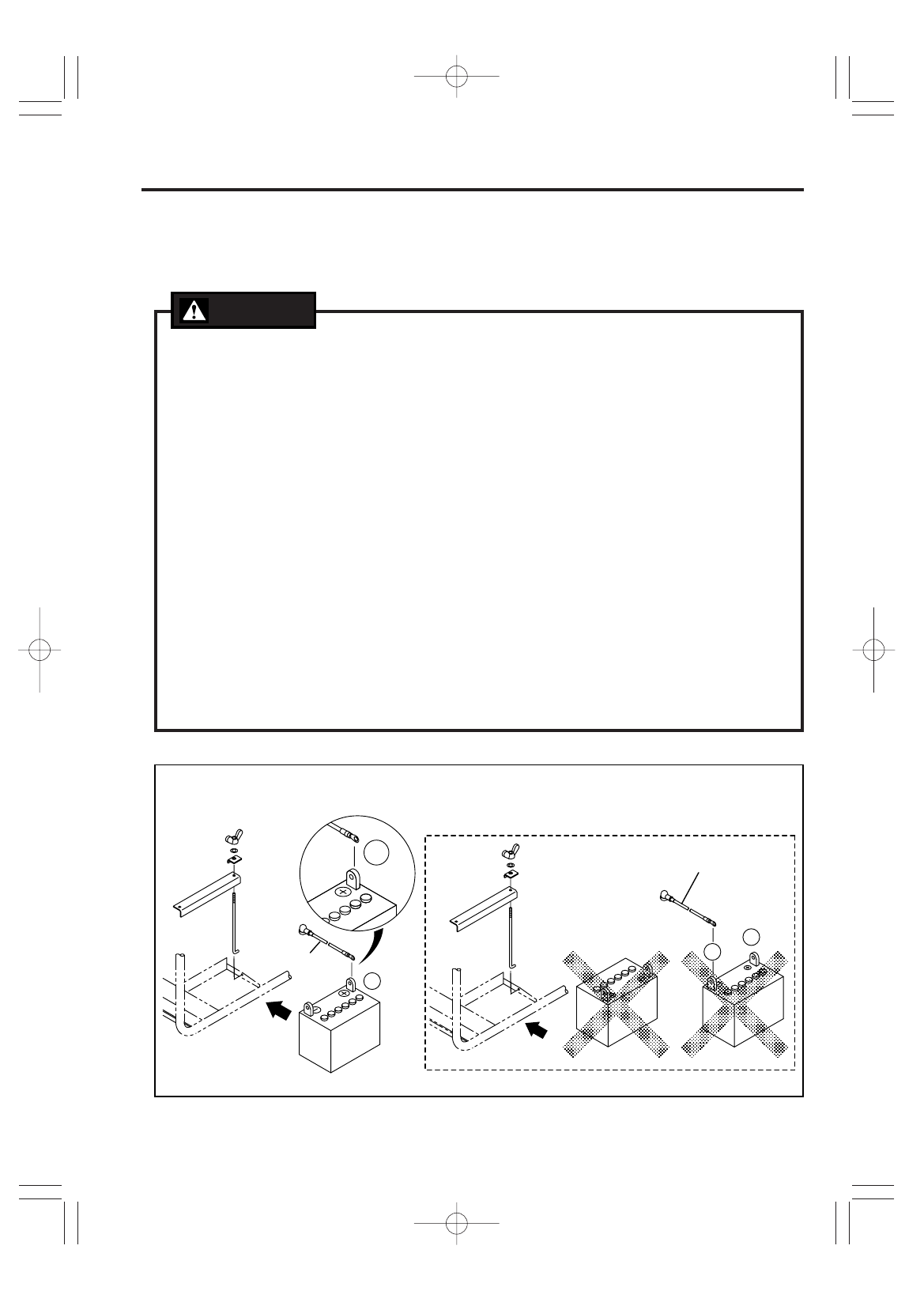

"HOW TO" INSTALL BATTERY (See "OPTIONAL PARTS")
