49
5.5.1
Display application’s track numbers
Select this checkbox to display the track number in addition to the name.
5.5.2
Clear All
Click
Clear All to set all strips to being automatically assigned.
5.6
Layouts

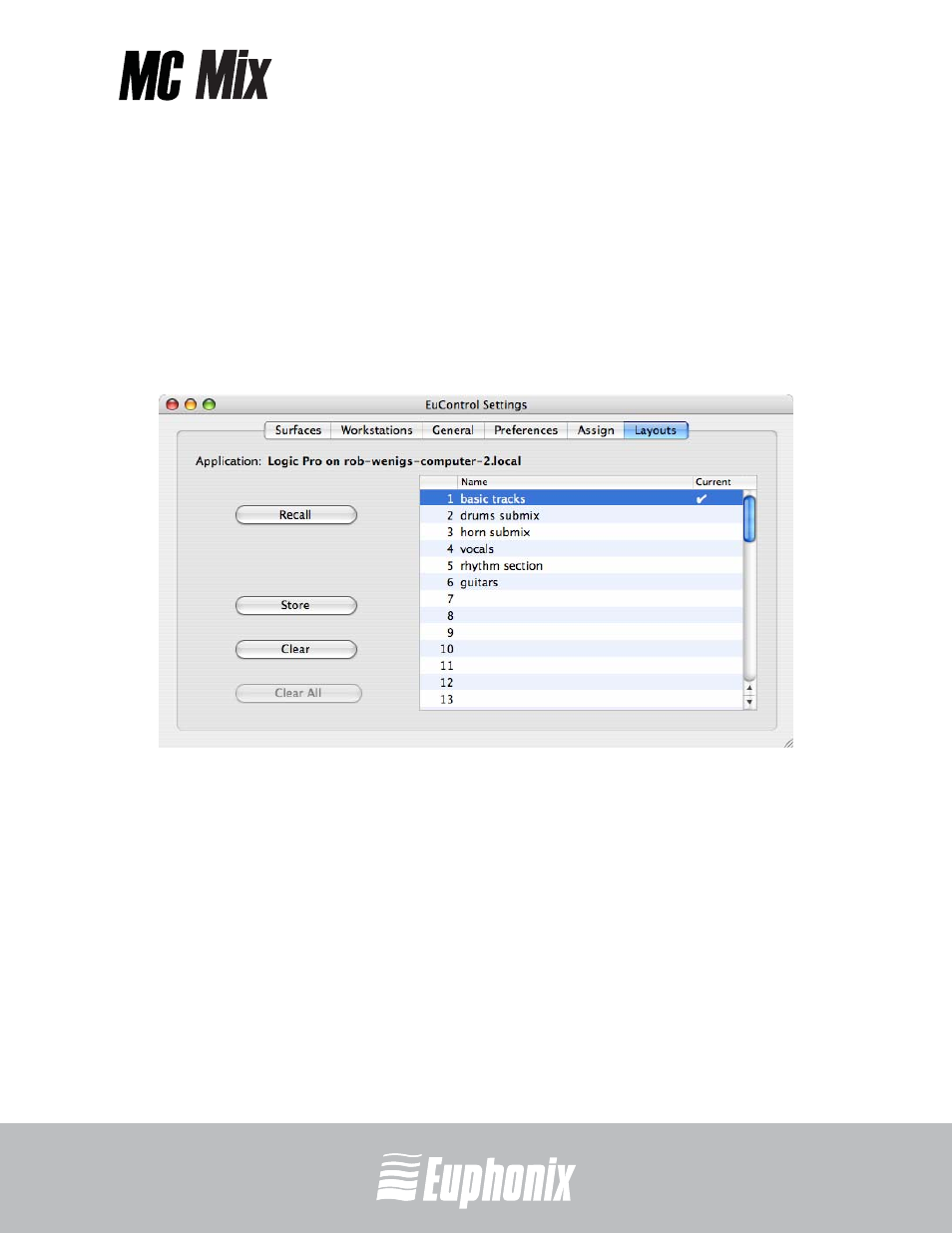

Figure 5-7 Layouts tab
The tracks assigned to the MC Mix strips can be saved as a Layout. A Layout is
created from the current strip assignments and can receive a name. It can then
be recalled at a later time.
5.6.1
Recall
Highlight a name in the Name column and click
Recall to recall that Layout.
5.6.2
Store
Click
Store to store the MC Mix’s current track assignments as a new Layout.
Double-click the default name in the Name column to edit the name.
