MODELS
UltraVista Plus Installation and Operations Manual 3
Models
Front View
Indicators

Power

Input

Status
Rear View
Connectors

Sync – For future
enhancements

USB – to control
PC via USB A/B
cable (supplied)

Input – DVI-D

Output (4) – DVI-I

Power

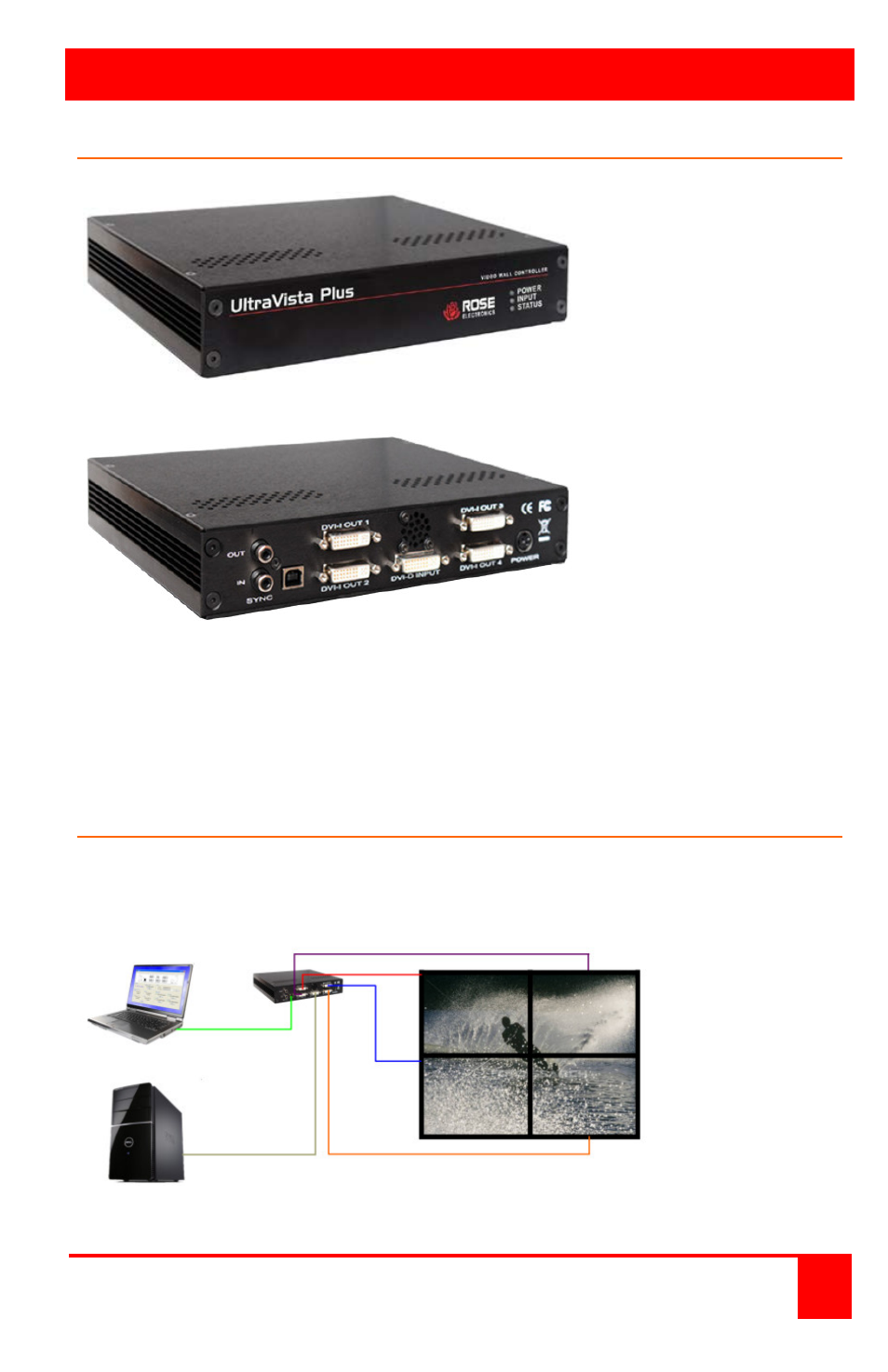

Figure 1. Models
Installation
Figure 2 shows a typical installation. Be sure to install the provided USB
drivers on the control computer before connecting it to the UltraVista Plus’s
USB port.
Figure 2. Typical Installation
DVI Source
