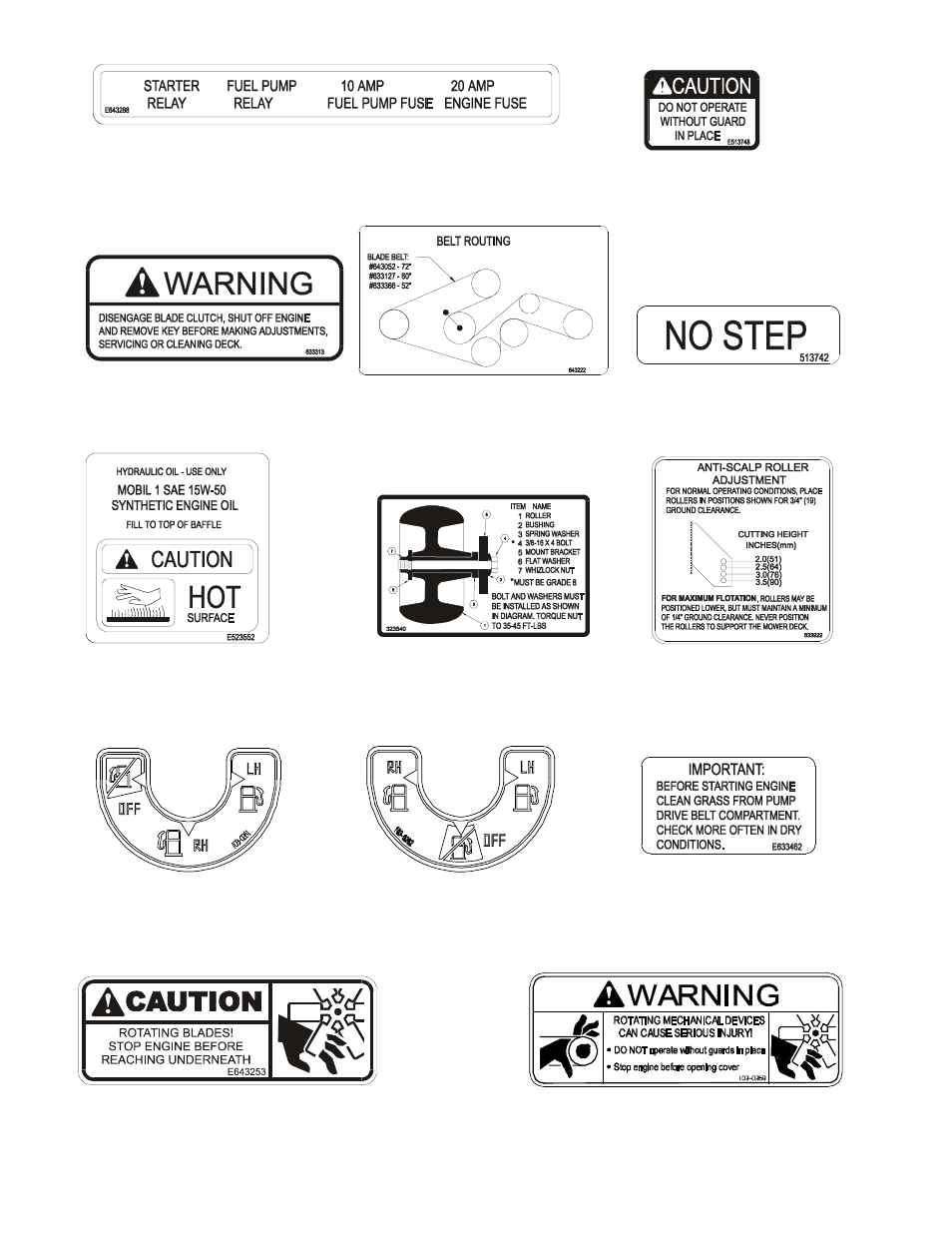

- 9 -

PART NO. 1-643222
LOCATION: Left of Center on Mower

Deck, Under Floor Pan

PART NO. 1-513748
LOCATIONS: -Rubber Heat Shield

Behind Seat (serial

numbers 259,9999
and lower only)

-Bottom Side of
Floorpan

PART NO. 1-633313
LOCATION: RH Side on Top
Front Mower Deck

PART NO. 1-633462
LOCATION: Rubber Heat Shield
Flap behind Seat

PART NO. 103-0368
LOCATION: Rubber Heat Shield Flap behind Seat

PART NO. 1-323540
LOCATION: Left Rear Corner Top
of Mower Deck

PART NO. 1-513742
LOCATION: Top of Mower Deck Belt

Shields, Left and Right Sides

PART NO. 1-633922
LOCATION: Front Center on Top
of Mower Deck

PART NO. 1-523552
LOCATION: Top of Hydraulic
Reservoir, Under the Seat

Kawasaki Liquid-Cooled Units Only
PART NO. 1-643253
LOCATION: LH and RH Sides of Radiator Mount Plate

Kohler 26 HP EFI Units Only
PART NO. 1-643288
LOCATION: Panel behind LH Fuel Tank.

Kohler 26 HP EFI Units Only
PART NO. 103-0161
LOCATION: Below Center of

Console

All Units except Kohler 26 HP EFI
PART NO. 103-0162
LOCATION: Below Center
of Console
