Exmark Lazer HP User Manual

Page 13

- 8 -

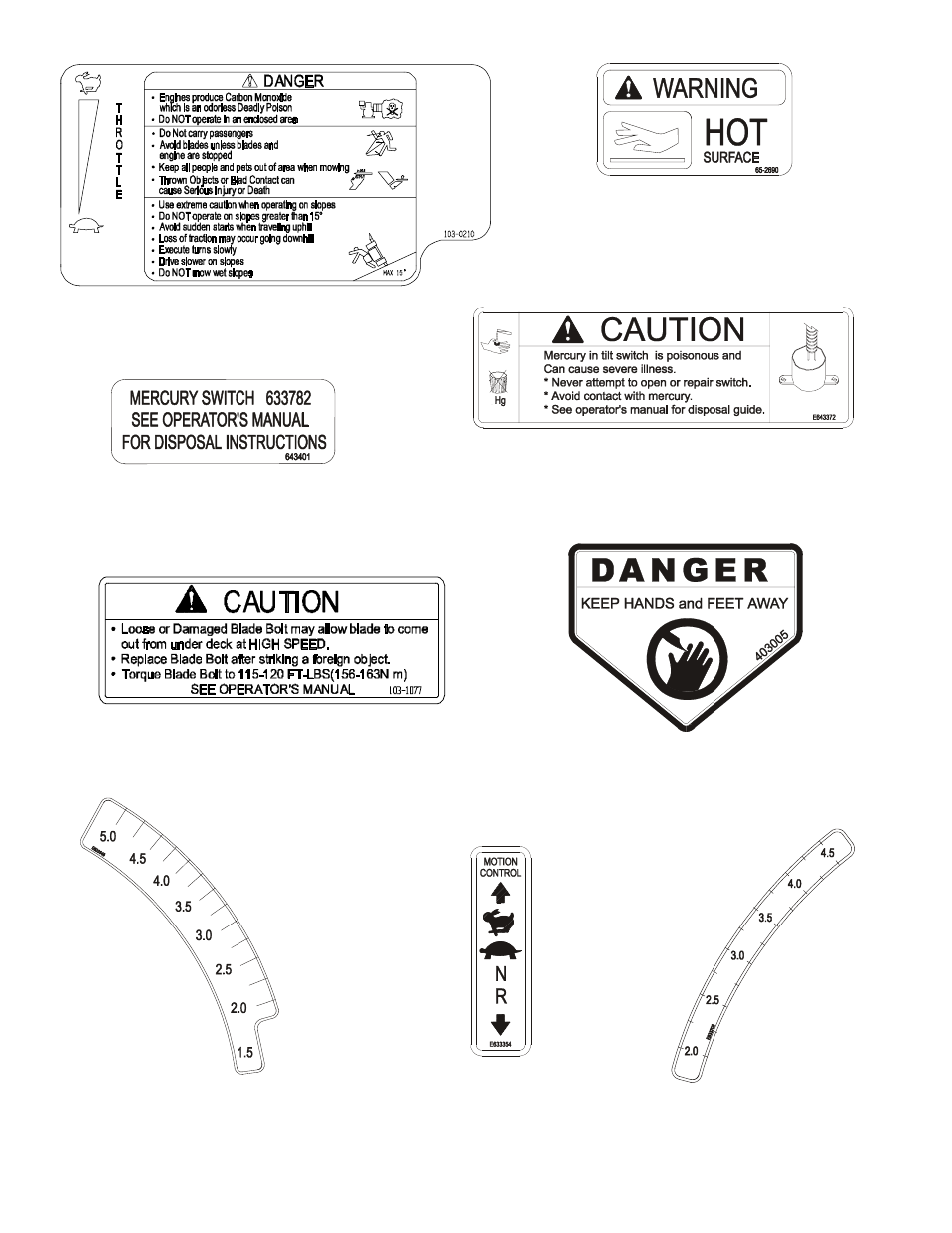

PART NO. 103-0210
LOCATION: RH Side of Console

Serial Nos. 251,999 and Lower
PART NO. 1-633354
LOCATION: Top of Console

PART NO. 1-633345
LOCATION: RH Side of Cutting
Height Adjustment Plate

PART NO. 1-633706
LOCATION: LH Side of Cutting
Height Adjustment Plate

PART NO. 1-403005
LOCATION: Left and Right Corners
of Mower Deck

PART NO. 65-2690
LOCATION: Top of Radiator Trim Plate

LH & RH Sides

Serial Nos. 220,000 and Higher
PART NO. 1-643401
LOCATION: On Tilt Switch

Serial Nos. 220,000 thru 251,999
PART NO. 1-643372
LOCATION: Top LH Side of Console, Under Front of Seat

PART NO. 103-1077
LOCATION: Top LH Side of Mower Deck

next to Stiffener
