5-2 Maintenance and Service Rosemount Analytical Inc. A Division of Emerson Process Management
Model 3081FG
13
12
11
10
STANDOFF
STANDOFF
ANALOG
BOARD
CPU BOARD
RIBBON
CABLE
29750006
15 14
9
1
2
3
6
8
7
5
4
1. Housing
2. O-ring
3. Lockwasher
4. Screw
5. Terminal End Cap
6. Terminal Block
7. Ground Screw
8. Washer
9. O-ring
10. PC Board Stack (CPU and Analog
Boards)
11. Display Board
12. Screw
13. Circuit End Cap
14. Screw
15. Cover Lock

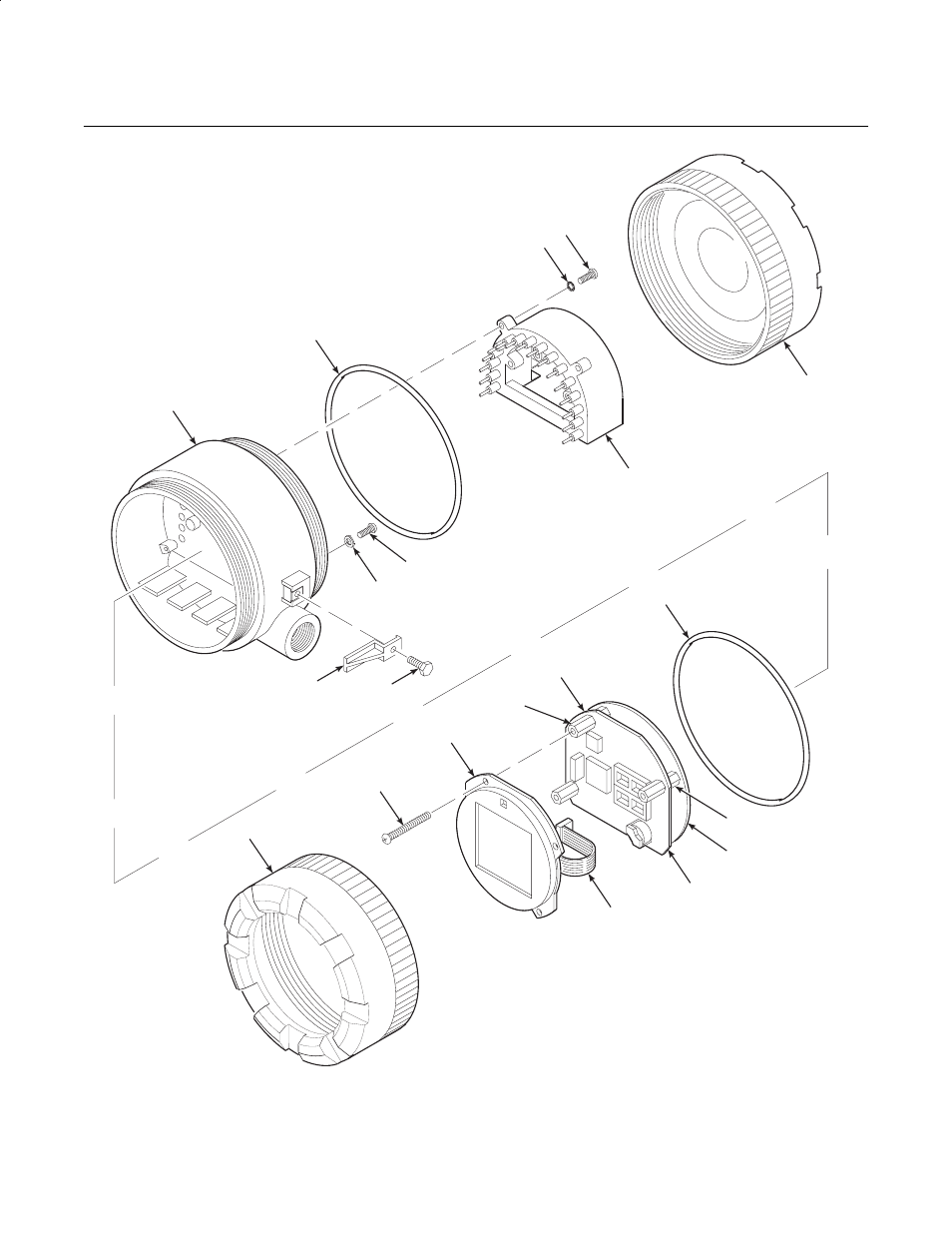

Figure 5-1. Two-Wire In Situ Oxygen Analyzer Exploded View
