GENERAL FRONT PANEL OPERATION

3.2.1

Front Panel Key Review

The basic principle of front panel operation is to use navigation keys (up, down, left and right) to navigate
among the menu items. Use “Enter” key to confirm a selection or enter the next level menu. Press “Menu
key to enter the Main Menu or exit from the current level of the menu.

3.2.2

Operation in Configuration Menu

Press “Menu” button to enter the Main Menu.

NOTE: If password is active, you will need to log in first. Refer to “4.2 Login” for information on logging in.

The menu (shown in Figure 3.3) is divided into 3 main sections.

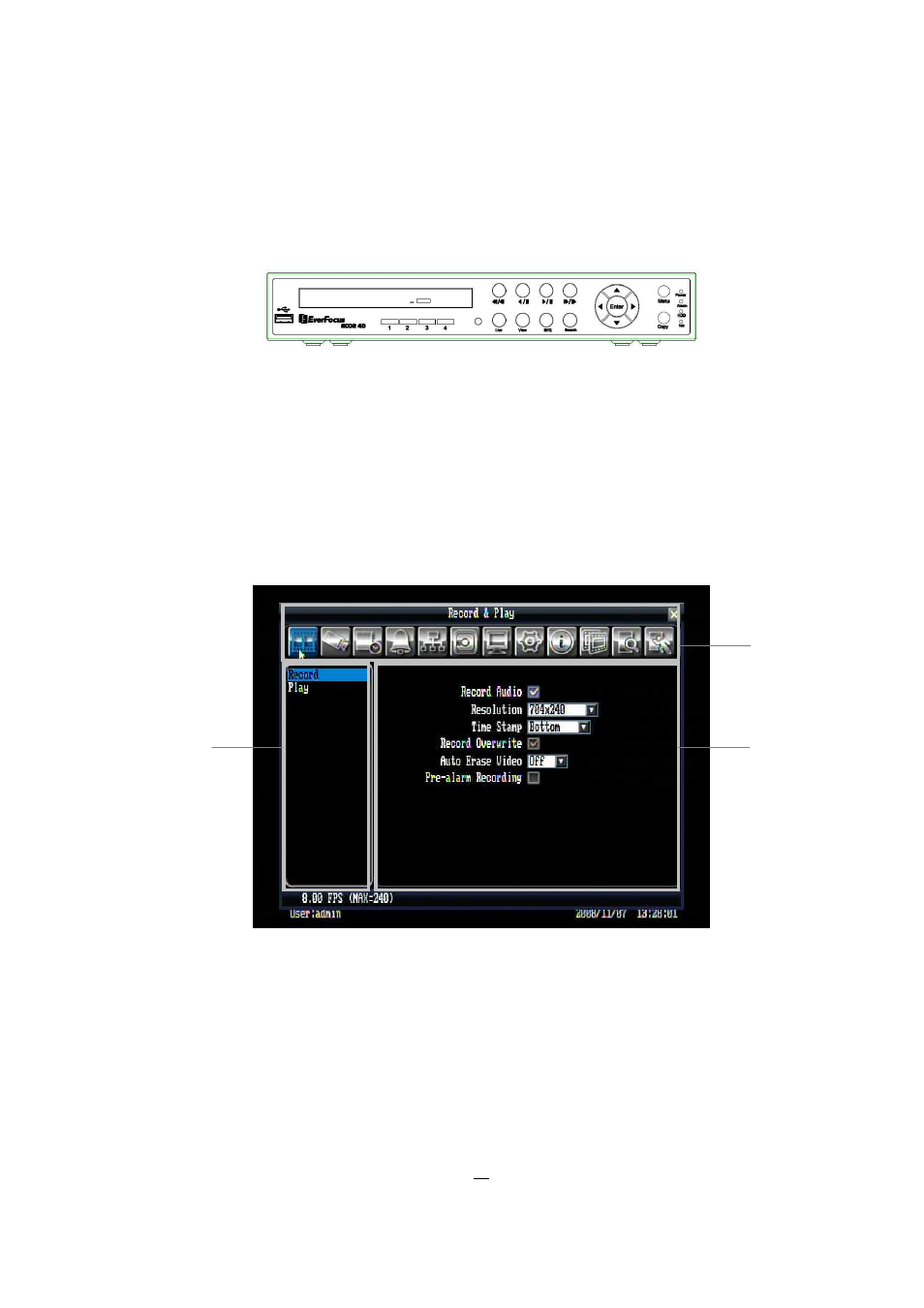

Figure 3.3 (OSD Menu)


1 In section 1, there are twelve setup options available. Use the arrow keys to highlight an icon and press

Enter” to select it.

2 In section 2, the main options for the selected icon will be displayed. Use the arrow keys to highlight an

option and press “Enter” to select it.

1

3

2
