11

2.4

NETWORK CONNECTION

ECOR DVR provides fast MPEG-4 format image transmission and network remote configuration.

ATTENTION: A monitor is required for initial network configuration. For more information about
network setup, please refer to Chapter 7.

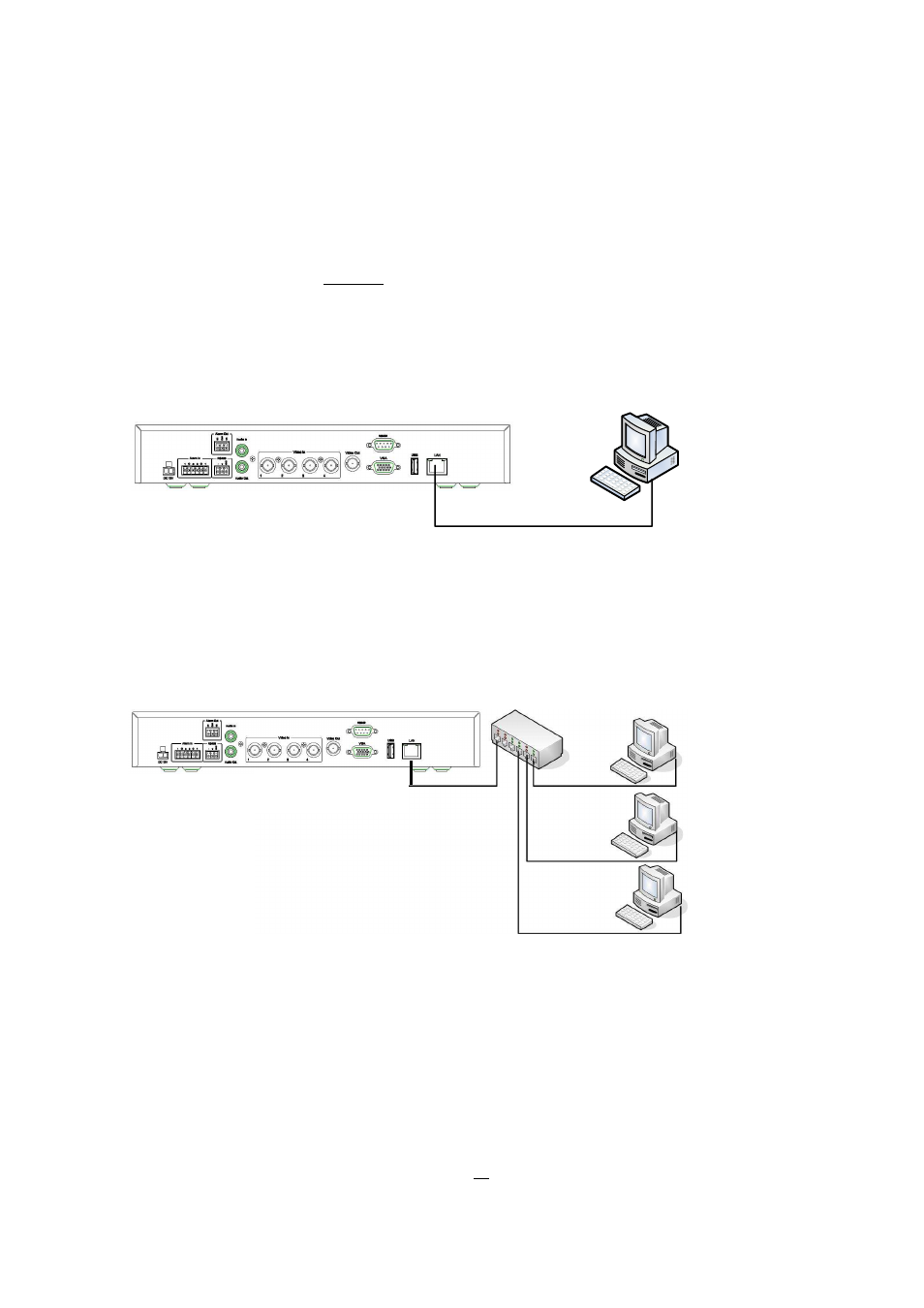

Physically, two basic types of connection are possible:

2.4.1

Direct PC Connection through Crossover Network Cable

Figure 2.1

The point-to-point connection of DVR and PC requires a crossover (crossed) network cable. This type of
connection is ONLY used for direct connection to a single PC.

Make sure that the PC is equipped with a 10/100/1000 Mbps compatible network connection.

2.4.2

Network Connection through Patch Cable

Figure 2.2

The connection to an existing network requires a normal patch cable (straight-through). The illustration
shows the connection to a network switch, router, or modem.
