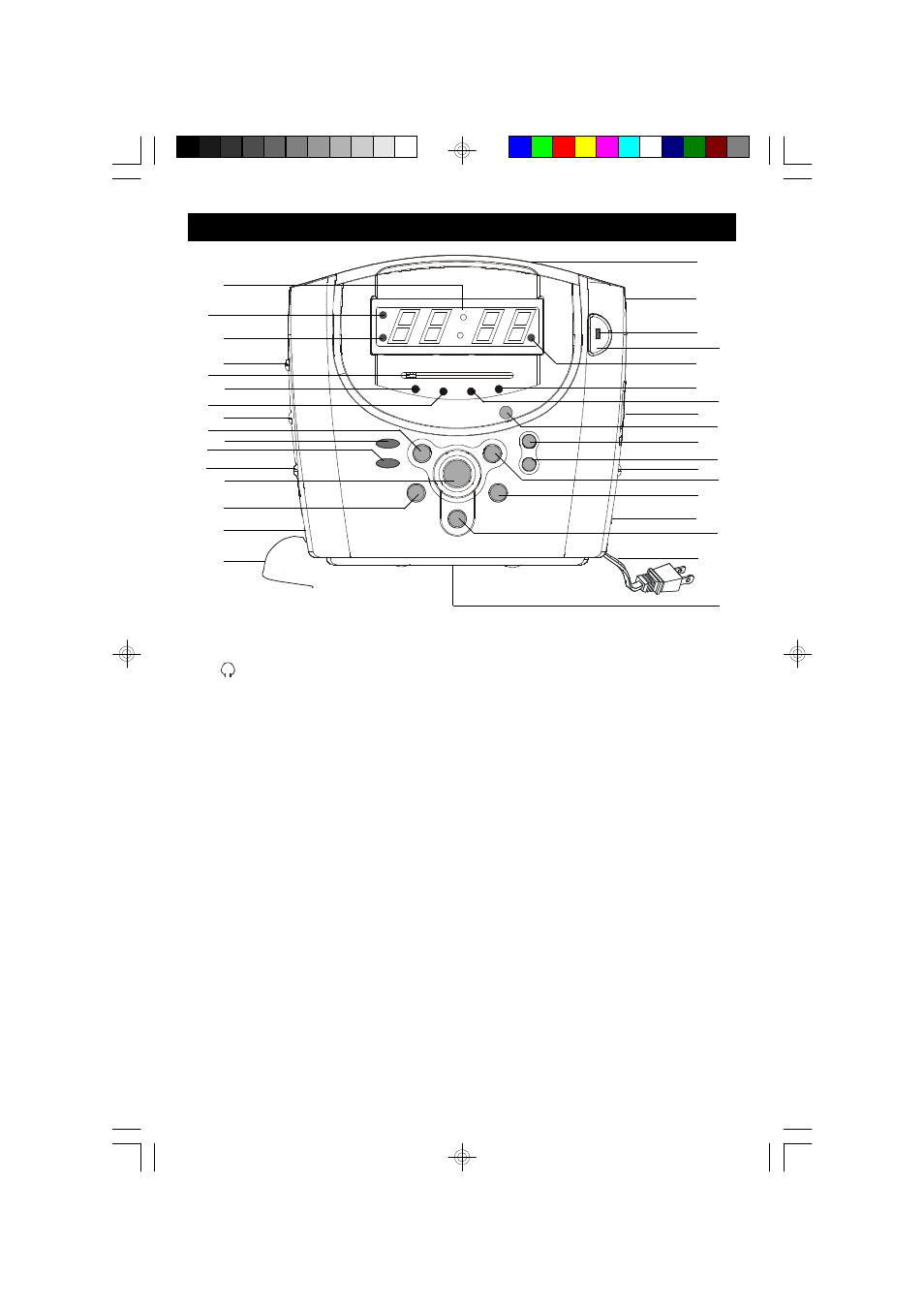

LOCATION OF CONTROLS AND INDICATORS
1.) FM Wire Antenna.
2.) Headphone Jack.
3.) STOP Button.
4.) SNOOZE Button.
5.) MUSIC/BUZZ Selector Switch.
6.) RANDOM/YEAR Button.
7.) CD DISPLAY/DATE Button.
8.) REPEAT/DAY Button.
9.) AL 2 (ADJ/ON/OFF) Selector Switch.
10.) REPEAT Indicator.
11.) RANDOM Indicator.
12.) Dial Pointer.
13.) AL 1 (ADJ/ON/OFF) Selector Switch.
14.) AL Indicator.
15.) PM Indicator.
16.) Multi-Function Display.
17.) CD Door.
18.) CD Door OPEN Tab.
19.) Power ‘On’ Indicator.
20.) POWER (On/Off) Button.
21.) LOW BATT Indicator.
22.) FM ST. Indicator.
23.) PROGRAM Indicator.
24.) TUNING Control.
25.) TIME Button.
26.) SKIP FWD/UP Button.
27.) SKIP REV/DOWN Button.
28.) CD/AM/FM/FM ST Selector
Switch.
29.) SLEEP Button.
30.) PLAY/PAUSE Button.
31.) VOLUME Control.
32.) PROGRAM/TIME ZONE Button.
33.) AC Power Cord.
34.) Battery Compartment.
