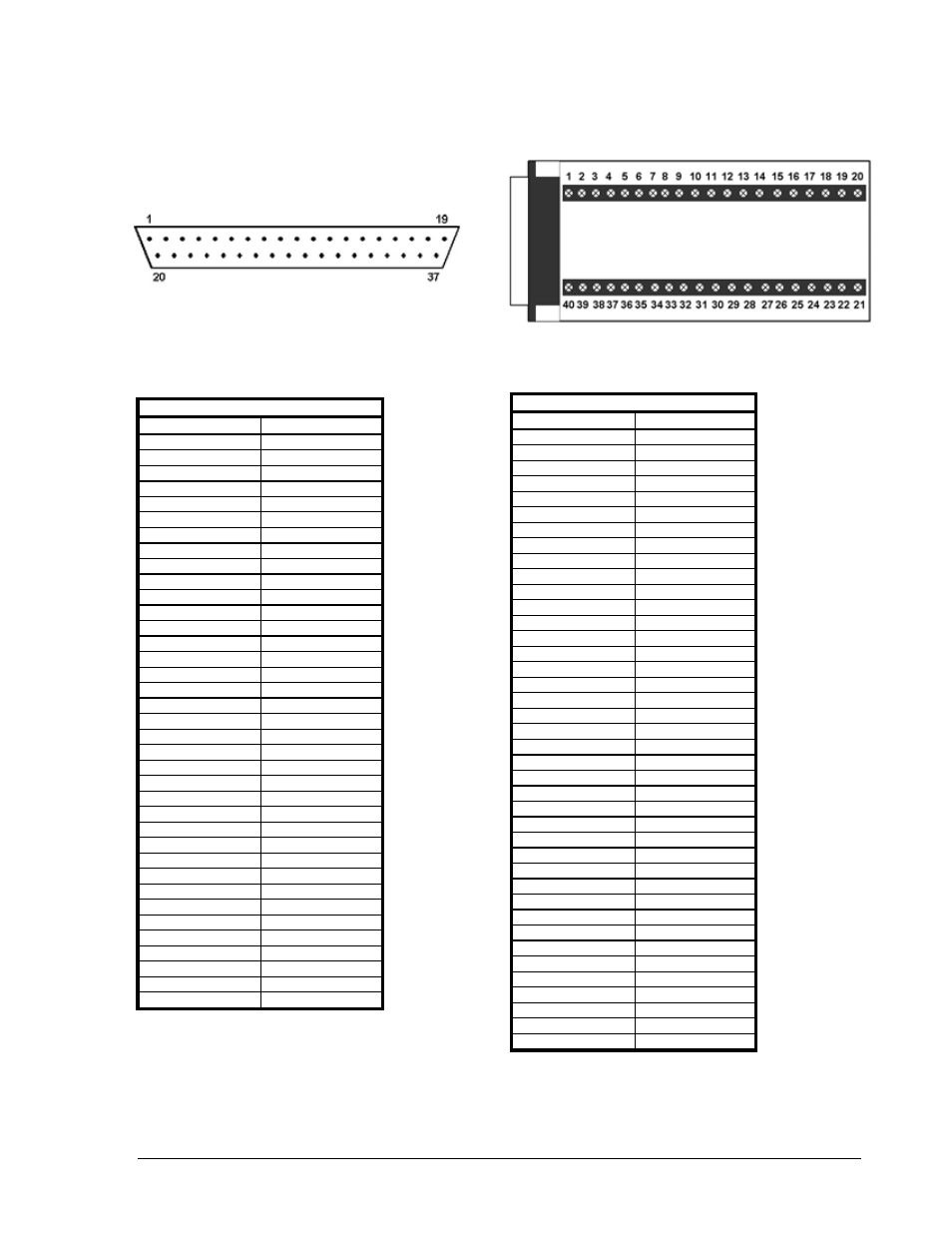

EDVR16D3 model:
D-SUB 25 pin female connector (DVR)
P164D00100
Alarm
extension
board
(HOST)
DVR
PIN #
NAME
1 GND
2 ALMIN
1
3 ALMIN
2
4 ALMIN
3
5 ALMIN
4
6 ALMIN
5
7 ALMIN
6
8 ALMIN
7
9 ALMIN
8
10 ALMIN
9
11 ALMIN
10
12 ALMIN
11
13 ALMIN
12
14 ALMIN
13
15 ALMIN
14
16 ALMIN
15
17 ALMIN
16
18 GND
19 GND
20 ALM_NC1
21 ALM_NO1
22 ALM_COM1
23 ALM_NC2
24 ALM_NO2
25 ALM_COM2
26 ALM_NC3
27 ALM_NO3
28 ALM_COM3
29 ALM_NC4
30 ALM_NO4
31 ALM_COM4
32 ALMRST
33 REC_IN
34 SPARE_IN
35 DISK_FULL
36 SPARE_OUT
37 GND
HOST
PIN #
NAME
1 GND
2 ALMIN
1
3 ALMIN
2
4 ALMIN
3
5 ALMIN
4
6 ALMIN
5
7 GND
8 ALMIN
6
9 ALMIN
7
10 ALMIN
8
11 ALMIN
9
12 ALMIN
10
13 GND
14 ALMIN
11
15 ALMIN
12
16 ALMIN
13
17 ALMIN
14
18 ALMIN
15
19 ALMIN
16
20 GND
21 GND
22 ALM_NC1
23 ALM_NO1
24 ALM_COM1
25 ALM_NC2
26 ALM_NO2
27 ALM_COM2
28 GND
29 ALM_NC3
30 ALM_NO3
31 ALM_COM3
32 ALM_NC4
33 ALM_NO4
34 ALM_COM4
35 GND
36 ALMRST
37 REC_IN
38 SPARE_IN
39 DISK_FULL
40 SPARE_OUT
