WATER FILTER MONITOR
www.everpure.com
Q
R
S
T
Label
Lug
U
X
6
V w
y

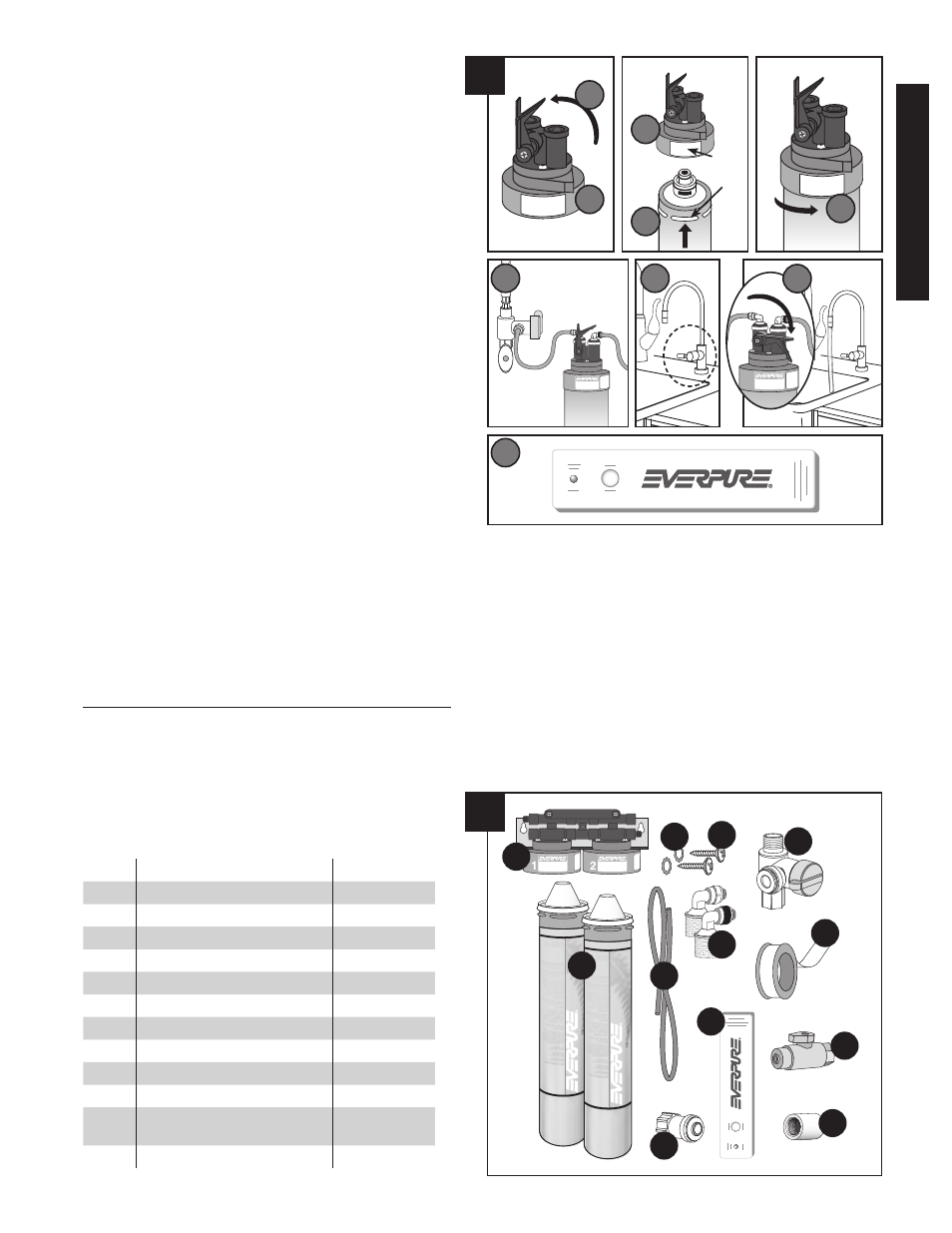

INSTALL AND FLUSH FILTER CARTRIDGE
Lift handle of the build-in shut off (QC Valve) on the
Head.
Hold Head firmly with one hand.
Align cartridge lug with label on filter Head.
Insert filter Cartridge – Push upwards.
Turn it to the right – About 1⁄4 turn – Until rotation stops.
Open Side Valve of Angle Stop Adaptor and check for
leaks up to Inlet Elbow Fitting.
Open Filtered Water Faucet.
Lower the QC Valve Handle to flush water to the sink.
NOTE: Flush new filter cartridges for at least 3 minutes
to remove air and any loose carbon. At first the water
may appear cloudy due to trapped air in the filter and
tubing. If water continues to be cloudy for more that one
week, please contact Everpure Technical Services for
assistance.
Remove plastic wrapper and pull Tab from back of
Everpure Filter Timer. The LED and buzzer will cycle 3
times to confirm the start. It is programmed to flash/
sound again in 11 months. Remove adhesive backing and
mount Timer in a convenient location under the sink.
6.
Q.
R.
S.
T.
U.
V.
W.
X.
Y.
H-1200 INSTRUCTIONS
Tools Needed For Installation
Phillips Screwdriver
Wrench
Utility Knife
Measuring Tape
Pencil
OPEN CARTON & INSPECT PARTS
Installation Parts
Key Description Part No.
1 QL Twin Series Filter Head EV9272-25
2 Filter Cartridges (Set of 2) EV9282-01
3 2 Locking Washers EV3062-04
4 2 Screws EV3061-96
5 Angle Stop Valve Adaptor EV3121-20
6 Tubing, 1/4" poly A0860119
7 Elbow Fitting Pack Restrictor EV3081-68
8 Teflon ® Tape EV3121-19
9 Faucet Connector EV3121-35
10 Everpure Filter Timer EV9075-70
11 Shut Off Valve,
3/8" John Guest x 3/8" FPT
EV3098-60
12 Coupler, 3/8" FPT Stainless EV3123-50
•
•
•
•
•
