3
Extractor
version
The hood is supplied as an extractor unit and can also be used
with a filtering function by fitting activated carbon filters (special
accessory).

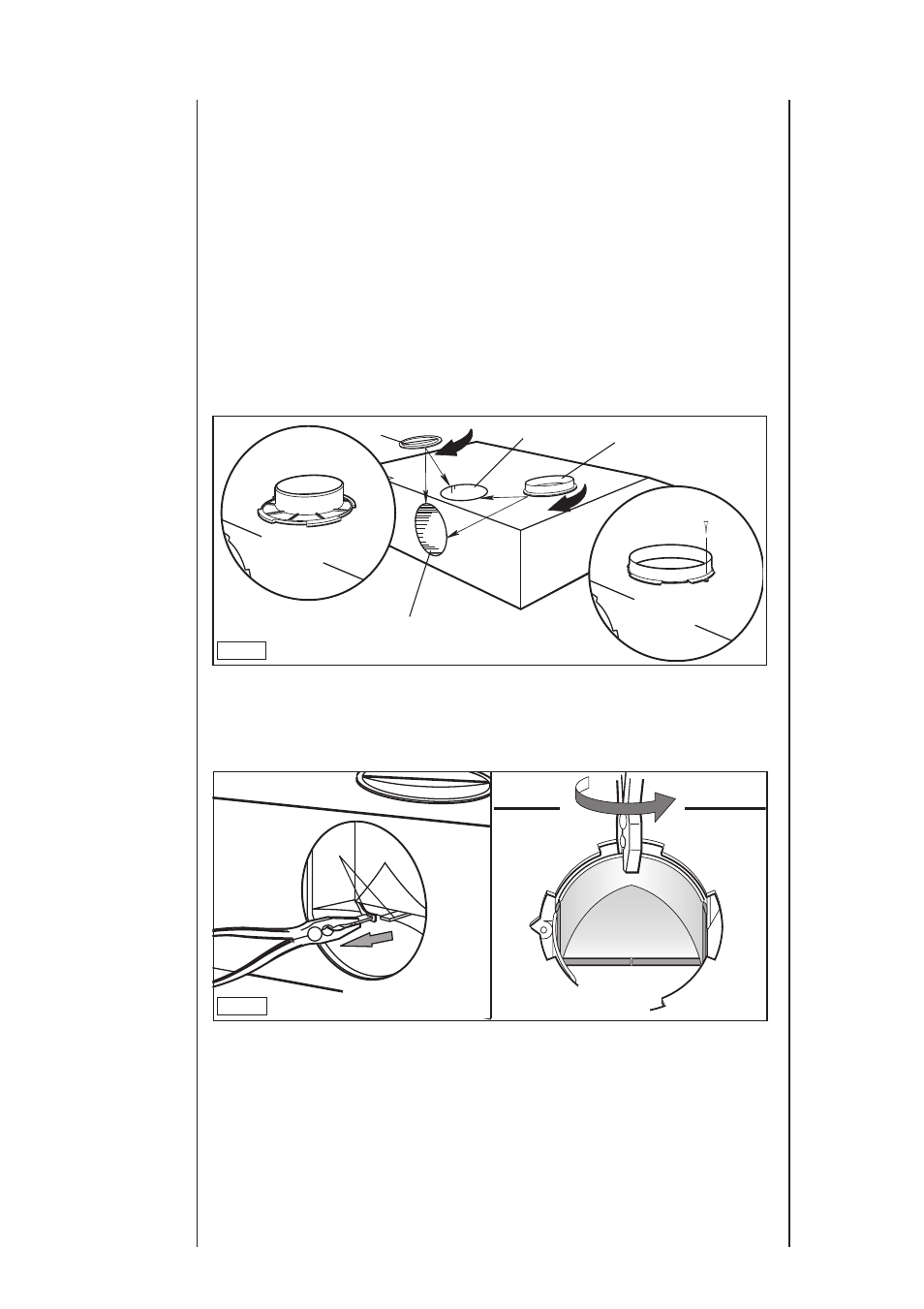

The unit features two outlet holes, one of which A is located on the
top of the unit while the other B is located on the rear.
To connect up the hose, you should first fit the bayonet-mounting
flange C (100 or 120 mm) on the outlet required (if using the top
outlet, fix the flange in place using the screw supplied as shown
in Fig. 1).
Close off the unused hole using the bayonet-fitting caps D.
If using the rear hole, open the air passage by removing the
partition (E — Fig. 2)
Move the lever F to position A — Fig. 3.
When connecting up the hood using a telescopic wall pipe,
you should use a non-flammable outlet hose No. E 647 000
012 or 647 000 010 (120 mm Ø or 100 mm Ø) from our
range of special accessories.
Introduction
1
¯ 100 mm
¯ 120 mm
C
A
B
D
2
E
Top
outlet hole Rear
outlet hole
