Wall
mounting
— Position the template on the wall.
— Drill four 8 mm Ø holes in the wall, 2 in points H and 2 in points
I.
— Fit the four 8 mm screw anchor plugs in the wall.
— Screw two 5 x 45 mm screws in points H but do not tighten
them fully home.
— Adjust the unit so that it is positioned at a right angle to the wall
by turning the two support screws G.
— Now hang the hood on the wall (holes H). Tighten the first two
screws and, for safety’s sake, screw the other two 5 x 45 mm

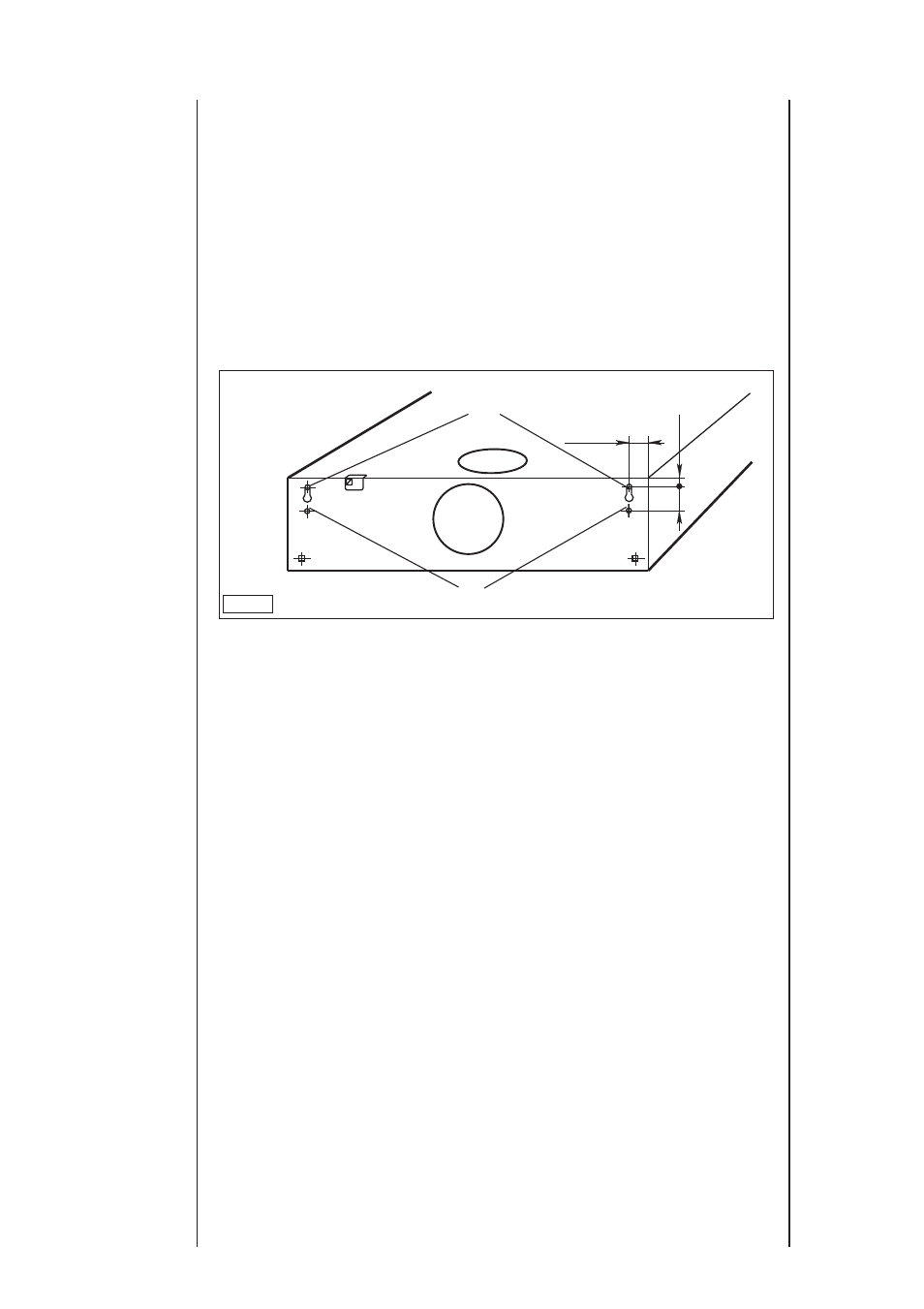

screws into the holes in the hood. — Fig. 6
