7. Screw three 60-watt (maximum) cande-
labra base bulbs into the light fitter
sockets (Figure 16).
8. Place the lower glass in the lower ring
assembly (Figure 16). Unscrew four
bracket mounting screws from the four
lower ring posts.
SOCKET
LOWER RING
ASSEMBLY
POST
LOWER RING
BRACKET
BRACKET MOUNTING
SCREW (4)
LOWER GLASS
60-WATT
CANDELABRA
BASE BULB (3)
Figure 16
To avoid possible fire or shock, make
sure that the electrical wires are
completely inside the outlet box and
not pinched between the ceiling
cover and the ceiling.
! WARNING
10

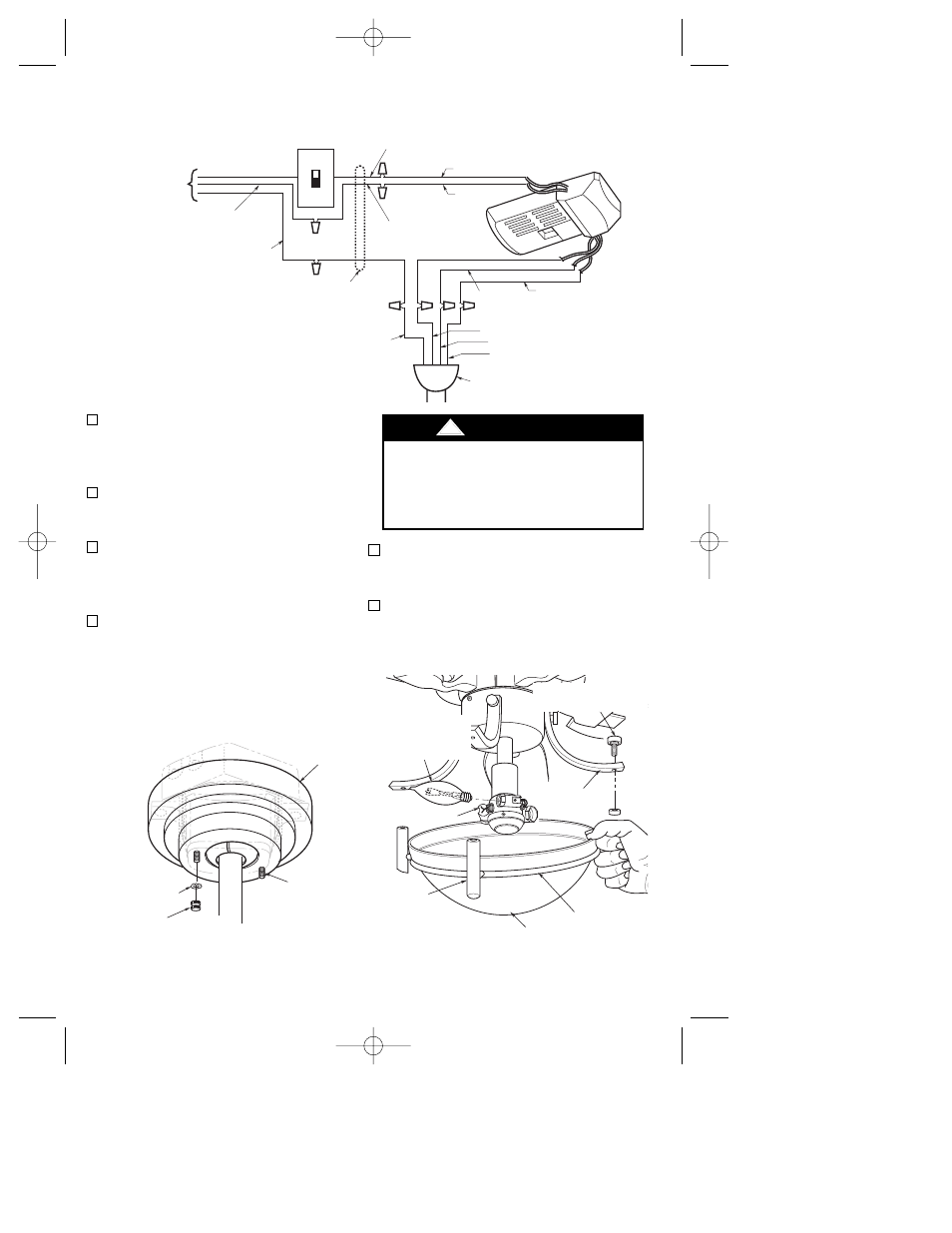

STANDARD ON-OFF WALL
SWITCH OR OPTIONAL SW113
WALL CONTROL
BLACK
BLACK
WHITE
BLACK
BLACK
WHITE
HANGER BALL
GREEN WIRE (GROUND)
FROM HANGER BALL AND
HANGER BRACKET
TWO-CONDUCTOR
CABLE (WITH
GROUND)
BLACK
(HOT)
WHITE
GROUND
TO
120-
VOLT
SUPPLY
WHITE
BLUE
WHITE BLUE
Figure 14
3. Push the wires and connectors up into
the outlet box while inserting the receiv-
er fully into the hanger bracket. Position
the antenna wire on top of the receiver.
4. Screw the two 1-1/4” threaded studs
(supplied) into the tapped holes in the
hanger bracket (Figure 13).
5. Lift the ceiling cover up to the threaded
studs and turn until the studs protrude
through the holes in the ceiling cover
(Figure 15).
6. Secure the ceiling cover in place by
sliding lockwashers (supplied) over the
threaded studs and installing the two
knurled knobs (supplied). (Figure 15).
Tighten the knurled knobs securely
until the ceiling cover fits snugly against
the ceiling.
THREADED
STUD (2)
CEILING
COVER
KNURLED
KNOB (2)
LOCKWASHER
(2)
Figure 15
