(3) Speaker connections
Before Connecting
This DVD Receiver is designed to reproduce optimum sound quality when the supplied speakers are used. If you
wish to connect other speakers to the system instead of the supplied speakers, they should be 4 ohms
impedance.
Maintain correct polarity when connecting speakers (colored wire for positive and black wire for negative).
To prevent damage to circuits, never short-circuit the positive and negative speaker output terminals.

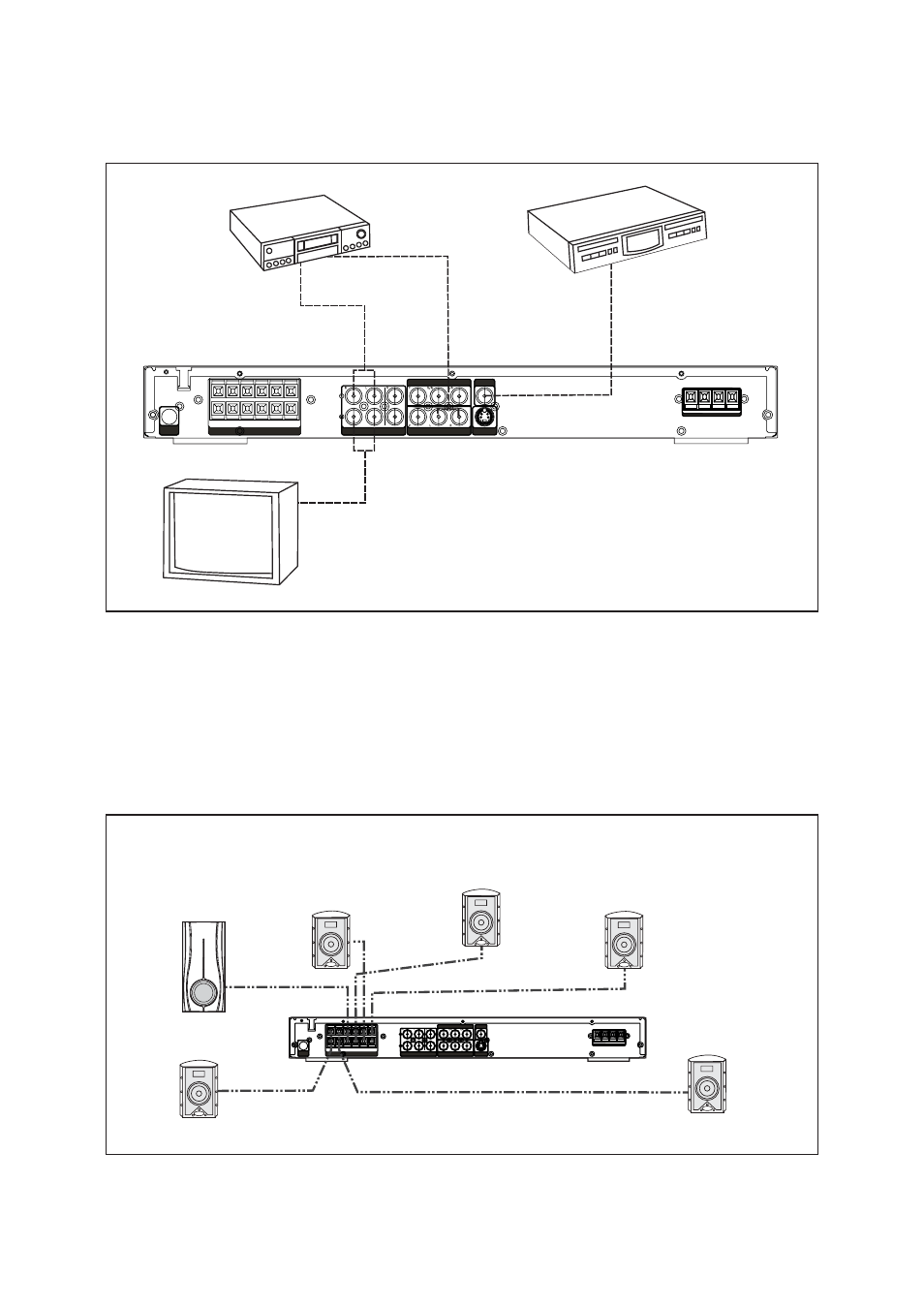

(2) Audio Connections
VCR
AUDIO IN
VCR
AUDIO IN
VCR
AUDIO OUT
VCR
AUDIO OUT
TV AUDIO OUT TV AUDIO OUT
Example: EXTERNAL DECODER
(OPTIONAL)
Example: EXTERNAL DECODER
(OPTIONAL)
COAXIAL IN COAXIAL IN
1
FRONT LEFT
SPEAKER
2
FRONT RIGHT
SPEAKER
4
SURROUND
LEFT SPEAKER (Rear)
5
SURROUND
RIGHT SPEAKER (Rear)
3
CENTER
SPEAKER (Front)
SUBWOOFER
(Can be placed
anywhere in the room)
