Electro-Voice ®

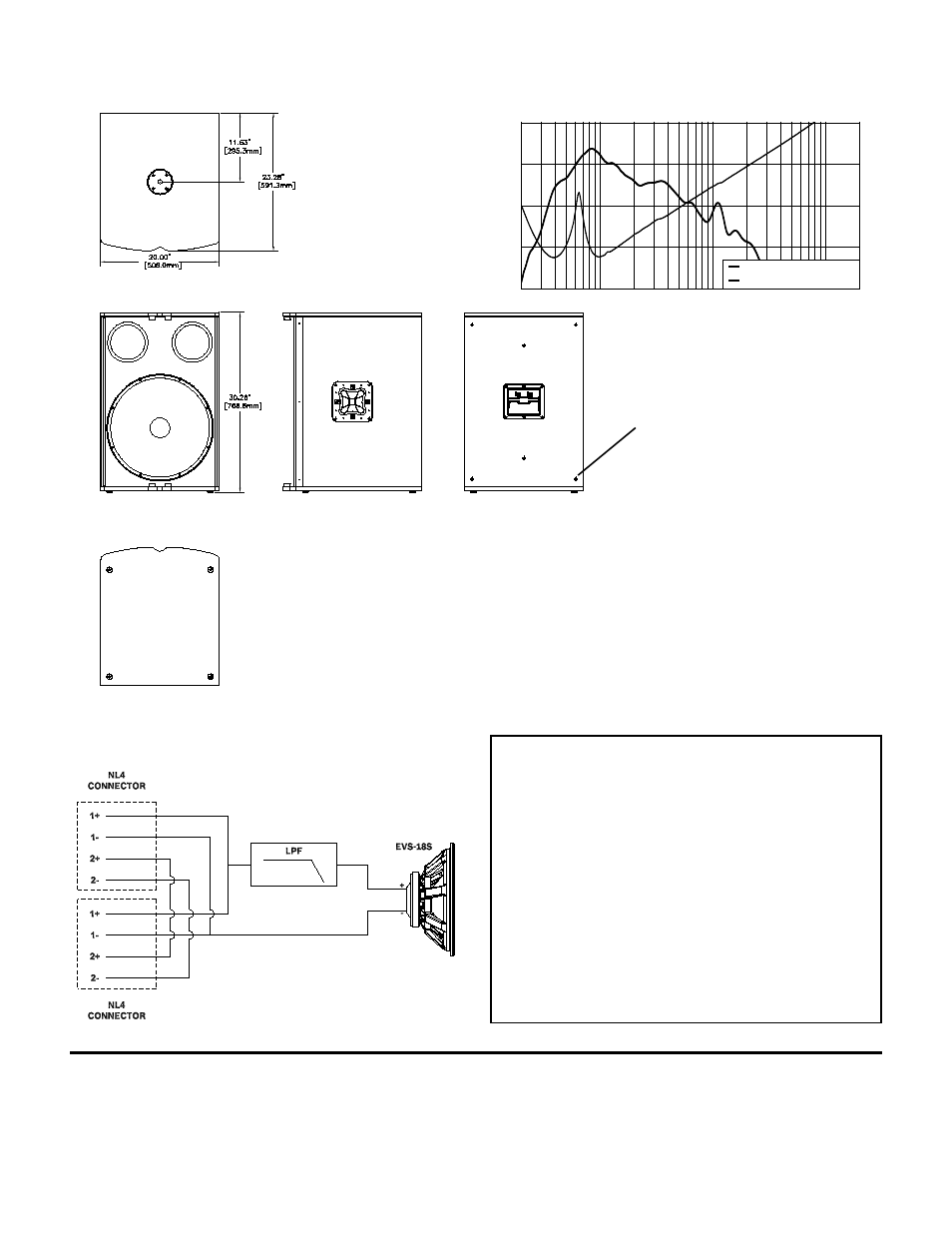

Dimension Drawings:
Block Diagram:
Frequency Response & Impedance:
Top View
Front View
Bottom View
Right View
TX1181 Part Numbers
PRD000142-001 TX1181, Single 18” Sub, Black Finish •
Performance Match
PRD000138-001 TX1122, Single 12” Two Way, 90° x 50° •
Full-Range, Black Finish
PRD000139-001 TX1152, Single 15” Two Way, 60° x 40° •
Full-Range, Black Finish
D170401 CP4000S, 120V Power Amplifier, 2 x 1400W •
D170312 CP3000S, 120V Power Amplifier, 2 x 1100W •
D170258 CP2200, 120V Power Amplifier, 2 x 800W •
PRD000043-001 DC-One, 120V Digital Loudspeaker Controller •
Accessories
301397-135 PCL35, Steel Threaded Subwoofer Pole, •
Black
ACC000043-000 TX-W1, Wheel Kit for TX1181 and TX2181, •
Black
Rear View
20000 10000 1000 100 50 20
316
100
10
3.16 70
80
90
100
110
Frequency (Hz)
Sensitivity (dB)
Impedance (Ohms)
Frequency Response, Half Space
Impedance
(6) Mounting Points
for Optional TX-W1
Wheel Kit
