Opti RGB / Opti RGB WH
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free (866) 245-6726
COLORS
• Total of 24 L.E.D.s (8 red, 8 green, 8 blue)
• Full RGB color mixing
• Manual control of colors for static color option
PHOTOMETRICS
Optional 45° beam angle lens kit available
(part no. OptiRGB 45D Kit)
RGB
COLOR MIXING
R (8)
15.5 FC / 124 LUX
0.5 FC / 5.6 LUX
0.3 FC / 2.9 LUX
0.2 FC / 1.9 LUX
0.1 FC / 1.6 LUX
G (8)
18.2 FC / 196 LUX
0.6 FC / 6.4 LUX
0.4 FC / 3.8 LUX
0.2 FC / 2.3 LUX
0.2 FC / 1.9 LUX
B (8)
1.4 FC / 14.6 LUX
0.1 FC / 1.6 LUX
0.1 FC / 1.3 LUX
0.09 FC / 1 LUX
0.1 FC / 0.7 LUX
RGB (24)
33.1 FC / 356 LUX
1.7 FC / 18.1 LUX
0.5 FC / 5.4 LUX
0.3 FC / 2.9 LUX
0.2 FC / 2.4LUX
Opti RGB

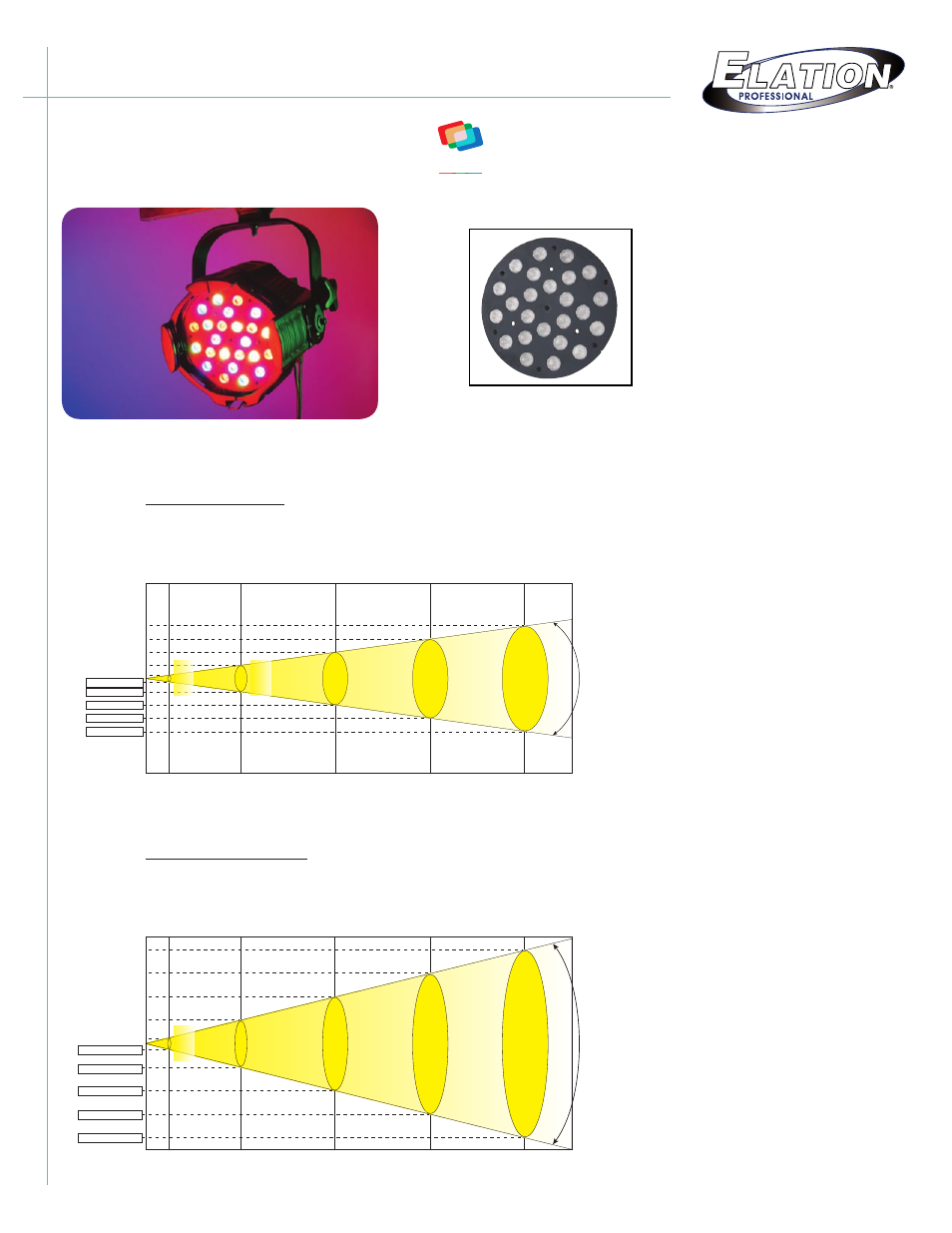

Photometric Beam Angle Data
Standard Beam Angle 15°
LUX x 0.0929 = FC
15°
Beam Angle
0 m
0 ft
1 m
3.28 ft
5 m
16.4 ft
15 m
49.5 ft
20 m
66 ft
10 m
32.8 ft
Ø 4.20 m
Ø 13.80 ft
Ø 5.24 m
Ø 17.20 ft
Beam Diameter
Ø 0.26 m
Ø 0.85 ft
Ø 1.31 m
Ø 4.30 ft
Ø 2.62 m
Ø 8.60 ft
R (8)
111 FC / 1194 LUX
3.7 FC / 39.8 LUX
1.6 FC / 17.5 LUX
0.9 FC / 10.1 LUX
0.8 FC / 8.6 LUX
G (8)
126 FC / 1358 LUX
3.9 FC / 42.5 LUX
2.4 FC / 25.7 LUX
1.4 FC / 14.6 LUX
0.9 FC / 9.5 LUX
B (8)
13 FC / 136.4 LUX
0.3 FC / 3.7 LUX
0.2 FC / 2.5 LUX
0.2 FC / 1.7 LUX
0.1 FC / 1.2 LUX
RGB (24)
217 FC / 2340 LUX
18 FC / 192 LUX
4.7 FC / 50.2 LUX
1.8 FC / 19.7 LUX
1.5 FC / 15.8 LUX
Ø 2.62m / Ø 8.60ft
Ø 4.20m / Ø 13.80ft
Ø 5.24m / Ø 17.20ft
Ø 0.26m / Ø 0.85ft
Ø 1.31m / Ø 4.30ft
Optional Beam Angle 45°
(not included)
LUX x 0.0929 = FC
45°
Beam Angle
0 m
0 ft
1 m
3.28 ft
5 m
16.4 ft
15 m
49.5 ft
20 m
66 ft
10 m
32.8 ft
Ø 11.93 m
Ø 39.14 ft
Ø 15.91 m
Ø 52.20 ft
Beam Diameter
Ø 0.80 m
Ø 2.60 ft
Ø 3.98 m
Ø 13.05 ft
Ø 7.96 m
Ø 26.12 ft
Ø 7.96m / Ø 26.12ft
Ø 11.93m / Ø 39.14ft
Ø 15.91m / Ø 52.20ft
Ø 0.80m / Ø 2.60ft
Ø 3.98m / Ø 13.05ft
