1) Pull-out panel
2) Grease filter support grid
3) Hob light
4) Fan speed selector
5) Light switch
General details
The hood is supplied as an extractor version, but may also be
used in the recirculating mode by inserting an active carbon filter
(Optional extra).
Exhaust vapours are pushed outwards by means of a pipe.
If the exhaust pipe is in a horizontal position, it must be inclined
upwards at a angle of 10° so as to guarantee better extraction.
To connect the fan hood to the wall box, we recommend the use
of venting hoses E-Nr. 697 000 012 or 647 000 010 (120 mm or
100 mm diameter) which are supplied as optional extras.

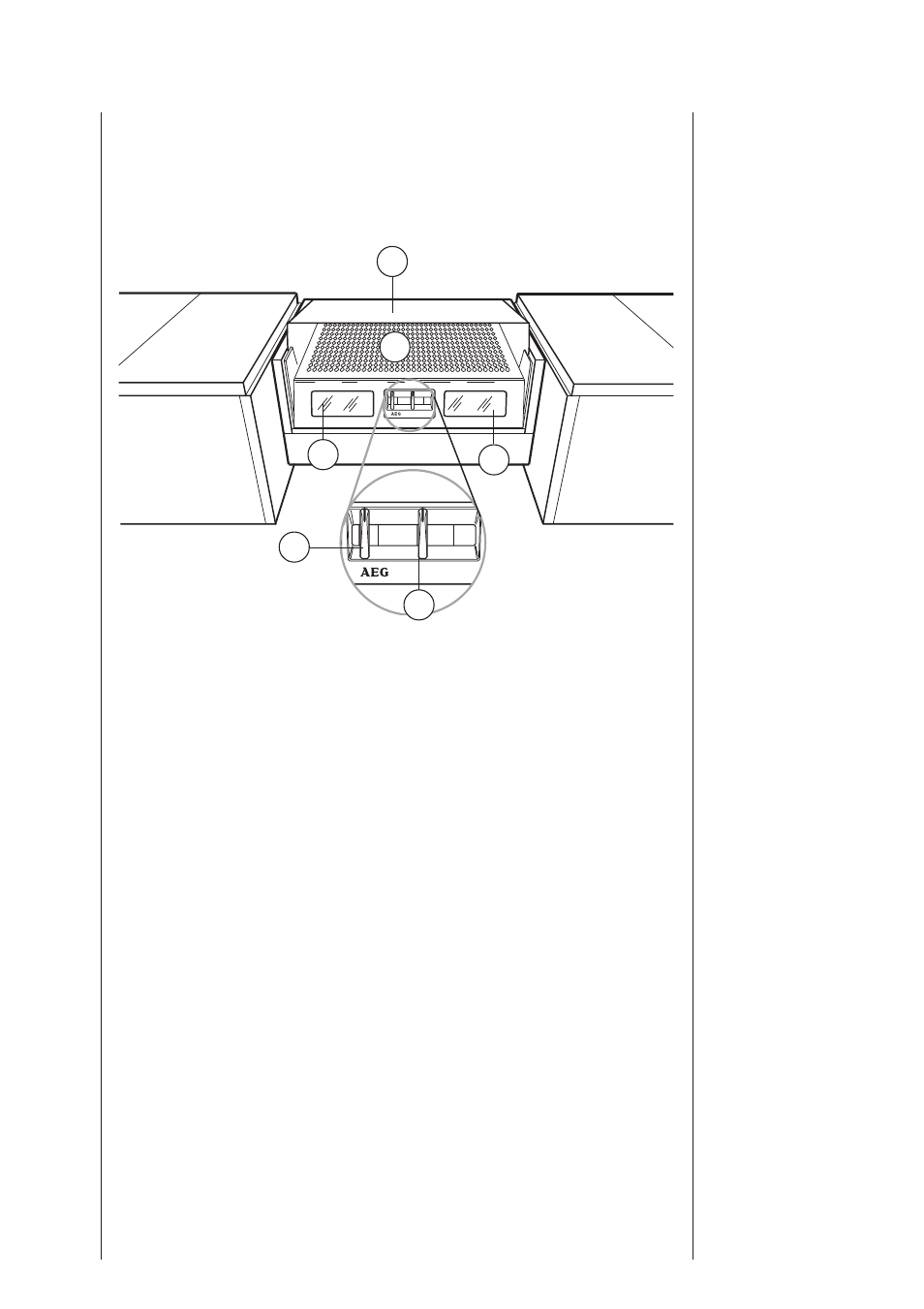

Description of the appliance
1
2
3
3
5
4
Extractor
version
