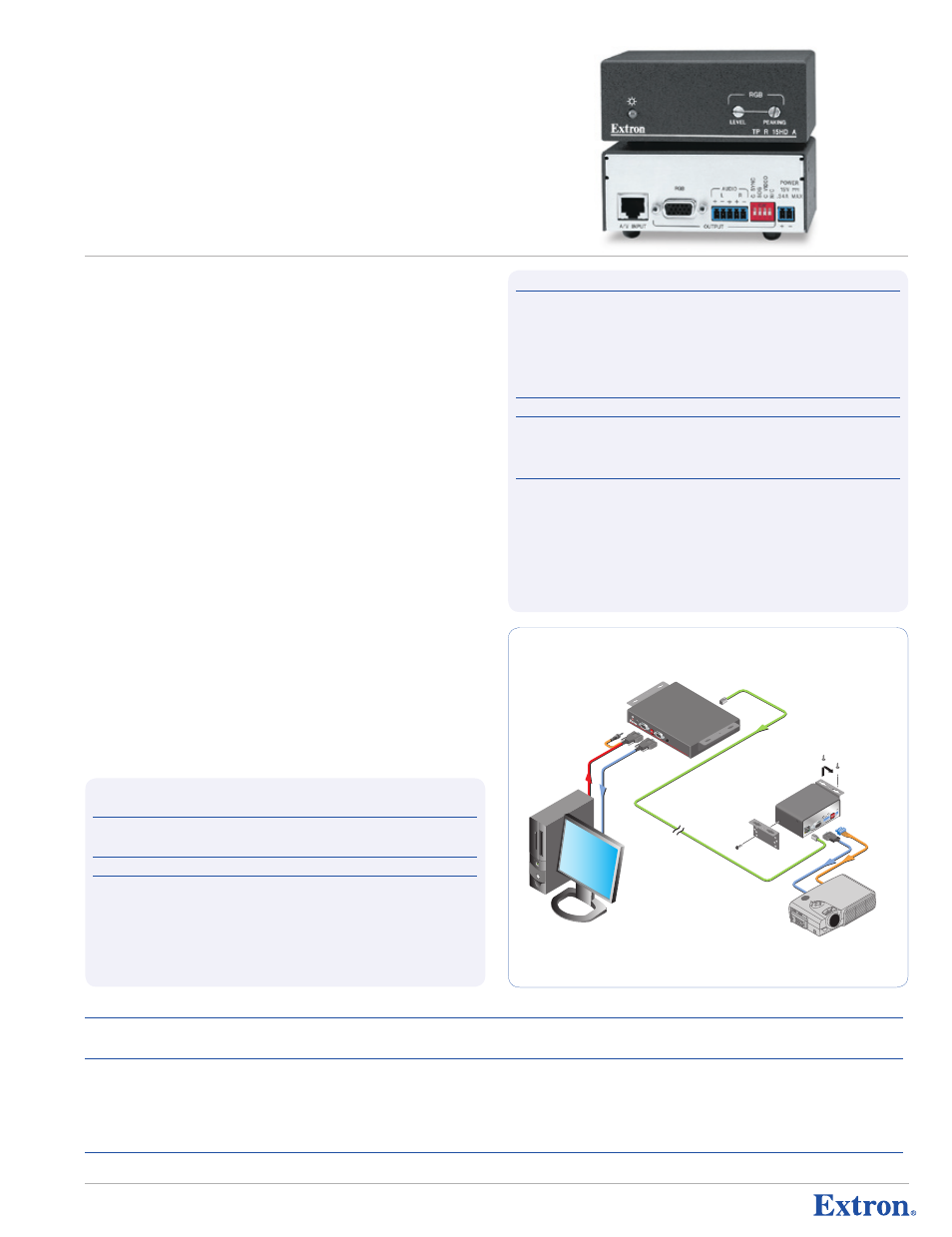

T P - T w i s T e d P a i r s e r i e s

TP R 15HD A

TP - Twisted Pair Receiver for RGBHV and Audio

FeATures

•

Input: One female RJ-45 connector

• Outputs: Female 15-pin HD connector; balanced or unbalanced stereo audio on

captive screw connector

• Receives computer video and stereo audio 600 feet (185 meters) or more over

CAT 5, 5e, or 6 UTP cable

• DDSP™ - Digital Display Sync Processing

• Two-channel stereo audio output

• Separate variable level and peaking controls

• LED power indicator on front panel

• Rack, under-desk and projector-mountable

• External universal power supply included, part # 70-057-01 — Provides w

rldwide

power compatibility.

Note: The TP R 15HD A does not support remote power. It must be powered using the included
external power supply.

descriPTion

The Extron

TP R 15HD A twisted pair video receiver accepts long distance transmissions

of computer-video, component video, S-video, or composite video with stereo audio on any
CAT 5, 5e, or 6 twisted pair cable or on Extron Enhanced Skew-Free

™

A/V UTP cable, from a

compatible Extron TP Series transmitter.

Special image enhancement features, such as manual level and peaking adjustments, give the
TP R 15HD A the ability to enrich the brightness and sharpness of the video image.

Audio

Number / Signal type . . . . . . . . . . . 1 set of analog proprietary signals

Connectors . . . . . . . . . . . . . . . . . . . . . . . 1 shielded RJ-45 female

Frequency response . . . . . . . . . . . . 20 Hz to 20 kHz, >±0.05 dB

THD + Noise . . . . . . . . . . . . . . . . . . . . . . 0.03% @ 1 kHz, 0.3% @ 20 kHz at maximum output (unweighted)

S/N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >63 dB at nominal level

Crosstalk . . . . . . . . . . . . . . . . . . . . . . . . . . <-80 dB @ 1 kHz, fully loaded

Stereo channel separation . . . . >80 dB @ 1 kHz

CMRR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >33 dB @ 20 Hz to 20 kHz

Audio inPuT

REFER TO THE TP TRANSMITTERS FAMILY MANUAL, PART #68-546-02

Audio ouTPuT

Number / Signal type . . . . . . . . . . . 1 stereo audio balanced/unbalanced

Connectors . . . . . . . . . . . . . . . . . . . . . . . (1) 3.5 mm, 5-pole captive screw connector per input

Impedance .. . . . . . . . . . . . . . . . . . . . . . . 50 ohms unbalanced, 100 ohms balanced

Maximum level (600 ohm) . . . . . >+11.5 dBm, balanced at 1% THD+N

GenerAl

External power supply . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, external, autoswitchable;

to 15 VDC, 0.8 A, regulated

Power input requirements . . . . . 15 VDC, 0.34 A (maximum)

Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional VersaTools 1U rack shelf, part #60-190-20 or optional

standard 1U rack shelf, part #60-190-01. Also, projector mountable with
optional mounting kit, part #70-217-01 or under-furniture mountable with
optional mounting brackets, part #70-212-01.

Enclosure type . . . . . . . . . . . . . . . . . . . Metal

Enclosure dimensions . . . . . . . . . . 1.6" H x 4.25" W x 3.0" D (1U high, quarter rack wide)

4.1 cm H x 10.8 cm W x 7.6 cm D (Depth excludes connectors.)

Product / Shipping weight . . . . . 0.4 lbs (0.2 kg) / 2 lbs (1 kg)

sPeciFicATions

Video

Number / Signal type . . . . . . . . . . . 1 set of proprietary analog signals

Connectors . . . . . . . . . . . . . . . . . . . . . . . 1 shielded RJ-45 female

Video inPuT

REFER TO THE TP TRANSMITTERS FAMILY MANUAL, PART #68-546-02

Video ouTPuT

Number / Signal type . . . . . . . . . . . 1 analog RGBHV, RGBS, RGsB, component video, or S-video; or

1 S-video and 1 NTSC/PAL/SECAM composite video from a single source; or
3 NTSC/PAL composite video from a single source

Connectors . . . . . . . . . . . . . . . . . . . . . . . (1) 15-pin HD female

Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of component video and S-video, and for composite video

0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video

Minimum / Maximum levels .. . 0.3 V to 1.45 Vp-p

Impedance .. . . . . . . . . . . . . . . . . . . . . . . 75 ohms

Model

Version descriPTion

PArT #

TP R 15HD A

RGBHV & Audio Receiver - 15HD

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60-450-01

coMPATible TrAnsMiTTers

Model descriPTion

PAGe

PArT #

TP T 15HD A

TP - Twisted Pair Transmitter for RGBHV and Audio

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

page 97

60-345-02

TP T 15HD AV

TP - Twisted Pair Transmitter for RGBHV, Composite Video, and Audio

. . . . . . . . . .

page 100

60-346-03

TP T 15HD 45

TP - Twisted Pair Transmitter for RGBHV - 45 mm Mount Version

. . . . . . . . . . . . . . . . .

page 98

60-654-01

TP T A 45

TP - Twisted Pair Transmitter for Stereo Audio - 45 mm Mount Version

. . . . . . . . .

page 98

70-368-01

included Accessories

Model descriPTion

PAGe

PArT #

EPS 1508 B

Extron Desktop Power Supply - 15VDC, 800mA, wire

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

page 694

70-057-01
