Mounting under cupboard

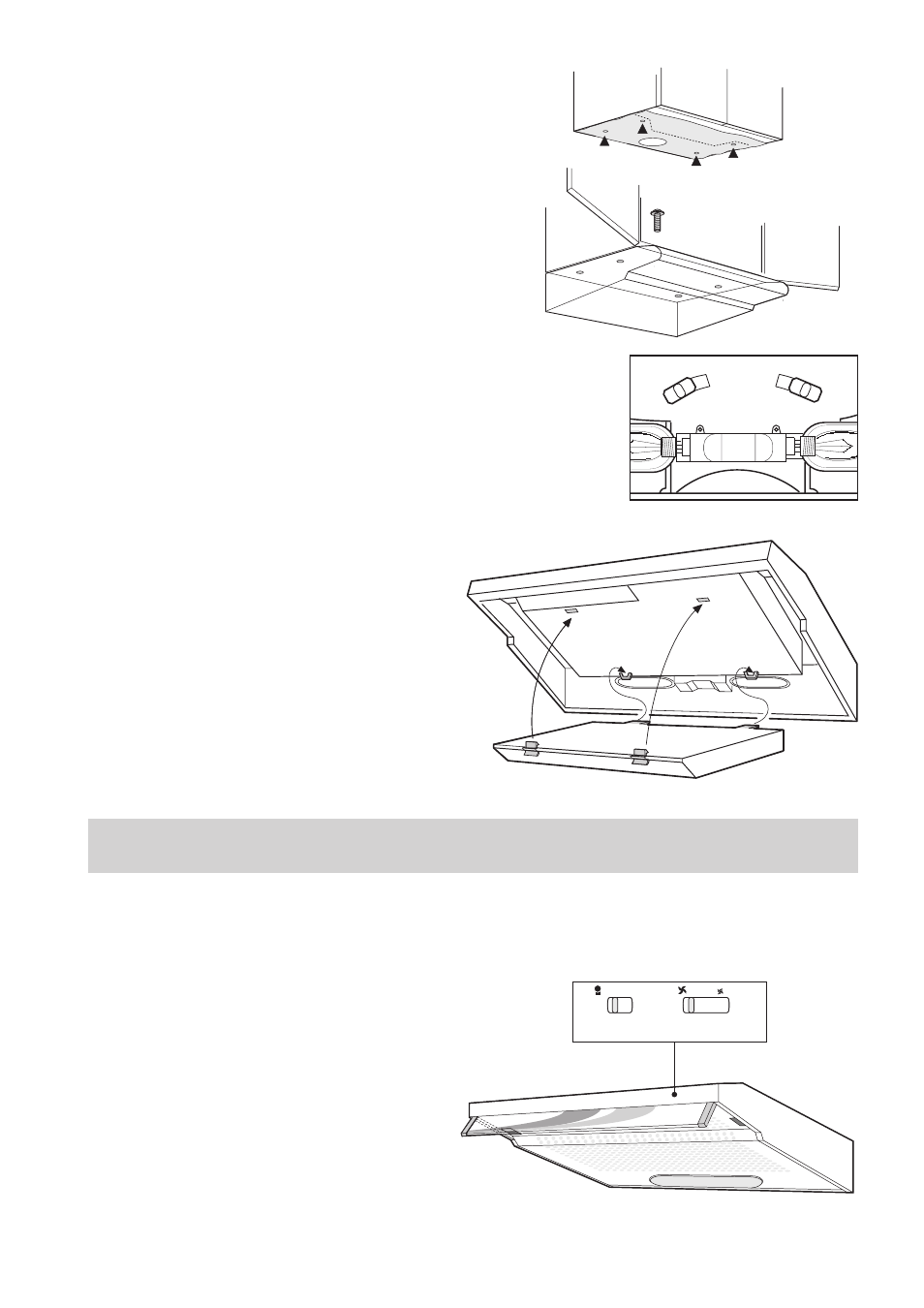

l Make the holes on the bottom of the cupboard,
using the drilling template (Fig. 7).
l From inside the cupboard, insert the 4 supplied
screws and tighten them in the appropriate holes
on the appliance.
Exhausting mode
l Connect the air outlet to the smoke exhaust hose
l Open the suction grid (Fig. 12).
l Remove the carbon filter: push the hooks C and
pull the filter downwards (Fig. 9).
l Check that the selection lever for evacuation/
recycle is in the position A - external evacua-
tion. (Fig. 8).
l Refit the suction grid.
Recirculation mode (with carbon
filter)
The air outlets D (Fig. 2) must be shut.
l Open the suction grid (Fig. 12).
l Check that the selection lever for evacuation/
recycle is in the position : F - recycle (Fig. 8)
l Check if carbon filter is already mounted and if
not, fit carbon filter first rearwards on the proper
seats.
l Then fix frontwards the carbon filter using
hooks C (Fig. 9)
Using the hood
Speed regulation
The hood has a three speed motor regulated with a
slide switch plus a position for intensive operation.
For the best performance, we recommend using the
highest speed in particular cases of strong odour
and vapour concentration.
We recommend starting up the hood a few minutes
before cooking and keeping it running until all the
odours have been eliminated.
